SAIL-M12GM12G-4-6.3U
SAIL-M12GM12G-4-6.3U
Dimensioned drawing
Male, straight
SAIL-M12GM12G-4-6.3U
Dimensioned drawing
Straight socket
SAIL-M12GM12G-4-6.3U
Pole scheme
Male
SAIL-M12GM12G-4-6.3U
Pole scheme
Socket
SAIL-M12GM12G-4-6.3U
Wiring diagram

SAIL-M12GM12G-4-6.3U

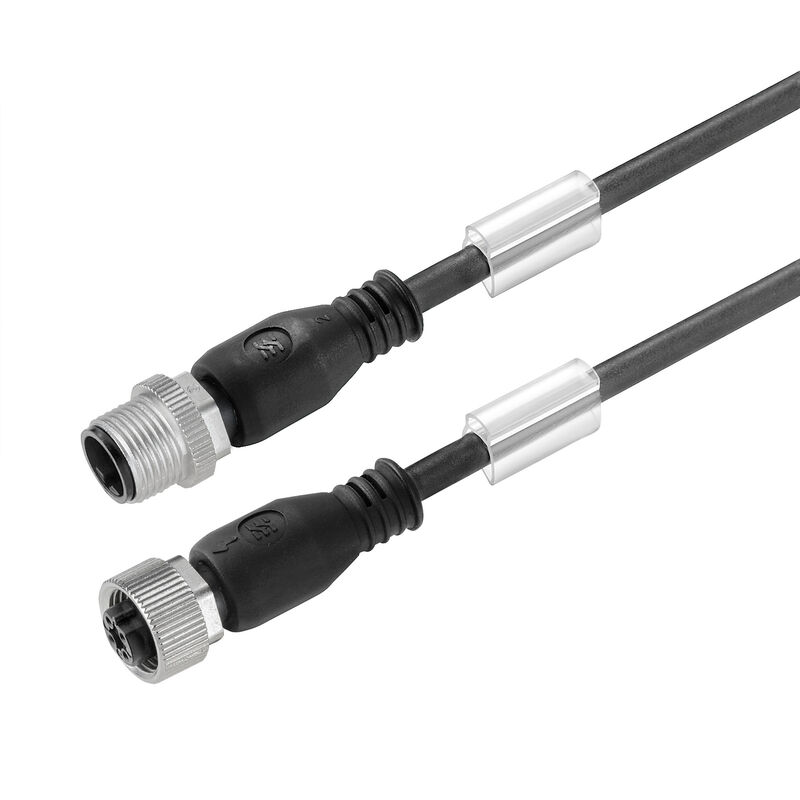

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 6.3 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Produkt ID 1906300630
Download datablad Engineering Support Product Downloads
Anvendte produkter 69
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties Standards Plug, left Plug, right Product images Classifications

Approvals

Schválení
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Verze
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 6.3 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1906300630
Art
SAIL-M12GM12G-4-6.3U
GTIN (EAN)
4050118620542
Qty.
1 Styk

Dimensions and weights

Net weight
184,8 g

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

PP
Acceleration
5 m/s²
Bending cycles
12 Mio
Bending cycles at torsion
> 5 Mio.
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Cable length
6,3 m
Colour coding
brown
white
blue
black
Configurable cable length
Yes
Core cross-section
0,34 mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Halogen
No
Hydrolysis and microbe resistant
Yes
Irradiation crosslinked
No
LABS-free
Yes
Length of torsion
1 m
Number of poles
4
Number of wires
4
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Outside diameter
4.1 mm + 0.15 mm
Resistance to oils
Yes
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
black (similar to RAL 9005)
Shielded
No
Speed
3,33 m/s
Suitable for cable carriers
Yes
Temperature range, moving
-25...60 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
180 °/m
Welding spark resistance
No

General technical data

Cykle wpinania
≥ 100
LED
No
Matériau de base du boîtier
PUR
Nominal current
4 A
Resistenza d'isolamento
108 Ω
Rosca de conexión
M12 / M12
Shock and vibration proof according to
Section B
Stopień ochrony
IP65
IP66
IP67
IP68
when screwed in
IP69
Stopień zanieczyszczenia
3
Surface du contact
Gold-plated
Temperature range of housing
-25…+85 °C
Változat
pin, straight - socket, straight
zmostkowany
No
Материал резьбового кольца
Diecast zinc
공칭 전압
250 V

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
250 V

Standards

Shock and vibration proof according to
Section B

Plug, left

Plug left
M12, A-coded, IP69, male contact, straight, Plastic, unshielded

Plug, right

Plug right
M12, A-coded, IP69, female contact, straight, Plastic, unshielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
