SAIL-M12W-T-3.0P
SAIL-M12W-T-3.0P
Dimensioned drawing
SAIL-M12W-T-3.0P
Pole scheme
Plug
SAIL-M12W-T-3.0P

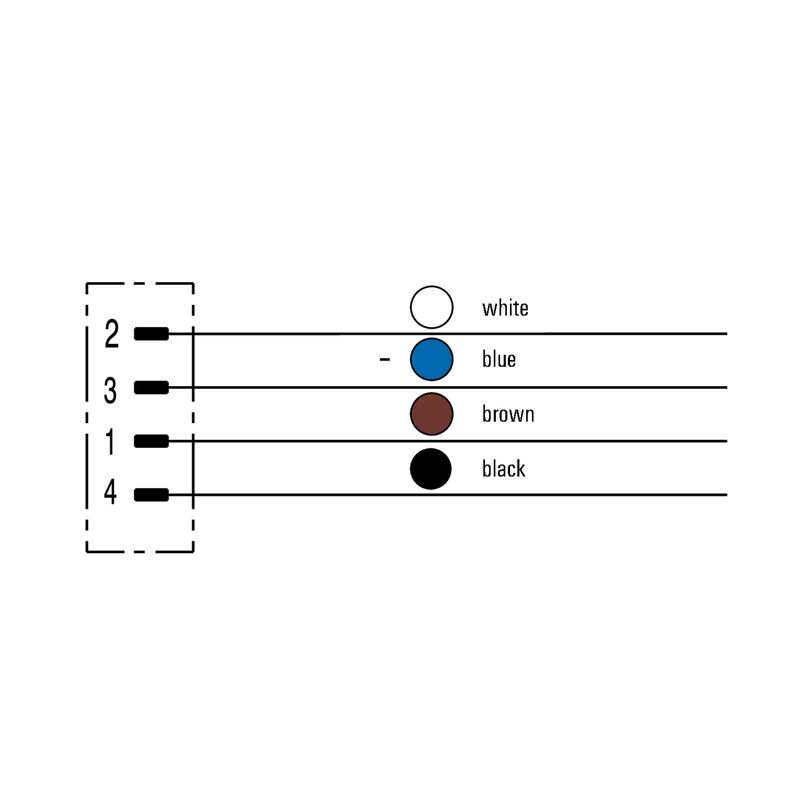

Wiring diagram
SAIL-M12W-T-3.0P
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12W-T-3.0P

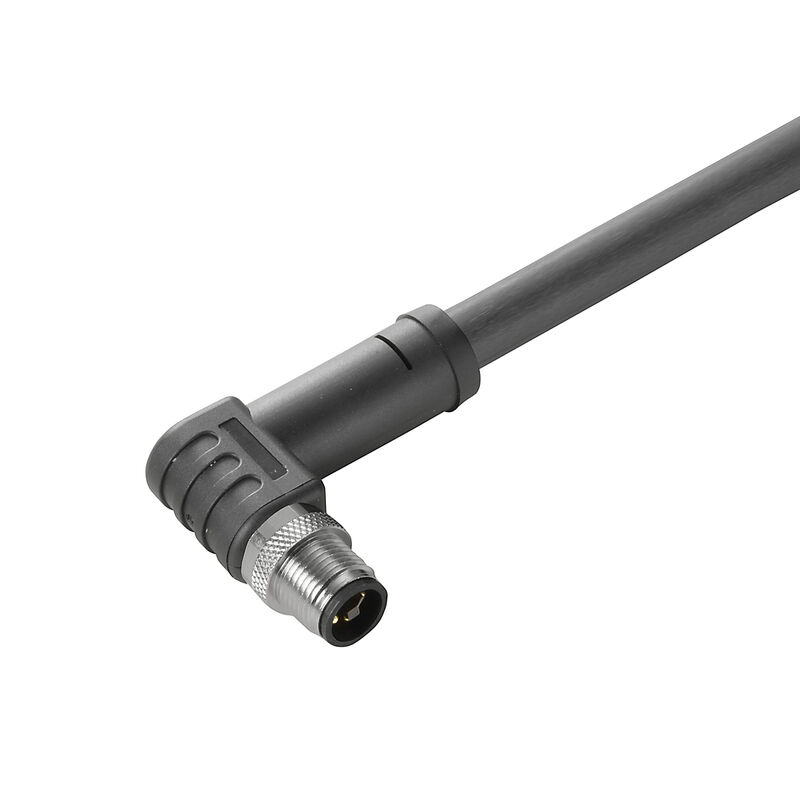

Power cable, One end without connector, M12, Number of poles : 4, 3 m, pin, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Produkt ID 2050650300
Download datablad Engineering Support Product Downloads
Anvendte produkter 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E310075

General ordering data

Version
Power cable, One end without connector, M12, Number of poles : 4, 3 m, pin, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
2050650300
Type
SAIL-M12W-T-3.0P
GTIN (EAN)
4050118441765
Qty.
1 Styk

Dimensions and weights

Net weight
200 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Technical specifications for cable

Accélération
5 m/s²
Apantallado
No
Apto para cadena de arrastre
Yes
Bestrålning tvärbunden
No
Color de revestimiento
black
Colour coding
black
blue
white
brown
Hajlítási ciklusok
10 Mio
Halogen
No
Isolation
PP
Longitud de cable
3 m
Number of poles
4
Outside diameter
9.6 mm ± 0.3 mm
Rayon de courbure, min., fixe
4 x cable diameter
Rayon de courbure, mobile
7.5 x cable diameter
Resistant to welding beads
No
Sección del conductor
1,5 mm²
Sheath material
PUR
Temperature range, moving
-40...90 °C
Temperature range, stationary
-50...90 °C
Velocità
5 m/s
Welding spark resistance
No
Zewnętrzna okładzina zgodnie z UL AWM style
20234 (80 °C / 1000 V)
구성 가능 케이블 길이
No

General technical data

AF size
13 mm
Coding
T-coded
Connection thread
M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
LED
No
Nominal current
12 A
Nominal voltage
63 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
when screwed in
Temperature range of housing
-40 … +85 ° C
Tightening torque
M12: 1.0 Nm
Version
pin, 90°

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
63 V

General standards

Conector norma
IEC 61076-2-111
N.º de certificado (cULus)
E310075

Standards

Conector norma
IEC 61076-2-111

Plug, left

Plug left
M12, T-coded, IP67, male contact, angled 90°, Plastic, unshielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
