SAIP-M12BG-4-2.0U
SAIP-M12BG-4-2.0U
Dimensioned drawing
Straight socket
SAIP-M12BG-4-2.0U
Pole scheme
Socket
SAIP-M12BG-4-2.0U
Wiring diagram
SAIP-M12BG-4-2.0U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIP-M12BG-4-2.0U

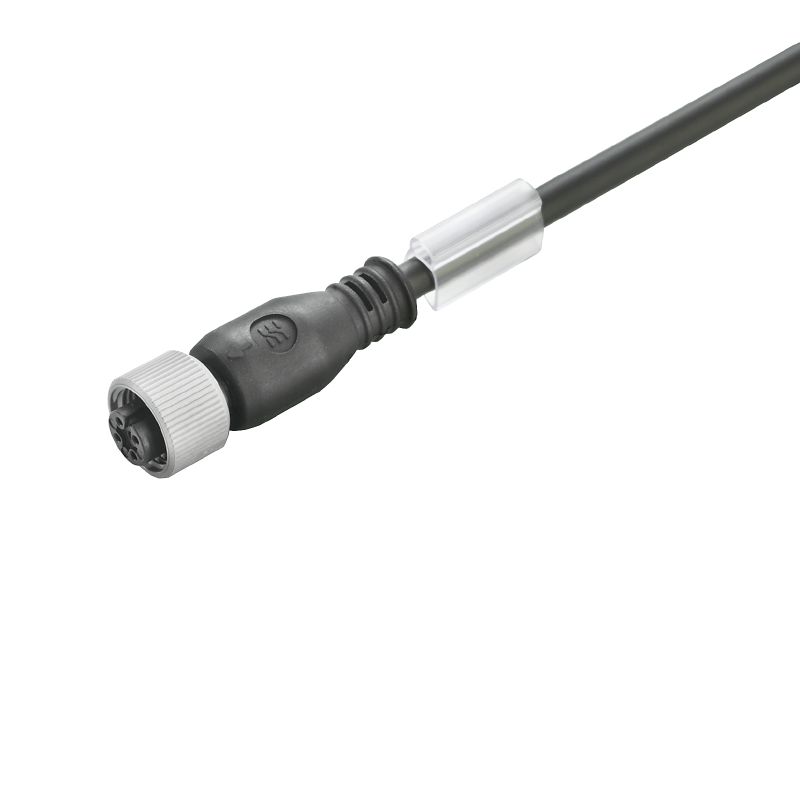

Sensor/actuator line, One end without connector, M12, Number of poles : 4, 2 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Ürün No. 1108740200
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 7 İlgili ürünler 7
Approvals General ordering data Dimensions and weights Environmental Product Compliance Dati tecnici del cavo Dati tecnici generali Electrical properties Standardy ogólne Normer Plug, left Plug, right Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
N° Certificato (cULus)
E307231

General ordering data

Versione
Sensor/actuator line, One end without connector, M12, Number of poles : 4, 2 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
N. d’ordine
1108740200
Tipo
SAIP-M12BG-4-2.0U
GTIN (EAN)
4032248924615
Qty.
1 adet

Dimensions and weights

Net weight
60,72 g

Environmental Product Compliance

Stato conformità RoHS
Compliant with exemption
Esenzione RoHS (se applicabile/nota)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Dati tecnici del cavo

Acceleration
5 m/s²
Cable length
2 m
Campo delle temperature, posa fissa
-50...80 °C
Campo delle temperature, posa mobile
-25...80 °C
Cavi ibridi
Nie
Cicli di flessione a torsione
> 5 Mio.
Codifica a colori
brun
vit
blå
svart
Core cross-section
0,34 mm²
Cycles de courbure
12 Mio
Diametro esterno
4.1 mm ± 0.1 mm
Guaina secondo UL AWM Style
20549 (80 °C / 300 V)
Halogen
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
Irradiazione con legami trasversali
No
Konfigurálható kábelhossz
No
Köpeny anyaga
PUR
LABS-free
Yes
Lunghezza della torsione
1 m
Nucleo secondo UL AWM Style
10493 (80 °C / 300 V)
Number of wires
4
Numero di poli
4
Rayon de courbure, min., fixe
5 x cable diameter
Rayon de courbure, mobile
10 x cable diameter
Resistance to oils
Yes
Resistente alle perle di saldatura
No
Resistenza alla torsione
180 °/m
Resistenza alle scintille di saldatura
No
Résistance à la flamme
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Sheathing colour
black
Shielded
No
Suitable for cable carriers
Yes
Vitesse
3,33 m/s

Dati tecnici generali

Apertura della chiave
12 mm
Campo di temperatura custodia
-25…+85 °C
Cicli di inserimento
≥ 100
Codifica
A-kodad
Coppia di serraggio
M12 (plastmutter): 0,6 - 0,8 Nm
Corrente nominale
4 A
Filettatura del collegamento
M12
Grado di lordura
3
Grado di protezione
IP65
IP66
IP67
IP68
IP69
when screwed in
LED
No
Materiale anello filettato
Plastic
Materiale base della custodia
PUR
Materiale dei contatti
Copper alloy
ponticellato
No
Resistenza d'isolamento
108 Ω
Superficie dei contatti
Gold-plated
Tensione nominale
250 V
Versione
Female socket, straight

Electrical properties

Resistenza d'isolamento
108 Ω
Tensione nominale
250 V

Standardy ogólne

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Normer

Connector standard
IEC 61076-2-101

Plug, left

Spina di collegamento a sinistra
M12, A-coded, Number of poles: 4, female contact, straight, plug, unshielded

Plug, right

Spina di collegamento a destra
Free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
