SAISWS-M-4A-6/8-M12
SAISWS-M-4A-6/8-M12

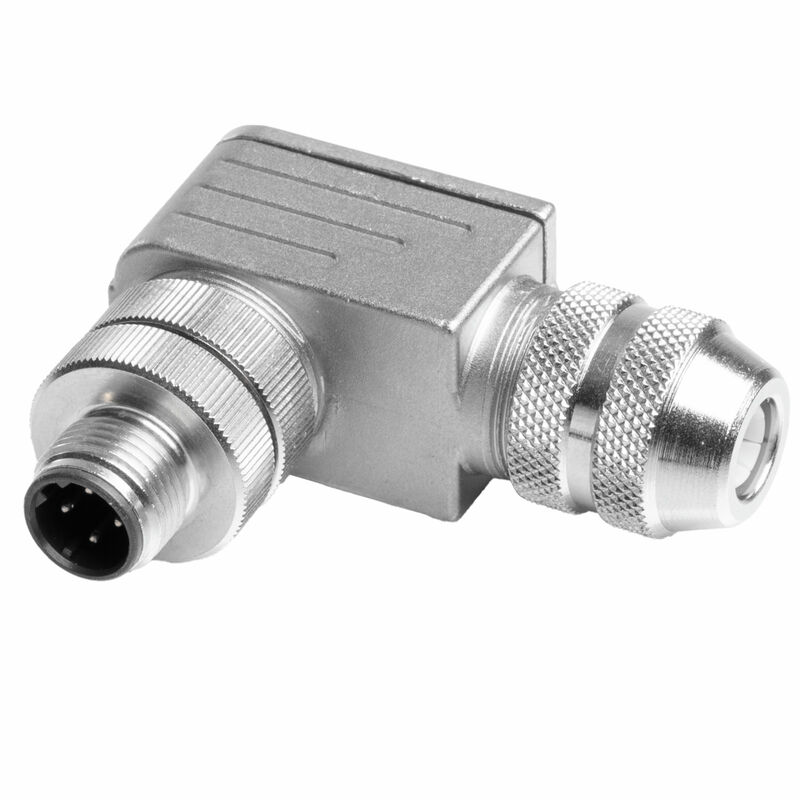

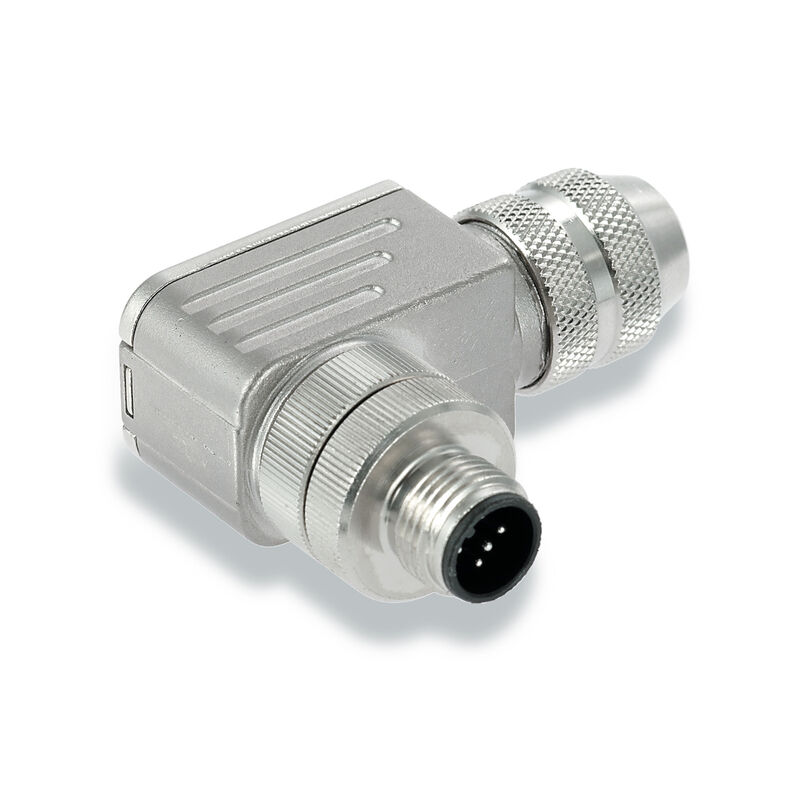

Product image
SAISWS-M-4A-6/8-M12
Pole scheme
M12 = A-coded

SAISWS-M-4A-6/8-M12

freikonfektionierbarer Steckverbinder, M12

Produkt ID 1803930000
Download datablad Engineering-support Produktdownloads
Anvendte produkter 56
Osvědčení Allgemeine Bestelldaten Dimensions and weights Umweltanforderungen Technical data customisable plug-in connectors Obecné informace Standards Clasificaciones

Osvědčení

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificat Nº (cURus)
E307231

Allgemeine Bestelldaten

Version
freikonfektionierbarer Steckverbinder, M12
Order No.
1803930000
Type
SAISWS-M-4A-6/8-M12
GTIN (EAN)
4032248260249
Qty.
1 items

Dimensions and weights

Diameter
20,2 mm
Nettó tömeg
65 g

Umweltanforderungen

RoHS Compliance Status
Konform mit Ausnahme
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
Imidazolidine-2-thione 96-45-7
SCIP
bcee35cf-c0f5-43d2-8daf-65ab0d08641a

Technical data customisable plug-in connectors

Cable diameter, max.
8 mm
Cable diameter, min.
6 mm
Coding
A-coded
Conductor cross-section, max.
0,75 mm²
Conductor cross-section, min.
0,14 mm²
Contact surface
Gold-plated
Gender of contact
Male
Housing main material
zinc diecast nickel-plated
Insulation resistance
108 Ω
LED
No
Nominal current
4 A
Nominal voltage
250 V
Number of poles
4
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
Shield connection
Yes
Temperature range of housing
-40 … +85 ° C
Threaded ring material
Tlakově litý zinek
Type of connection
Šroubové připojení

Obecné informace

Počet pólů
4
Connection 1
M12
Connection 2
Tornillo
UL 94 flammability rating
None
Housing main material
cink présöntvény nikkelezett
Filettatura del collegamento
M12
접점 표면
금도금
Przekrój przyłącza przewodu, jednodrutowego, maks. (AWG)
AWG 18
Сечение подсоединяемого провода, тонкий скрученный, мин.
0,14 mm²
Ledardiameter, fintrådig, max.
0,75 mm²
Wire cross-section, solid, min.
0,14 mm²
Wire cross-section, solid, max.
0,75 mm²
Protection degree
IP67
Plugging cycles
≥ 100

Standards

Connector standard
IEC 61076-2-101

Clasificaciones

ETIM 8.0
EC002635
ETIM 9.0
EC002635
ETIM 10.0
EC002635
ECLASS 14.0
27-44-01-16
ECLASS 15.0
27-44-01-16
