Egenskaber

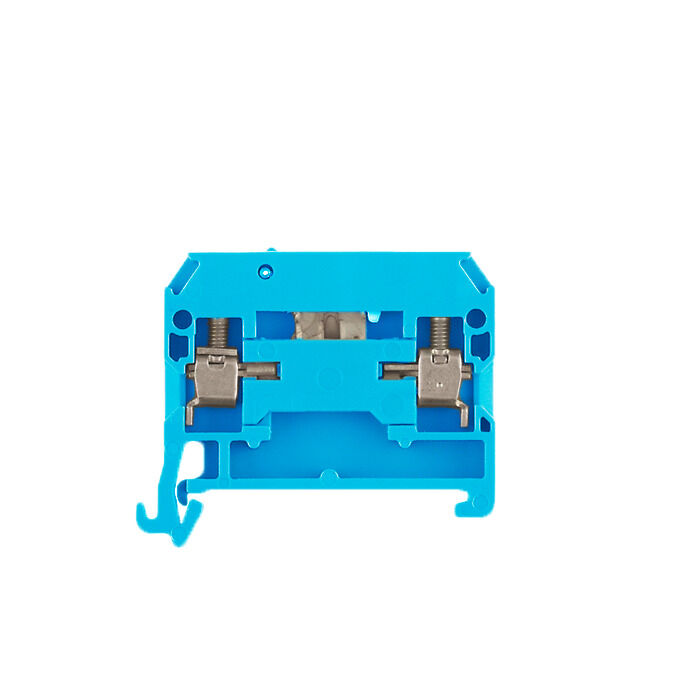

| Version | Test-disconnect terminal, Screw connection, blue, 4 mm², 10 A, 400 V, Number of connections: 2, Number of levels: 1, TS 35, V-2, PA 66 |
| Order No. | 0172180000 |
| Type | SAKR/35 BL |
| GTIN (EAN) | 4008190007843 |
| Qty. | 50 Styk |
| Alternative product | [7910190000](~/p/7910190000) |
| Depth | 40,5 mm |
| Depth (inches) | 1,594 inch |
| Height | 42 mm |
| Height (inches) | 1,654 inch |
| Width | 6,5 mm |
| Width (inches) | 0,256 inch |
| Net weight | 8,392 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | PA 66 |
| Colour | blue |
| UL 94 flammability rating | V-2 |
| Version |
Screw connection
Spacer One end without connector |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | Yes |
| PE function | No |
| PEN function | No |
| Explosion-tested version | Yes |
| Installation advice | Direct mounting |
| Number of similar terminals | 1 |
| Open sides | right |
| Type of mounting | Snap-on |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 2,5 mm² |
| Connection type, additional connection | Screw connection |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0,13 mm² |
| Clamping screw | M 3 |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 1,5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | A3 |
| Number of connections | 2 |
| Stripping length | 8 mm |
| Tightening torque, max. | 1 Nm |
| Tightening torque, min. | 0,5 Nm |
| Torque level with DMS electric screwdriver | 2 |
| Twin wire-end ferrules, max. | 1,5 mm² |
| Twin wire-end ferrules, min. | 0,5 mm² |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Certificate No. (CSA) | 12400-132 |
| Current size C (CSA) | 10 A |
| Voltage size C (CSA) | 300 V |
| Wire cross section max. (CSA) | 12 AWG |
| Wire cross section min. (CSA) | 24 AWG |
| Cross-disconnect | without |
| Integral test socket | No |
| Slitting | Pivoting |
| Installation advice | Direct mounting |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 26 |
| Rated cross-section | 4 mm² |
| Rated voltage | 400 V |
| Rated DC voltage | 400 V |
| Rated current | 10 A |
| Current at maximum wires | 10 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 1,02 W |
| Pollution severity | 3 |
| Approval/Certificate/Document of Conformity |
[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36686)
[UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284523) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_236548) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0172180000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0172180000) |
| Product Change Notification |
[Technical change - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_95658)
[Technical change - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_95659) |
| User Documentation |
[Usage of terminals in EXi atmospheres](https://mdcop.weidmueller.com/mediadelivery/asset/900_73881)
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000902 |
| ETIM 7.0 | EC000902 |
| ETIM 8.0 | EC000902 |
| ETIM 9.0 | EC000902 |
| ECLASS 9.0 | 27-14-11-26 |
| ECLASS 9.1 | 27-14-11-26 |
| ECLASS 10.0 | 27-14-11-26 |
| ECLASS 11.0 | 27-14-11-26 |
| ECLASS 12.0 | 27-14-11-26 |
| ECLASS 13.0 | 27-25-01-09 |
| ECLASS 14.0 | 27-25-01-09 |
| Approvals |     |
| ROHS | Conform |
