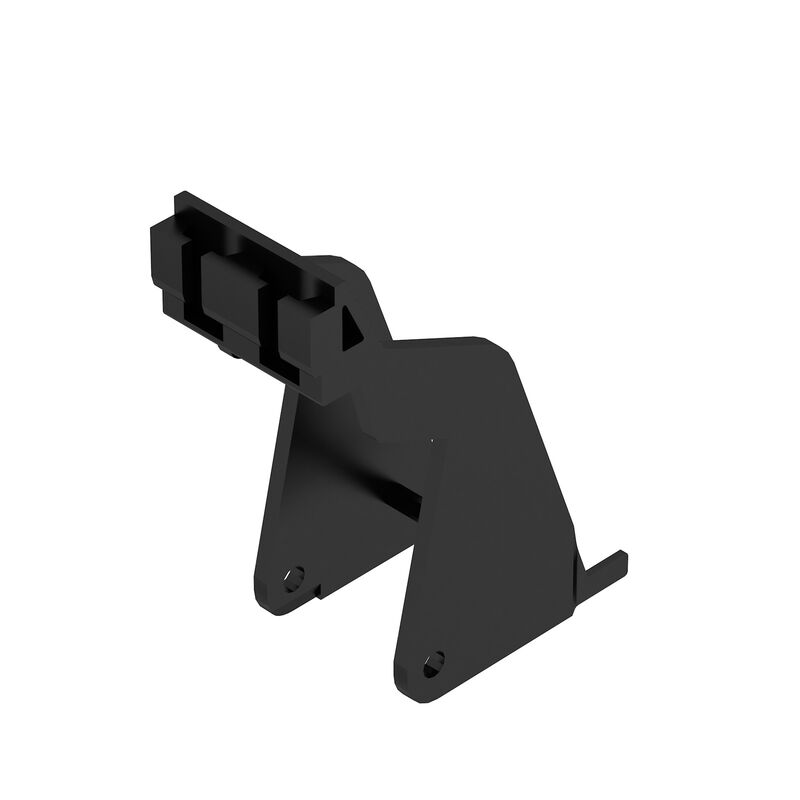

SDI CLIP P

D-SERIES DRI, Retaining clip

Produkt ID 7760056389

Egenskaber

General ordering data

Version	D-SERIES DRI, Retaining clip
Order No.	7760056389
Type	SDI CLIP P
GTIN (EAN)	6944169787539
Qty.	10 Styk

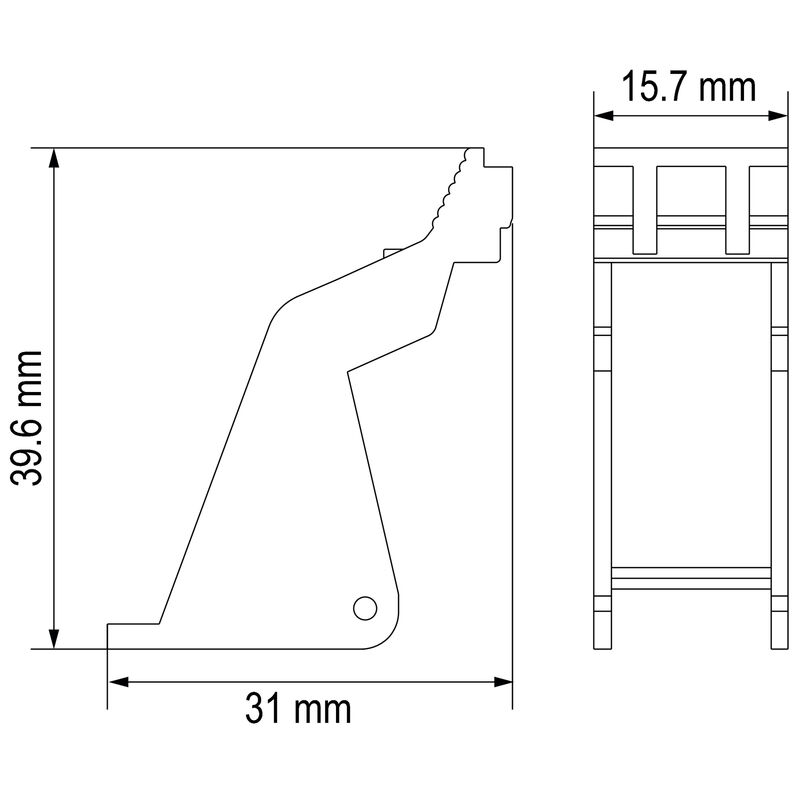

Dimensions and weights

Depth	39,6 mm
Depth (inches)	1,559 inch
Height	31 mm
Height (inches)	1,22 inch
Width	15,7 mm
Width (inches)	0,618 inch
Net weight	1,962 g

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

General data

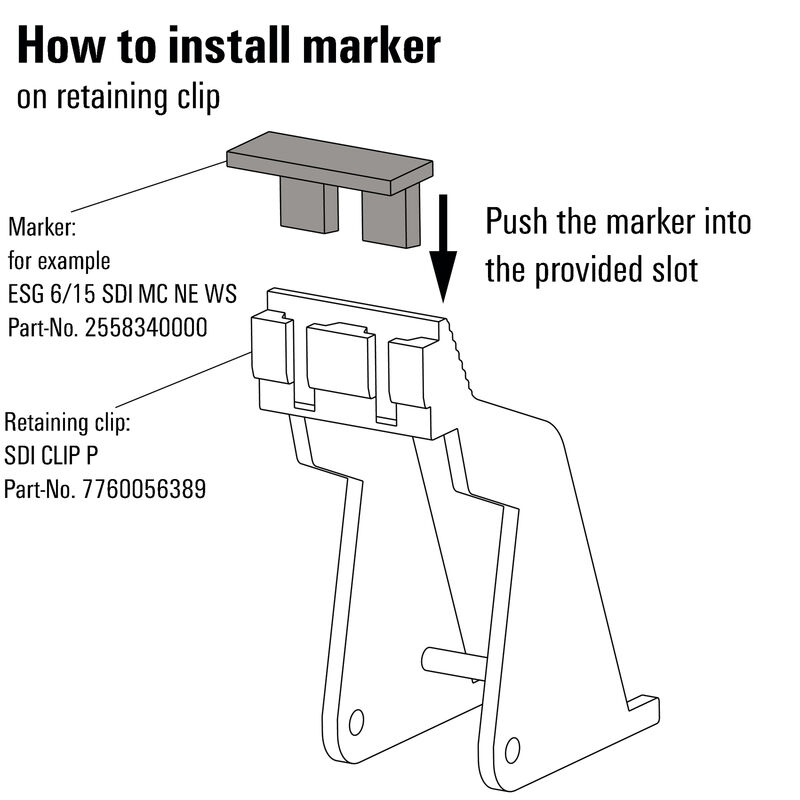

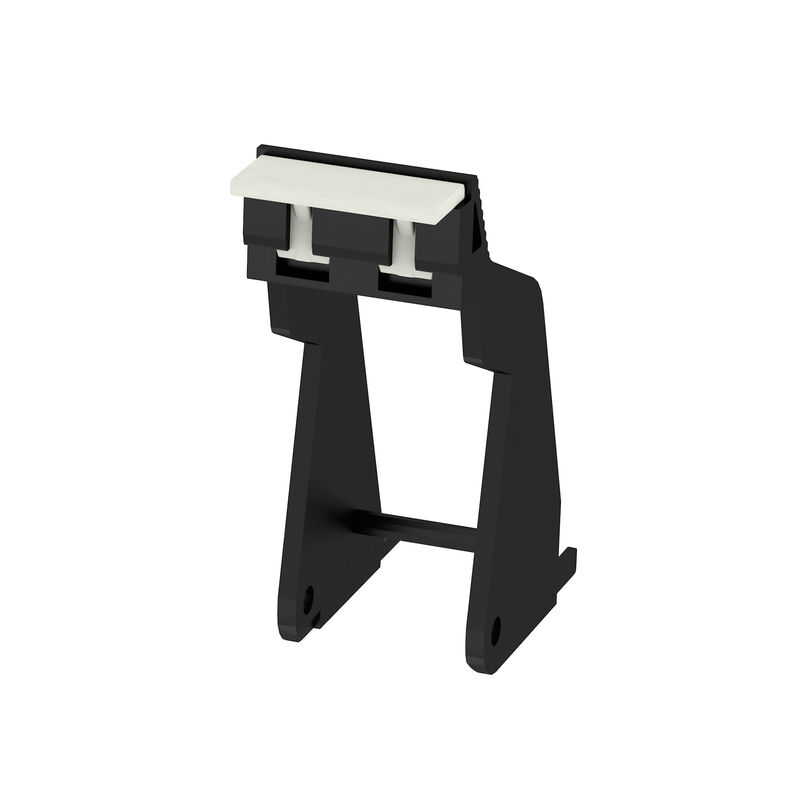

Version	with marker holder
Material	Plastic
UL94 flammability rating component	Component: Retaining clip UL94 flammability rating: V-2

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_54892)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.7760056389)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=7760056389)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002586
ETIM 7.0	EC002586
ETIM 8.0	EC002586
ETIM 9.0	EC002586
ECLASS 9.1	27-37-16-92
ECLASS 10.0	27-37-16-92
ECLASS 11.0	27-37-16-92
ECLASS 12.0	27-37-16-92
ECLASS 13.0	27-37-16-92
ECLASS 14.0	27-37-16-92

Approvals

ROHS

Conform
