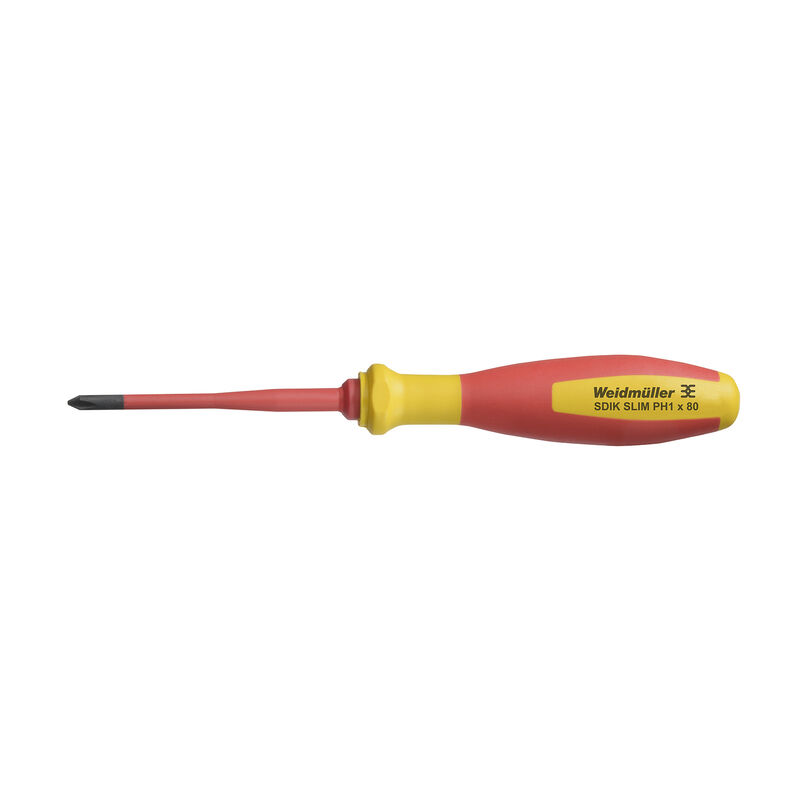

SDIK SLIM PH1 X 80

Screwdriver, Blade width (B): 1 mm, 80 mm, Blade thickness (A): 1

Produkt ID 2749650000

Egenskaber

General ordering data

Version	Screwdriver, Blade width (B): 1 mm, 80 mm, Blade thickness (A): 1
Order No.	2749650000
Type	SDIK SLIM PH1 X 80
GTIN (EAN)	4050118896398
Qty.	1 Styk

Dimensions and weights

Width	185 mm
Width (inches)	7,283 inch
Net weight	50 g

Environmental Product Compliance

RoHS Compliance Status	Not affected
REACH SVHC	No SVHC above 0.1 wt%

Technical data

Description of article	VDE-insulated crosshead screwdriver, Phillips size 1 SlimLine
Version	straight

Screwing tools

Blade length	80 mm
Blade size, crosshead	1
Blade width (B)	1 mm
Form	Crosshead round
Size	1

Downloads

Catalogues

[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000144
ETIM 7.0	EC000144
ETIM 8.0	EC000144
ETIM 9.0	EC000144
ECLASS 9.0	21-04-04-06
ECLASS 9.1	21-04-04-06
ECLASS 10.0	21-04-04-06
ECLASS 11.0	21-04-04-06
ECLASS 12.0	21-04-04-06
ECLASS 13.0	21-04-04-06
ECLASS 14.0	21-04-04-06
