SDL 4 FT

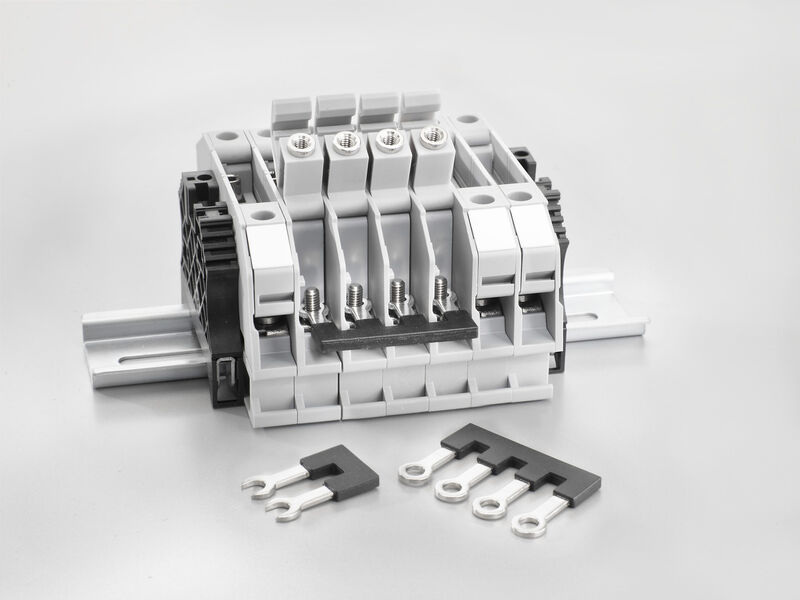

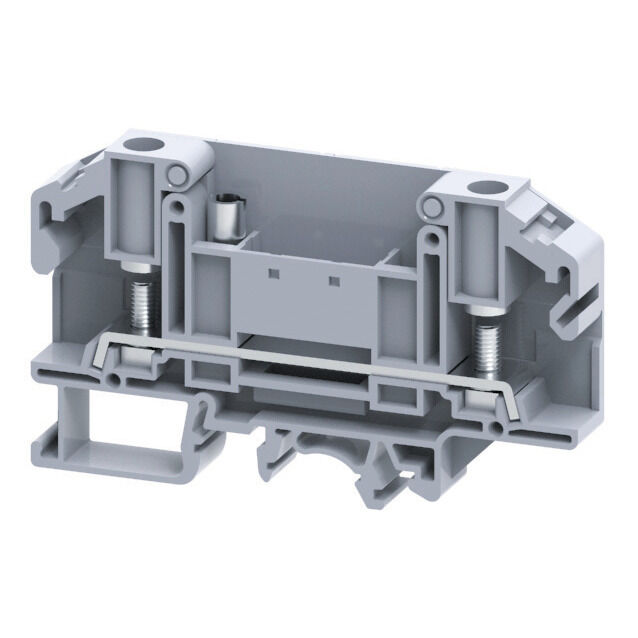

Stud terminal, Threaded stud connection, grey, 6 mm², 41 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 32, TS 35, Polyamide

Produkt ID 2614970000

Egenskaber

General ordering data

Version	Stud terminal, Threaded stud connection, grey, 6 mm², 41 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 32, TS 35, Polyamide
Order No.	2614970000
Type	SDL 4 FT
GTIN (EAN)	4050118654004
Qty.	50 Styk

Dimensions and weights

Depth	51,5 mm
Depth (inches)	2,028 inch
Depth including DIN rail	52,2 mm
Height	86 mm
Height (inches)	3,386 inch
Width	11 mm
Width (inches)	0,433 inch
Net weight	18,3 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Polyamide
Colour	grey

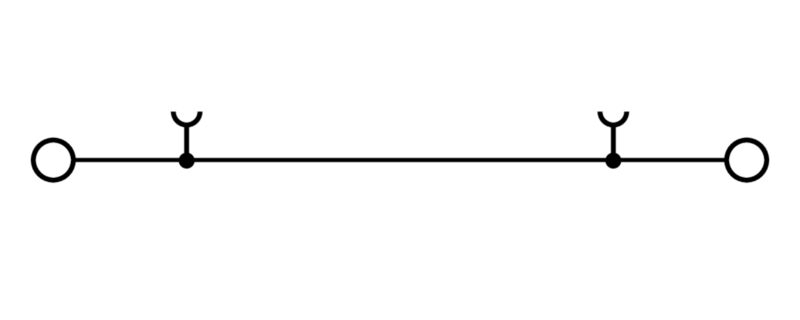

System specifications

End cover plate required	Yes
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 32 TS 35
N-function	No
PE function	No
PEN function	No

Additional technical data

Explosion-tested version	No
Open sides	right
Snap-on	Yes
Type of fixing	Snap-on
Type of mounting	TS 32 TS 35

Conductors for clamping (rated connection)

2 x cable lugs DIN 46 234	1.5…6 mm²
2 x cable lugs DIN 46 235	1.5…6 mm²
Blade size	0.8 x 5.5 mm
Cable lug to DIN 46234	1.5…6 mm²
Cable lug to DIN 46235	1.5…6 mm²
Clamping range, bolted connection , max.	6 mm²
Clamping range, bolted connection , min.	1,5 mm²
Clamping range, max.	6 mm²
Clamping range, min.	1,5 mm²
Connection cross-section, stranded, max.	6 mm²
Connection cross-section, stranded, min.	1,5 mm²
Connection direction	on side
Number of connections	2
Stud size for spade connection	M 4
Tightening torque, max.	1,2 Nm
Tightening torque, min.	1,2 Nm
Type of connection	Threaded stud connection
Wire connection cross section AWG, max.	AWG 8
Wire connection cross section AWG, min.	AWG 22
Wire connection cross section, finely stranded, max.	6 mm²
Wire connection cross section, finely stranded, min.	1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	1,5 mm²
Wire connection cross-section, solid core, max.	6 mm²
Wire connection cross-section, solid core, min.	1,5 mm²

CSA rating data

Certificate number (cCSAus)	70198655
Wire cross section max. (cCSAusX)	8 AWG
Wire cross section min. (cCSAusX)	22 AWG

General

Rail	TS 32 TS 35
Standards	IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 8
Wire connection cross section AWG, min.	AWG 22

Rating data

Rated cross-section	6 mm²
Rated voltage	1.000 V
Rated DC voltage	1.000 V
Rated current	41 A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	0,78 mΩ
Rated impulse withstand voltage	8 kV
Power loss in accordance with IEC 60947-7-x	1,31 W
Pollution severity	3

UL rating data

Certificate No. (cURus)	.
Conductor size Factory wiring max. (cURus)	8 AWG
Conductor size Factory wiring min. (cURus)	22 AWG
Conductor size Field wiring max. (cURus)	8 AWG
Conductor size Field wiring min. (cURus)	22 AWG
Current size B (cURus)	50 A
Current size C (cURus)	50 A
Voltage size B (cURus)	600 V
Voltage size C (cURus)	600 V

Downloads

Approval/Certificate/Document of Conformity	[CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_165092) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205551)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2614970000)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000897
ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 9.0	27-14-11-20
ECLASS 9.1	27-14-11-20
ECLASS 10.0	27-14-11-20
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
ECLASS 13.0	27-25-01-01
ECLASS 14.0	27-25-01-01

Approvals

Approvals	![CCSAUS](/picture/CCSAUS.gif) ![CE](/picture/CE.gif) ![CURUS](/picture/CURUS.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	.
