Egenskaber

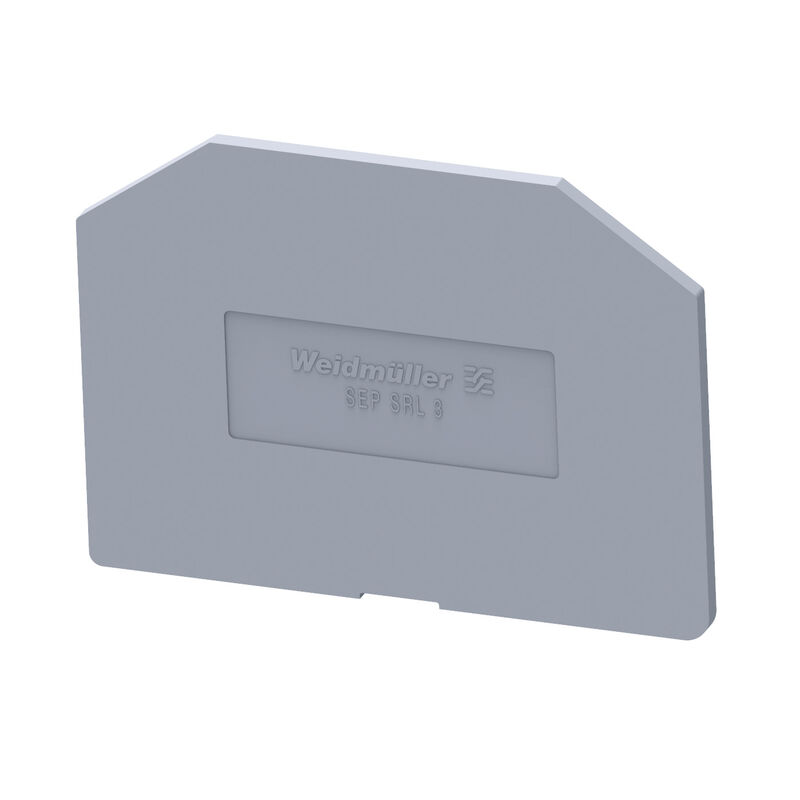

| Version | End plate (terminals), grey, Height: 47 mm, Width: 1.5 mm, V-0, Polyamide |
| Order No. | 2614990000 |
| Type | SEP SRL 3 |
| GTIN (EAN) | 4050118653984 |
| Qty. | 50 Styk |
| Depth | 34,35 mm |
| Depth (inches) | 1,352 inch |
| Height | 47 mm |
| Height (inches) | 1,85 inch |
| Width | 1,5 mm |
| Width (inches) | 0,059 inch |
| Net weight | 1,08 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Polyamide |
| Colour | grey |
| UL 94 flammability rating | V-0 |
| Snap-on | Yes |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205552) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2614990000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2614990000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:2614930000Pakningsenhed:100 Styk
Stud terminal, Threaded stud connection, grey, 6 mm², 41 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, TS 32, V-0, Polyamide
Terminal BlocksUniversal rangeStud technologySRL-Series6 mm²
