Egenskaber
| Version | Photovoltaics, Plug-in connector, male |
| Order No. | 1530700000 |

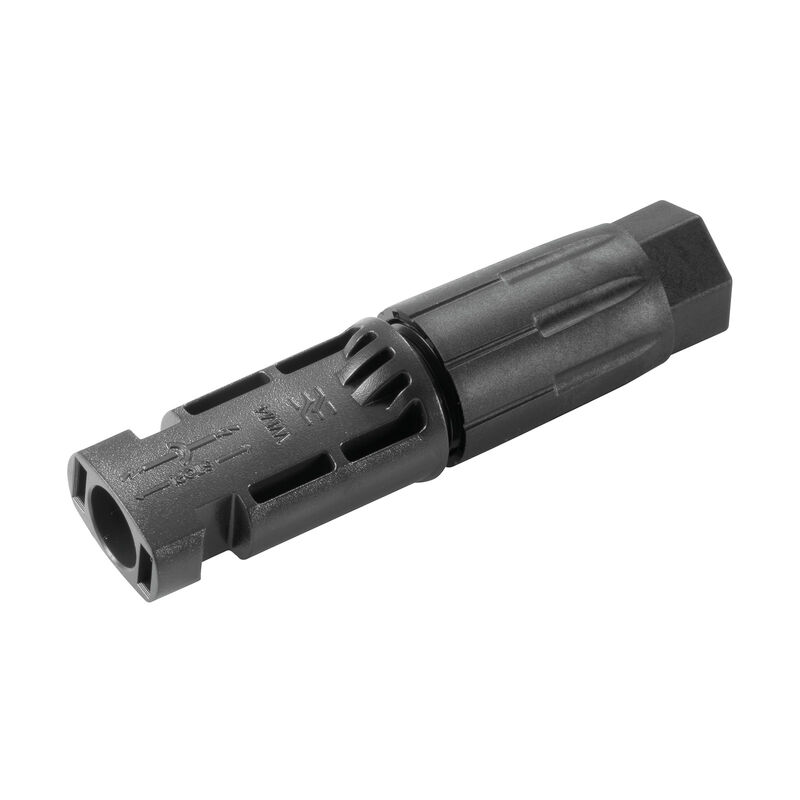

| Type | SFGH WM4 C BT |
| GTIN (EAN) | 4050118335330 |
| Qty. | 100 Styk |
| Net weight | 13,8 g |
| Approvals | TÜV Rheinland (IEC 62852) |
| Cable type |
2 Pfg1169/08.07
EN 50618:2014 |
| Conductor cross-section, max. | 6 mm² |
| Conductor cross-section, min. | 4 mm² |
| External thread | M 16 |
| Outer cable diameter, max. | 7 mm |
| Outer cable diameter, min. | 5,5 mm |
| Pollution severity | 2 |
| Protection degree |
IP65
IP67 IP2x open |
| Rated current | 35 A |
| Rated voltage | 1500 V DC (IEC) |
| Time interval | 2 years |
| Product information | Please order contacts separately |
| Approval/Certificate/Document of Conformity | [WM4 C TÜV certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_255728) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_62059) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1530700000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1530700000&norm=0) |
| User Documentation | [BPZL WM4C LANG](https://mdcop.weidmueller.com/mediadelivery/asset/900_41631) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002928 |
| ETIM 7.0 | EC002928 |
| ETIM 8.0 | EC002928 |
| ETIM 9.0 | EC002928 |
| ECLASS 9.0 | 22-57-92-03 |
| ECLASS 9.1 | 27-44-01-07 |
| ECLASS 10.0 | 27-44-01-07 |
| ECLASS 11.0 | 22-57-02-92 |
| ECLASS 12.0 | 22-57-02-92 |
| ECLASS 13.0 | 22-57-02-92 |
| Approvals |   |
| ROHS | Conform |
