SFX 9/24 MM BL
SFX 9/24 MM BL

SFX 9/24 MM BL

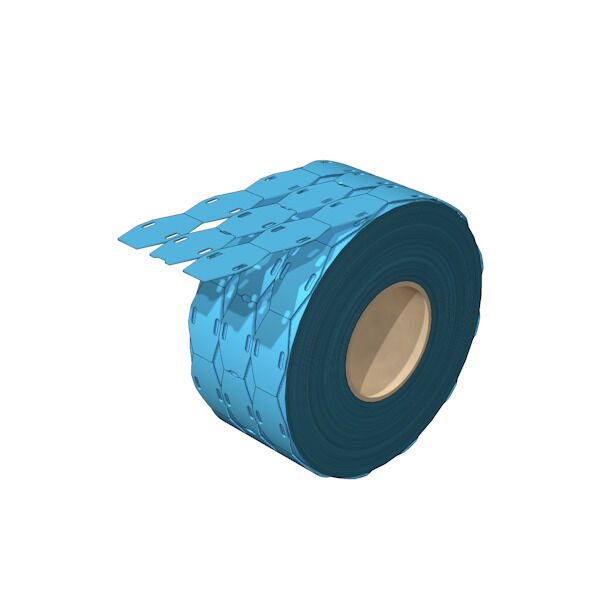

SlimFix, Conductor and cable markers, 7 -, 26 x 15 mm, blue

Product ID 2519100000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 3 Verwante producten 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Ausfuehrung
SlimFix, Conductor and cable markers, 7 -, 26 x 15 mm, blue
Best.-Nr.
2519100000
Type
SFX 9/24 MM BL
GTIN (EAN)
4050118531251
Qty.
1 000 items

Dimensions and weights

Tiefe
0,6 mm
Depth (inches)
0,024 inch
Height
26 mm
Height (inches)
1,024 inch
Width
15 mm
Width (inches)
0,591 inch
Net weight
0,238 g

Temperatures

Gama de temperaturas de servicio
-40...90 °C

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
Polyurethane
Colour
blue
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
Halogen
No
Number per roll
1000
Operating temperature range
-40...90 °C
Operating temperature range, max.
90 °C
Operating temperature range, min.
-40 °C
Printed characters
without
Size of labelling field
23.5 x 9 mm
Type of printing
neutral
UL 94 flammability rating
HB
Version
halogen-free
Width
15 mm

Conductor and cable markers

Cable tie passage
Flat
Conductor cross-section, max.
500 mm²
Conductor O.D.
7 -
Conductor O.D., max.
40 mm
Conductor O.D., min.
7 mm
Cross-section for connected wire
500 mm²
Halogen
No
Suitable cable tie
Plastic
Text field height
23,5 mm
Text field width
9 mm

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
