Egenskaber

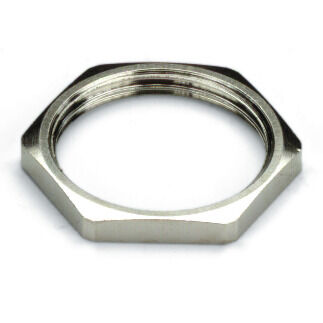

| Version | SKMU MS (brass locknut), Locknut, PG 42, 5 mm, Brass, nickel-plated |
| Order No. | 1719230000 |
| Type | SKMU PG42-MS |
| GTIN (EAN) | 4008190352486 |
| Qty. | 25 Styk |
| Height | 5 mm |
| Height (inches) | 0,197 inch |
| Net weight | 32,42 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | f350dea6-3de1-42c5-a935-c4eb3e9d5e3c |
| AF size 1 | 60 mm |
| Cable glands | PG 42 |
| External thread | PG 42 |
| Halogen | No |
| Internal thread | PG 42 |
| Length of thread | 5 mm |
| Material | Brass, nickel-plated |
| O.D. | 66,99 mm |
| Pitch of thread | 1,59 mm |
| Thickness | 5 mm |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1719230000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000940 |
| ETIM 7.0 | EC000940 |
| ETIM 8.0 | EC000940 |
| ETIM 9.0 | EC000940 |
| ECLASS 9.0 | 27-14-44-24 |
| ECLASS 9.1 | 27-14-44-24 |
| ECLASS 10.0 | 27-14-44-24 |
| ECLASS 11.0 | 27-14-44-24 |
| ECLASS 12.0 | 27-14-08-05 |
| ECLASS 13.0 | 27-14-08-05 |
| ECLASS 14.0 | 27-14-08-05 |
| ROHS | Conform |
