Egenskaber
| Version | D-SERIES DRL, Relay socket, Number of contacts: 3, CO contact, Continuous current: 10 A, Screw connection |
| Order No. | 7760056226 |
| Type | SLD F 3CO |
| GTIN (EAN) | 6944169634024 |
| Qty. | 10 Styk |

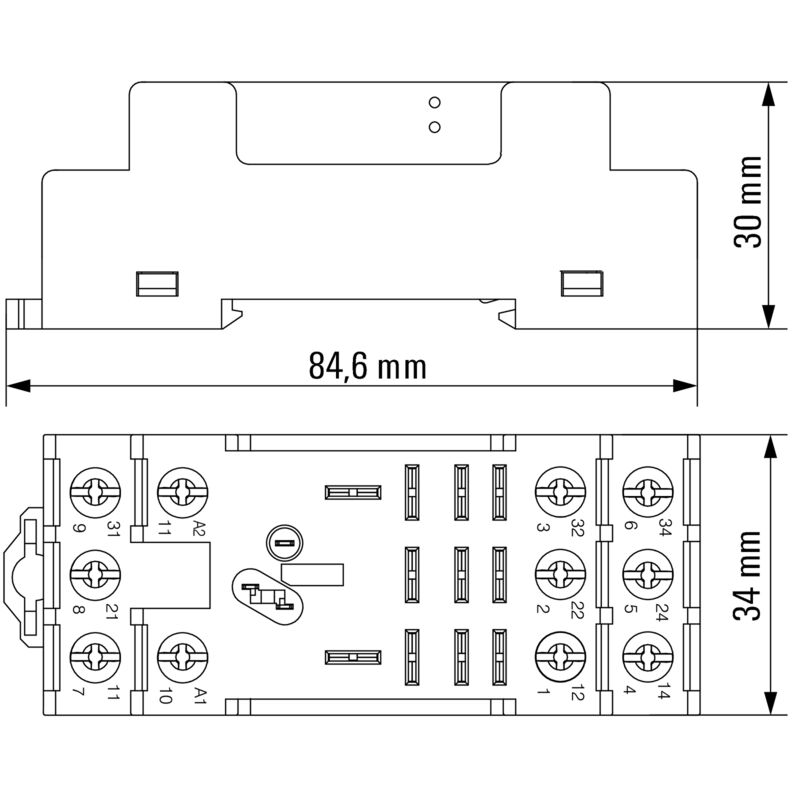

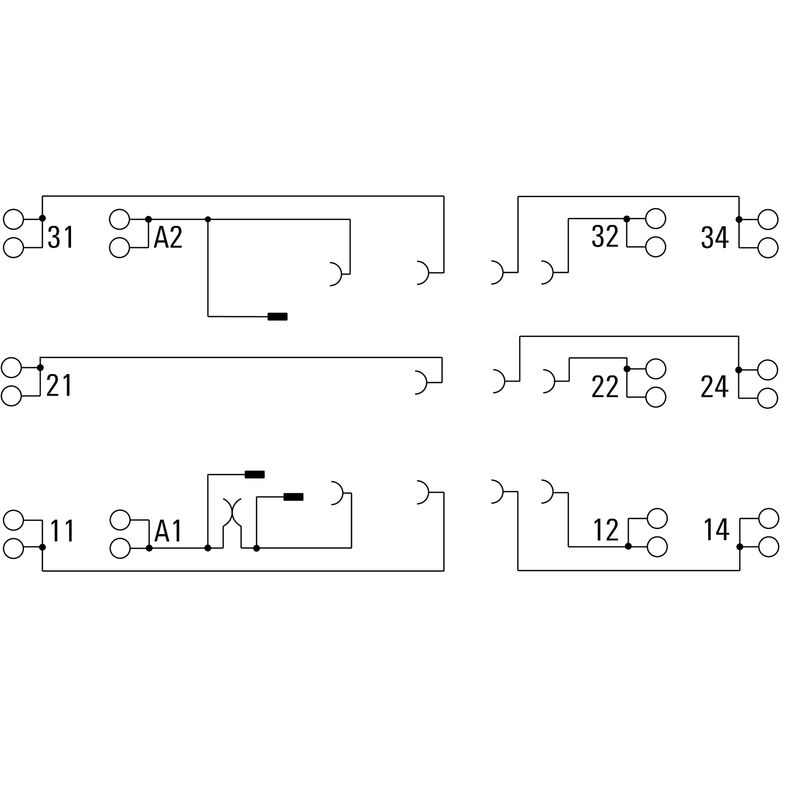

| Depth | 30 mm |
| Depth (inches) | 1,181 inch |
| Height | 84,6 mm |
| Height (inches) | 3,331 inch |
| Width | 34 mm |
| Width (inches) | 1,339 inch |
| Net weight | 60 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...65 °C |
| Humidity | 35...85 % rel. humidity, no condensation |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Certificate No. (cURus) | E312083 |
| Rated switching voltage | 250 V AC |
| Continuous current | 10 A |
| Max. switching voltage, AC | 250 V |
| Contact type | 3 CO contact |
| Rail | TS 35 |
| Colour | black |
| UL94 flammability rating component |
|
| Pollution severity | 2 |
| Surge voltage category | III |
| Clearance and creepage distances for control side - load side | ≥ 6 mm |
| Dielectric strength for control side - load side | 2 kVeff / 1 min |
| Dielectric strength of neighbouring contacts | 2 kVeff / 1 min |
| Impulse withstand voltage | 4 kV (1.2/50 µs) |
| Protection degree | IP10 |
| Certificate No. (cURus) | E312083 |
| Wire connection method | Screw connection |
| Stripping length, rated connection | 8 mm |
| Tightening torque, min. | 0,8 Nm |
| Tightening torque, max. | 1 Nm |
| Clamping range, min. | 0,5 mm² |
| Clamping range, max. | 2,5 mm² |
| Wire cross-section, solid, min. | 0,5 mm² |
| Wire cross-section, solid, max. | 2,5 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 2,5 mm² |
| Wire connection | M4 forked cable lug (insulated) |
| Blade size | Gr. PH2 |
| Product information |
For this socket, a cross connection is not available. For this socket, markers are not available. |
| Approval/Certificate/Document of Conformity | [EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35387) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66501) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.7760056226) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=7760056226) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001456 |
| ETIM 7.0 | EC001456 |
| ETIM 8.0 | EC001456 |
| ETIM 9.0 | EC001456 |
| ECLASS 9.0 | 27-37-16-03 |
| ECLASS 9.1 | 27-37-16-03 |
| ECLASS 10.0 | 27-37-16-03 |
| ECLASS 11.0 | 27-37-16-03 |
| ECLASS 12.0 | 27-37-16-03 |
| ECLASS 13.0 | 27-37-16-03 |
| ECLASS 14.0 | 27-37-16-03 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E312083 |
