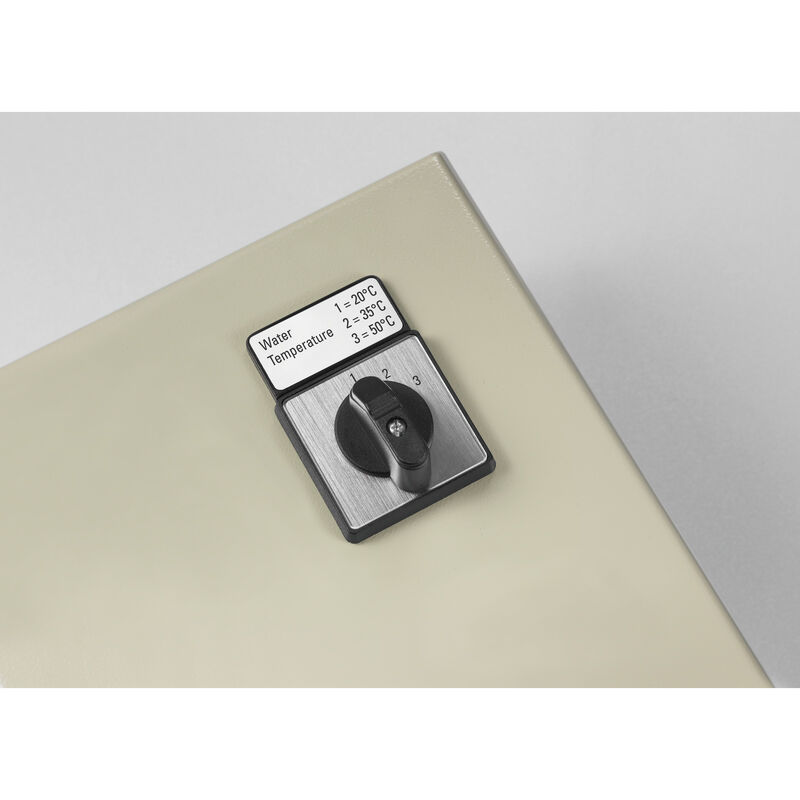

Example of use

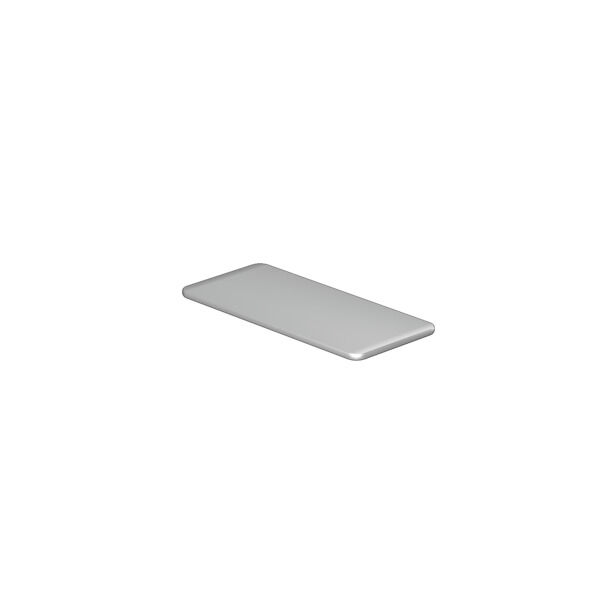

Similar to illustration
SM 19/42 K MC NE GR 5CRDX8

SM 19/42 K MC NE GR 5CRDX8

SwitchMark, Device markers, 19 x 42 mm, grey

Produkt ID 1248640000
Download datablad Engineering Support Product Downloads
Anvendte produkter 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Device markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
SwitchMark, Device markers, 19 x 42 mm, grey
Order No.
1248640000
Type
SM 19/42 K MC NE GR
GTIN (EAN)
4050118038972
Qty.
40 Styk

Dimensions and weights

Depth
1.2 mm
Depth (inches)
0.047 inch
Height
19 mm
Height (inches)
0.748 inch
Width
42 mm
Width (inches)
1.654 inch
Net weight
2.75 g

Temperatures

Operating temperature range
-40...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.020 kg CO2 eq.

General data

Adhesive
Double-sided adhesive tape
Caratteri stampati
without
Colour
grey
Gama de temperaturas de servicio, min.
-40 °C
Halogène
No
Kompatybilna drukarka
[PRINTJET CONNECT](~/p/2715590000)
[MCP PLUS](~/p/1925000000)
Material colour according to resistance code
8
Materiale di base
Polyamide 66
Number of markers per packaging unit

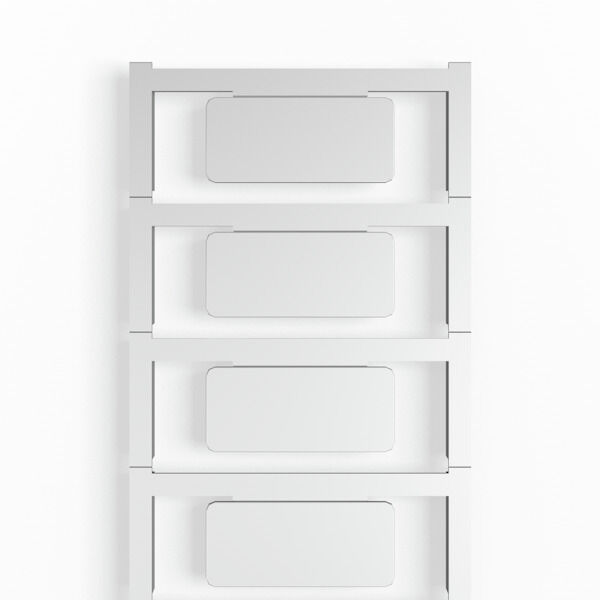

  • Form of supply:
    MultiCard
Operating temperature range, max.
60 °C
UL 94 flammability rating
V-2
Version
Self-adhesive
Width
42 mm
Количество маркировочных элементов на комбинацию
1 MultiCard = Device markers
작동 온도 범위
-40...60 °C

Device markers

Halogen
No

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
