Egenskaber

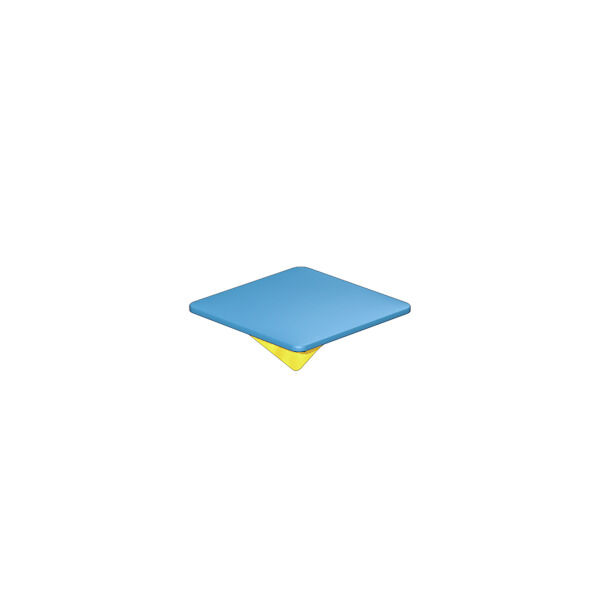

| Version | SwitchMark, Device markers, 27 x 27 mm, blue |
| Order No. | 2737790000 |
| Type | SM-DT 27/27 K MC NE BL |
| GTIN (EAN) | 4064675211150 |
| Qty. | 60 Styk |
| Depth | 1 mm |
| Depth (inches) | 0,039 inch |
| Height | 27 mm |
| Height (inches) | 1,063 inch |
| Width | 27 mm |
| Width (inches) | 1,063 inch |
| Net weight | 2,424 g |
| Operating temperature range | -40...60 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Adhesive | Double-sided adhesive tape |
| Colour | blue |
| compatible printer |
[PRINTJET CONNECT](~/p/2715590000)
[MCP PLUS](~/p/1925000000) |
| Detectible in accordance with Rondotest | 4.7 mm Al |
| Halogen | No |
| Material | Polyamide 66 |
| Number of markers per combination | 1 MultiCard = Device markers |
| Number of markers per packaging unit |
|
| Operating temperature range | -40...60 °C |
| Operating temperature range, max. | 60 °C |
| Operating temperature range, min. | -40 °C |
| Printed characters | without |
| Recommended industries | Food processing industry |
| UL 94 flammability rating | HB |
| Width | 27 mm |
| Halogen | No |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ECLASS 14.0 | 27-28-11-04 |
| ROHS | Conform |
Tilbehør
-
Produkt ID:2737800000Pakningsenhed:10 Styk
SwitchMark, Accessories, 59 x 27 mm, blue
MarkersDevice markersMultiCardSwitchMarkComplementary products
