Egenskaber

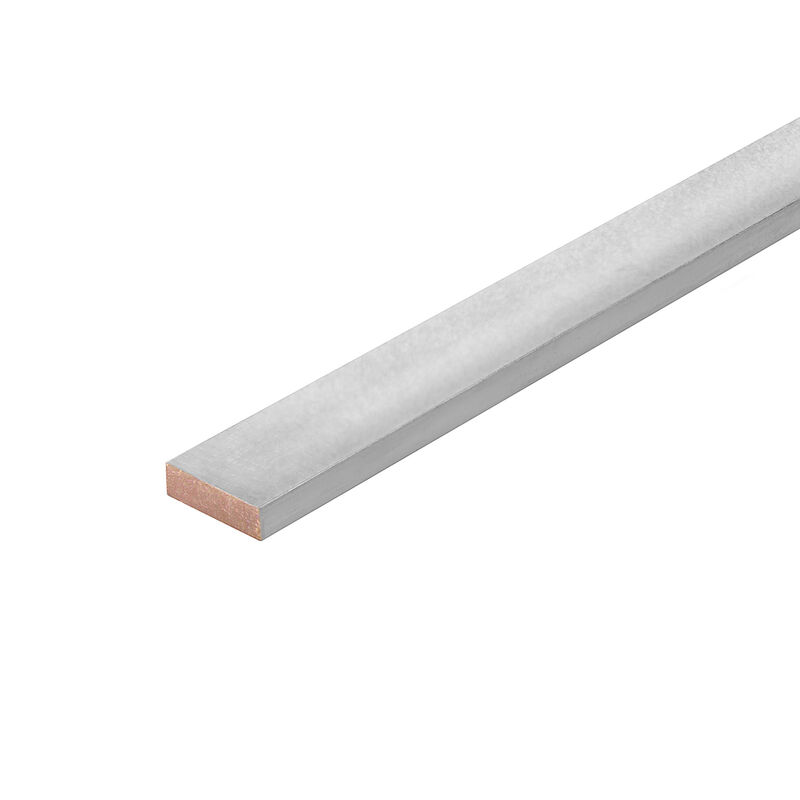

| Version | Busbar (terminal), silver, Height: 2000 mm, Depth: 3 mm, Copper |
| Order No. | 1397000000 |
| Type | SSCH 10X3X2000 CU VERZ. |
| GTIN (EAN) | 4008190161170 |
| Qty. | 2 |
| Depth | 3 mm |
| Depth (inches) | 0,118 inch |
| Height | 2.000 mm |
| Height (inches) | 78,74 inch |
| Width | 10 mm |
| Width (inches) | 0,394 inch |
| Net weight | 471,68 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Copper |
| Surface finish | tinned |
| Colour | silver |
| Installation advice | Direct mounting |
| Installation advice | Direct mounting |
| Surface finish | tinned |
| Rated current | 140 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_74505) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1397000000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1397000000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-14-11-92 |
| ECLASS 14.0 | 27-14-11-92 |
| ROHS | Conform |
Tilbehør
-
Produkt ID:0459500000Pakningsenhed:50 Styk
Clamping yoke (bus-bar), Clamping yoke, silver, Width: 8 mm, M 4, Steel
-
Produkt ID:1261300000Pakningsenhed:50 Styk
Clamping yoke (bus-bar), Clamping yoke, silver, 10 mm², Width: 8 mm, M 4, Steel
-
Produkt ID:0316500000Pakningsenhed:50 Styk
Clamping yoke (bus-bar), Clamping yoke, silver, 4 mm², Width: 5.3 mm, M 3, Steel
-
Produkt ID:0266500000Pakningsenhed:20 Styk
Clamping yoke (bus-bar), Clamping yoke, silver, 35 mm², Width: 14 mm, M 6, Steel
-
Produkt ID:0316600000Pakningsenhed:50 Styk
Clamping yoke (bus-bar), Clamping yoke, silver, 16 mm², Width: 10 mm, M 4, Steel
-
-
-
-
Produkt ID:0502860000Pakningsenhed:50 Styk
Clamping yoke (bus-bar), Clamping yoke, Green/yellow, 16 mm², Width: 10 mm, M 4, Steel
-
Produkt ID:0502880000Pakningsenhed:50 Styk
Clamping yoke (bus-bar), Clamping yoke, blue, 16 mm², Width: 10 mm, M 4, Steel
-
Produkt ID:1824560000Pakningsenhed:50 Styk
Clamping yoke (bus-bar), Clamping yoke, silver, 4 mm², Width: 6 mm, Steel
-
Produkt ID:0502610000Pakningsenhed:20 Styk
Clamping yoke (bus-bar), Clamping yoke, black, 35 mm², Width: 14 mm, M 6, Steel
-
-
Produkt ID:0525960000Pakningsenhed:50 Styk
Clamping yoke (bus-bar), Clamping yoke, Green/yellow, 6 mm², Width: 8 mm, M 4, Steel
-
-
Produkt ID:0525980000Pakningsenhed:50 Styk
Clamping yoke (bus-bar), Clamping yoke, blue, 6 mm², Width: 8 mm, M 4, Steel
-
Produkt ID:0322180000Pakningsenhed:50 Styk
Clamping yoke (bus-bar), Clamping yoke, blue, 4 mm², Width: 7.4 mm, M 3, Steel
-
Produkt ID:0502680000Pakningsenhed:20 Styk
Clamping yoke (bus-bar), Clamping yoke, blue, 35 mm², Width: 14 mm, M 6, Steel
-
Produkt ID:0502660000Pakningsenhed:20 Styk
Clamping yoke (bus-bar), Clamping yoke, Green/yellow, 35 mm², Width: 14 mm, M 6, Steel
-
Produkt ID:0475360000Pakningsenhed:50 Styk
Clamping yoke (bus-bar), Clamping yoke, silver, Width: 6 mm, M 3, Steel
-
Produkt ID:0475310000Pakningsenhed:50 Styk
Clamping yoke (bus-bar), Clamping yoke, black, Width: 7 mm, M 3, Steel
-
Produkt ID:0475380000Pakningsenhed:50 Styk
Clamping yoke (bus-bar), Clamping yoke, silver, 4 mm², Width: 6 mm, M 3, Steel
-
Produkt ID:0322110000Pakningsenhed:50 Styk
Clamping yoke (bus-bar), Clamping yoke, silver, 4 mm², Width: 7.4 mm, M 3, Steel
-
Produkt ID:0322160000Pakningsenhed:50 Styk
Clamping yoke (bus-bar), Clamping yoke, Green/yellow, 4 mm², Width: 7.4 mm, M 3, Steel
-
Produkt ID:0525910000Pakningsenhed:50 Styk
Clamping yoke (bus-bar), Clamping yoke, black, 6 mm², Width: 8 mm, M 4, Steel
-
Produkt ID:0502810000Pakningsenhed:50 Styk
Clamping yoke (bus-bar), Clamping yoke, black, 16 mm², Width: 10 mm, M 4, Steel
