SV 7.62HP/02/90MSF2 SC/08R SN BK BX

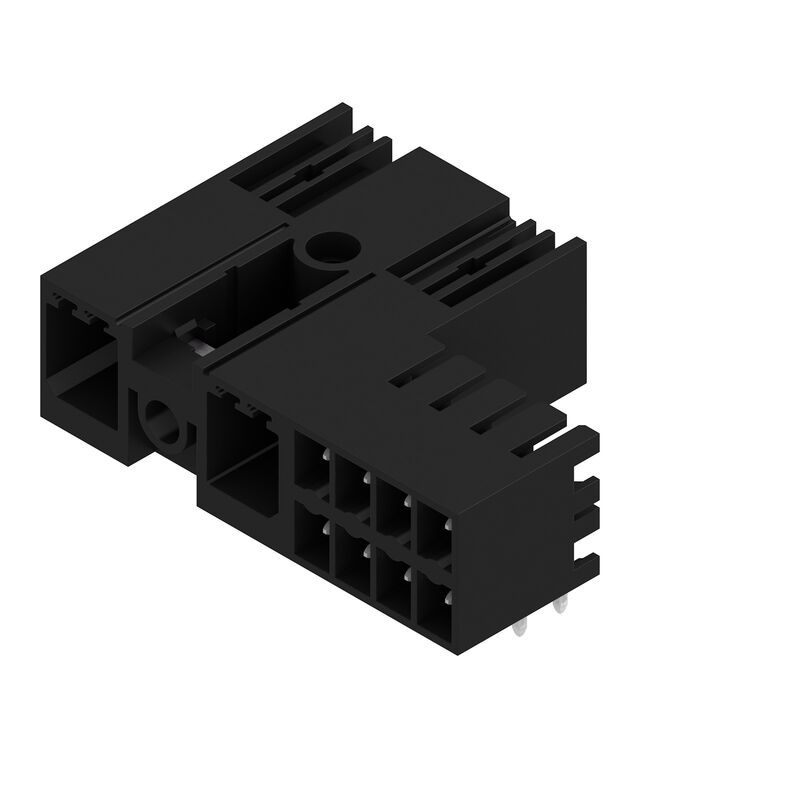

Product image
SV 7.62HP/02/90MSF2 SC/08R SN BK BX

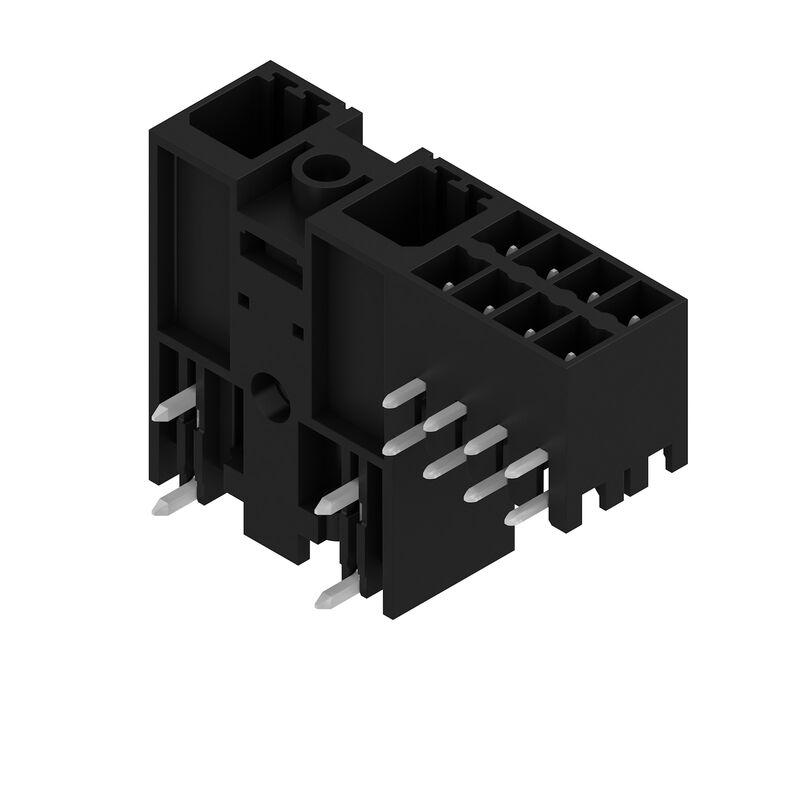

Product image
SV 7.62HP/02/90MSF2 SC/08R SN BK BX
Dimensional drawing
SV 7.62HP/02/90MSF2 SC/08R SN BK BX
Connection diagram

SV 7.62HP/02/90MSF2 SC/08R SN BK BX

PCB plug-in connector, male header, closed side, Middle screw flange, THT solder connection, 7.62 mm, Number of poles: 2, 90°, Solder pin length (l): 3.5 mm, tinned, black, Box

Produkt ID 1156830000
Download datablad Engineering-support Produktdownloads
Tilbehør 1 Er et modstykke til 1 Anvendte produkter 18
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data IEC 정격데이터 Rated data acc. to CSA Rated data acc. to UL 1059 패키징 Dane techniczne Important note Classifications

Approvals

Jóváhagyások
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
N° certificato (cURus)
E60693

General ordering data

Változat
PCB plug-in connector, male header, closed side, Middle screw flange, THT solder connection, 7.62 mm, Number of poles: 2, 90°, Solder pin length (l): 3.5 mm, tinned, black, Box
Rendelési szám
1156830000
Típus
SV 7.62HP/02/90MSF2 SC/08R SN BK BX
GTIN (EAN)
4032248943975
CPZ
48 Styk
Product data
IEC: 1000 V / 41 A
UL: 300 V / 35 A
Packaging
Box

Dimensions and weights

Mélység
28,3 mm
Profondità (pollici)
1,114 inch
Magasság
14,9 mm
Altezza (pollici)
0,587 inch
Height of lowest version
11,4 mm
Szélesség
39,07 mm
Width (inches)
1,538 inch
Nettó tömeg
3 g

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Product family
OMNIMATE Power - series BV/SV 7.62HP
Type of connection
Board connection
Mounting onto the PCB
THT solder connection
Pitch in mm (P)
7,62 mm
Rozteč v palcích (P)
0,3 "
Abgangswinkel
90°
Number of poles
2
Number of solder pins per pole
2
Solder pin length (l)
3,5 mm
Forrasztótüske tűrése
+0.1 / -0.3 mm
Dimensioni del codolo a saldare
0.8 x 1.0 mm
Solder eyelet hole diameter (D)
1,4 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 en mm
15,24 mm
L1 en pulgadas
0,6 "
L2 in mm
11,43 mm
L2 in pollici
0,45 "
quantità di file
1
Número de filas de polos
1
Touch-safe protection acc. to DIN VDE 57 106
safe to back of hand above the printed circuit board
Touch-safe protection acc. to DIN VDE 0470
IP 20
Volume resistance
2.00 mΩ
Can be coded
Yes
Couple de serrage pour bride vissée, min.
0,2 Nm
Coppia di serraggio per flangia a vite, max.
0,3 Nm
Dugaszolási ciklusok
25
Dugaszolási erő/pólus, max.
12 N
Húzóerő / pólus, max.
7 N

Material data

Szigetelőanyag
PA GF
Szín
black
Színskála (hasonló)
RAL 9011
Szigetelőanyag csoport
I
Comparative Tracking Index (CTI)
≥ 600
UL 94 flammability rating
V-0
Érintkező anyaga
Cu-alloy
Érintkező felület
tinned
Struttura a strati del collegamento a saldare
1...3 µm Ni / 4...6 µm Sn matt
Struttura a strati del connettore maschio
1...3 µm Ni / 4...6 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
130 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
130 °C

IEC 정격데이터

표준에 따라 시험완료
IEC 60664-1
IEC 61984
Névleges áram, min. pólusszám (Tu=20 °C)
41 A
Névleges áram, maximális pólusszám (Tu=20 °C)
41 A
Névleges áram, min. pólusszám (Tu=40°C)
41 A
Névleges áram, maximális pólusszám (Tu=40°C)
41 A
Tensione di dimensionamento con classe di sovratensione/grado di lordura II/2
1.000 V
Tensione di dimensionamento con classe di sovratensione/grado di lordura III/2
630 V
Névleges feszültség a III/3 túlfeszültség osztályhoz / szennyezés mértékéhez
630 V
Tensione di dimensionamento con classe di sovratensione/grado di lordura II/2
6 kV
Tensione di dimensionamento con classe di sovratensione/grado di lordura III/2
6 kV
Névleges lökőfeszültség a III/3 túlfeszültség osztályhoz / szennyeződés mértékéhez
6 kV
Rövid idejű határáram ellenállás
3 x 1s with 420 A

Rated data acc. to CSA

Intézet (CSA)
CSA
Tanúsítvány száma (CSA)
200039-1121690
Névleges feszültség (B felhasználási csoport / CSA)
300 V
Névleges feszültség (C felhasználási csoport / CSA)
300 V
Tensione nominale (Gruppo D / CSA)
600 V
Corrente nominale (Gruppo B / CSA)
33 A
Corrente nominale (Gruppo C / CSA)
33 A
Corrente nominale (Gruppo D / CSA)
5 A
Riferimento ai valori di omologazione
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group C / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
600 V
Rated current (Use group B / UL 1059)
35 A
Rated current (Use group C / UL 1059)
33 A
Rated current (Use group D / UL 1059)
5 A
Clearance distance, min.
6,9 mm
Creepage distance, min.
9,6 mm
Reference to approval values
Specifications are maximum values, details - see approval certificate.

패키징

Csomagolás
박스
VPE hosszúság
349 mm
VPE szélesség
135 mm
VPE magasság
40 mm

Dane techniczne

Pitch in mm (hybrid)
  • nominell:
    3,81 mm
  • Hybridkomponent:
    Signal
Passo in mm (Segnale)
3.81 mm
Pitch in inch (hybrid)
  • nominal:
    0,15 "
  • Hybrid component:
    Signal
Passo in pollici (Segnale)
0.15 "
Pole count (hybrid)
  • nominal:
    8
  • Hybrid component:
    Signal
Number of poles (Signal)
8
Number of solder pins per pole (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    1
Number of solder pins per pole (Signal)
1
Rozměry pájecích pinů (hybrid)
  • Solder pin dimensions:
    0.8 x 0.8 mm
  • Hybrid component:
    Signal
Solder pin dimensions (Signal)
0.8 x 0.8 mm
Lötstift-Abmessungen=d Toleranz (Hybrid)
  • Solder pin dimensions = d tolerance:
    • Lower tolerance with prefix (reveals minimum):
      -0,03
    • Upper tolerance with prefix (reveals maximum):
      +0,01
    • Tolerance, unit:
      mm
  • Hybrid component:
    Signal
Solder pin dimensions = d tolerance (Signal)
-0,03 / +0,01 mm
Diameter of solder eyelet (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    1,3 mm
PCB hole diameter (Signal)
1.3 mm
Tolerance of the diameter of the solder eyelet (hybrid)
  • Hybrid component:
    Signal
  • Solder eyelet hole diameter tolerance (D):
    ± 0.1 mm
  • Solder eyelet hole diameter tolerance (D):
    + 0,1 mm
PCB hole diameter tolerance (Signal)
± 0.1 mm
L2 in mm
11,43 mm
L2 in inch
0,45 "
Number of rows (hybrid)
  • Hybrid component:
    Signal
Number of rows (Signal)
2
Contact material (hybrid)
  • Hybrid component:
    Signal
  • Contact material:
    CuMg
Contact material (Signal)
CuMg
Contact surface (hybrid)
  • Hybrid component:
    Signal
  • Contact surface:
    tinned
Contact surface (Signal)
tinned
Layer structure of the solder connection (hybrid)
  • Layer structure of the solder connection:
    • Material:
      Ni
    • Layer strength:
      • min.:
        1 µm
      • max.:
        3 µm
    • Material:
      Sn
    • Layer strength:
      • min.:
        4 µm
      • max.:
        8 µm
  • Hybrid component:
    Signal
Layer structure of the solder connection (Signal)
1-3 µm Ni / 4-8 µm Sn
Layer structure of the plug contact (hybrid)
  • Layer structure of the plug contact:
    • Material:
      Ni
    • Layer strength:
      • min.:
        1 µm
      • max.:
        3 µm
    • Material:
      Sn
    • Layer strength:
      • min.:
        4 µm
      • max.:
        8 µm
  • Hybrid component:
    Signal
Layer structure of the plug contact (Signal)
1-3 µm Ni / 4-8 µm Sn
Rated voltage for overvoltage class / pollution severity level II/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    320 V
Rated voltage for overvoltage class/pollution severity level II/2 (Signal)
320 V
Rated voltage for overvoltage class / pollution severity level III/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    160 V
Rated voltage for overvoltage class/pollution severity level III/2 (Signal)
160 V
Tensione nominale per classe di sovratensione / grado di lordura di livello III/3 (ibrido)
  • Hybrid component:
    Signal
  • nominal:
    160 V
Rated voltage for overvoltage class/pollution severity level III/3 (Signal)
160 V
Rated impulse voltage for overvoltage class / pollution severity level II/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    2,5 kV
Rated impulse voltage for overvoltage class/pollution severity level II/2 (Signal)
2.5 kV
Sobretensión de choque nominal para clase de sobretensión / grado de polución III/2 (híbrido)
  • Hybrid component:
    Signal
  • nominal:
    2,5 kV
Tensione impulsiva di dimensionamento per classe di sovratensione / grado di lordura di livello III/2 (Segnale)
2.5 kV
Tensione impulsiva di dimensionamento per classe di sovratensione / grado di lordura di livello III/3 (ibrido)
  • Hybrid component:
    Signal
  • nominal:
    2,5 kV
Rated impulse voltage for overvoltage class/pollution severity level III/3 (Signal)
2.5 kV
Corriente nominal, número de polos (Tu=40 °C) (híbrido)
  • Hybrid component:
    Signal
  • min.:
    12,7 A
Rated current, number of poles (Tu=20°C) (hybrid)
  • Hybrid component:
    Signal
  • min.:
    14,2 A
Résistance aux pics de courant (hybride)
  • Short-time withstand current resistance:
    3 x 1s with 80 A
  • Hybrid component:
    Signal
Short-time withstand current resistance (Signal)
3 x 1s with 80 A
Distanza superficiale (ibrido)
  • Hybrid component:
    Signal
  • min.:
    4,38 mm
Clearance distance (hybrid)
  • Hybrid component:
    Signal
  • min.:
    3,6 mm
Névleges feszültség (B felhasználási csoport / CSA) (hibrid)
  • Hybrid component:
    Signal
  • nominal:
    300 V
Rated voltage (Use group B / CSA) (Signal)
300 V
Névleges feszültség (C felhasználási csoport / CSA) (hibrid)
  • Hybrid component:
    Signal
  • nominal:
    50 V
Rated voltage (Use group C / CSA) (Signal)
50 V
Rated current (Use group B / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group B / CSA) (Signal)
9 A
Rated current (Use group C / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group C / CSA) (Signal)
9 A
Rated current (Use group D / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group D / CSA) (Signal)
9 A
Rated voltage (Use group B / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    300 V
Rated voltage (Use group B / UL 1059] (Signal)
300 V
Rated voltage (Use group C / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    50 V
Rated voltage (Use group C / UL 1059] (Signal)
50 V
Rated voltage (Use group D / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
Rated current (Use group B / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    5 A
Rated current (Use group B / UL 1059) (Signal)
5 A
Rated current (Use group C / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    5 A
Rated current (Use group C / UL 1059) (Signal)
5 A
Rated current (Use group D / UL 1059) (Hybrid)
  • Hybrid component:
    Signal

Important note

IPC megfelelőség
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Megjegyzések
  • Technical specifications refer to the power contacts
  • Technical data of signal contacts: 50V / 5A, stripping length 8mm
  • Rated current related to rated cross-section & min. No. of poles.
  • Specifications of diagram: P1=7.62 mm; P2=3.81 mm
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • MFX and MSFX: X= Position of the middle flange e.g. MF2, MSF3
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-03-01
ECLASS 15.0
27-46-03-01
