Egenskaber

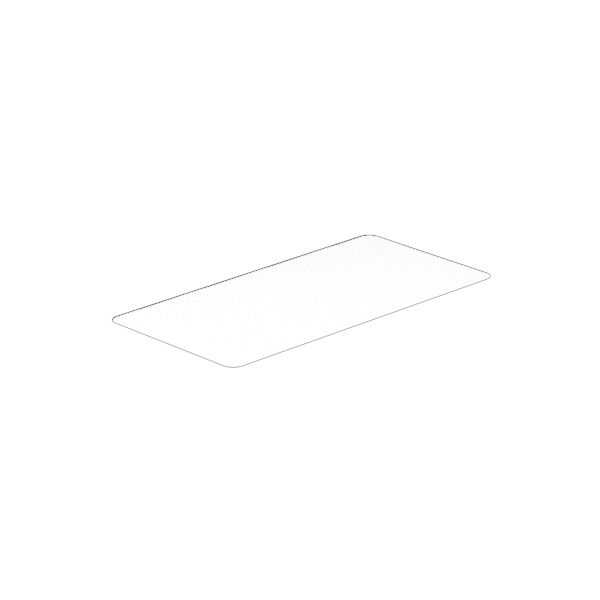

| Version | ClipCard, Device markers, 29.6 x 59.6 mm, Transparent |
| Order No. | 2969130000 |
| Type | THM PV 30/60 TR |
| GTIN (EAN) | 4099986783782 |
| Qty. | 450 Styk |

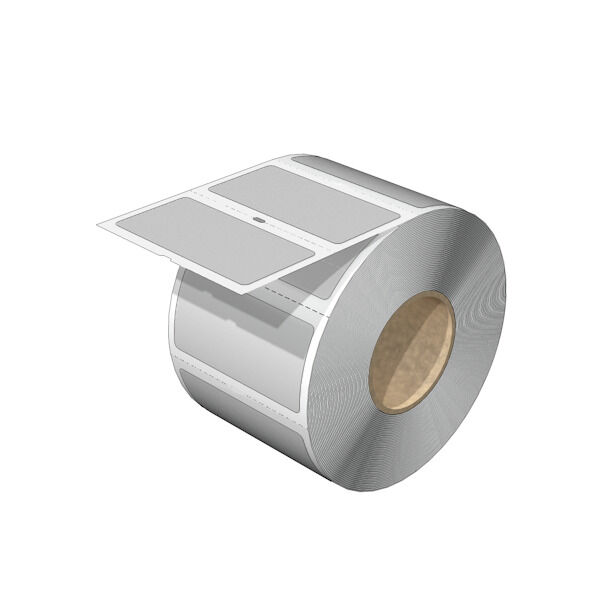

| Packaging | Reel |
| Depth | 0,05 mm |
| Depth (inches) | 0,002 inch |
| Height | 29,6 mm |
| Height (inches) | 1,165 inch |
| Width | 59,6 mm |
| Width (inches) | 2,346 inch |
| Net weight | 5 g |
| Adhesive | Polyacrylate adhesive |
| Colour | Transparent |
| Halogen | Yes |
| Material | Vinyl film |
| Number per roll | 450 |
| Operating temperature range, max. | -50 °C |
| Operating temperature range, min. | 110 °C |
| Printed characters | without |
| Printing method | Thermal transfer |
| Type of printing | neutral |
| UL 94 flammability rating | V-0 |
| Width | 59,6 mm |
| Halogen | Yes |
| Halogen | Yes |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_310608) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ECLASS 14.0 | 27-28-11-04 |
| ROHS | Conform |
