Egenskaber

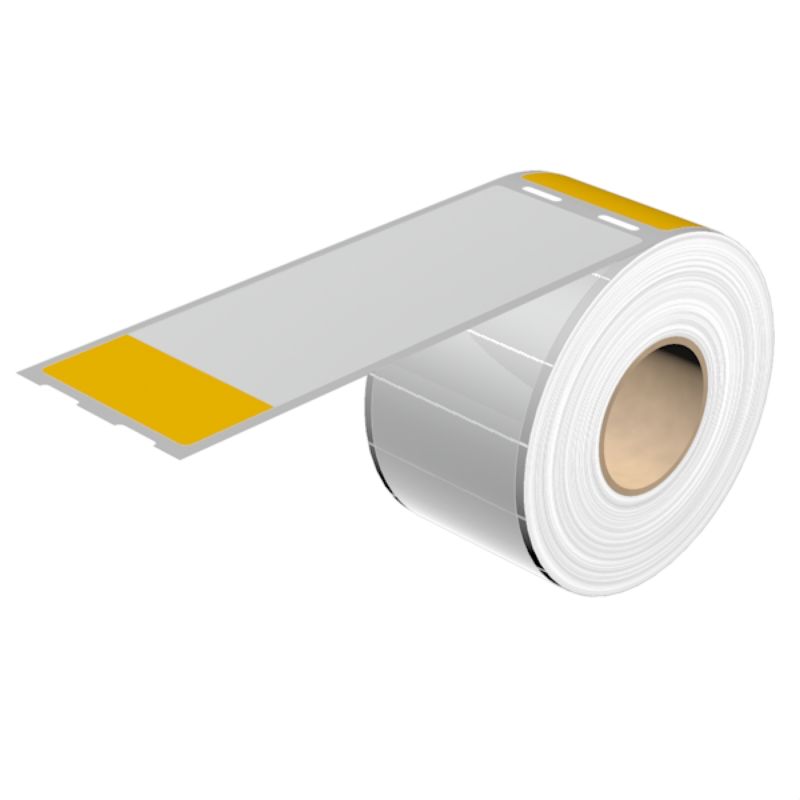

| Version | THM, Conductor and cable markers, 8.1 - 39.7 mm, 50.8 x 150 mm, yellow |
| Order No. | 1109180000 |
| Type | THM WO 50.8/150 GE |
| GTIN (EAN) | 4032248885329 |
| Qty. | 1 |
| Depth | 0,025 mm |
| Depth (inches) | 0,001 inch |
| Height | 50,8 mm |
| Height (inches) | 2 inch |
| Width | 150 mm |
| Width (inches) | 5,905 inch |
| Net weight | 610 g |
| Operating temperature range | -40...150 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Adhesive | Polyacrylate adhesive |
| Colour | yellow |
| compatible printer | [THM MMP](~/p/2430920000) |
| Halogen | No |
| Material | Polyester film |
| Material colour according to resistance code | 4 |
| Number of markers per combination | 1 Label reel = Conductor and cable markers |
| Number of markers per packaging unit |
|
| Number per roll | 500 |
| Operating temperature range | -40...150 °C |
| Operating temperature range, max. | 150 °C |
| Operating temperature range, min. | -40 °C |
| Size of labelling field | 25.4 x 50.8 mm |
| Type of printing | neutral |
| UL 94 flammability rating | V-0 |
| Version | Self-adhesive |
| Width | 150 mm |
| Conductor cross-section, max. | 500 mm² |
| Conductor cross-section, min. | 0,75 mm² |
| Conductor O.D. | 8.1 - 39.7 mm |
| Conductor O.D., max. | 39,7 mm |
| Conductor O.D., min. | 8,1 mm |
| Cross-section for connected wire | 0.75 - 500 mm² |
| Halogen | No |
| Text field height | 25,4 mm |
| Text field width | 50,8 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60408) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1109180000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1109180000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
