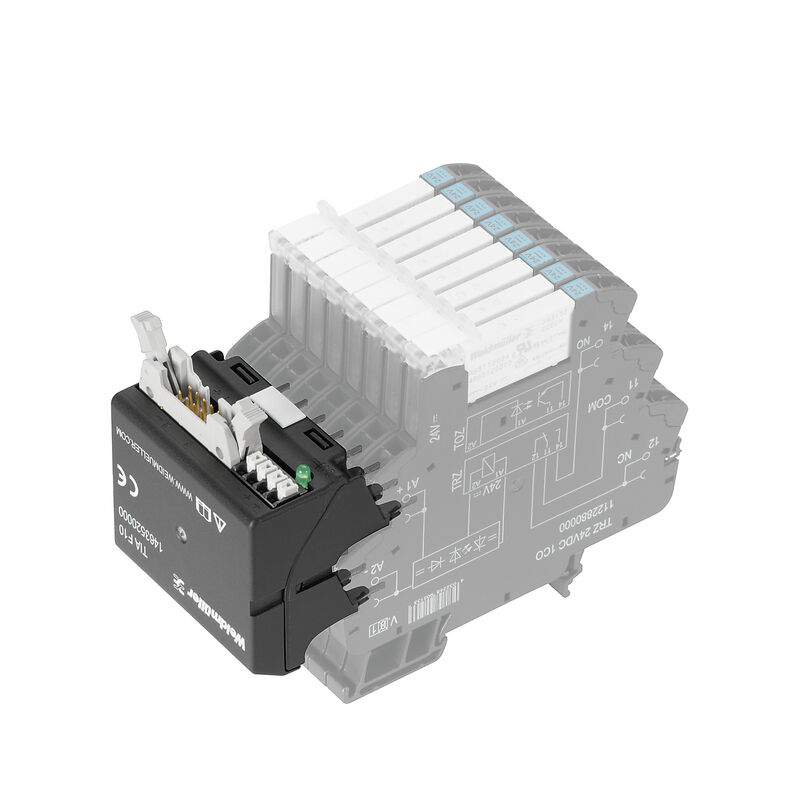

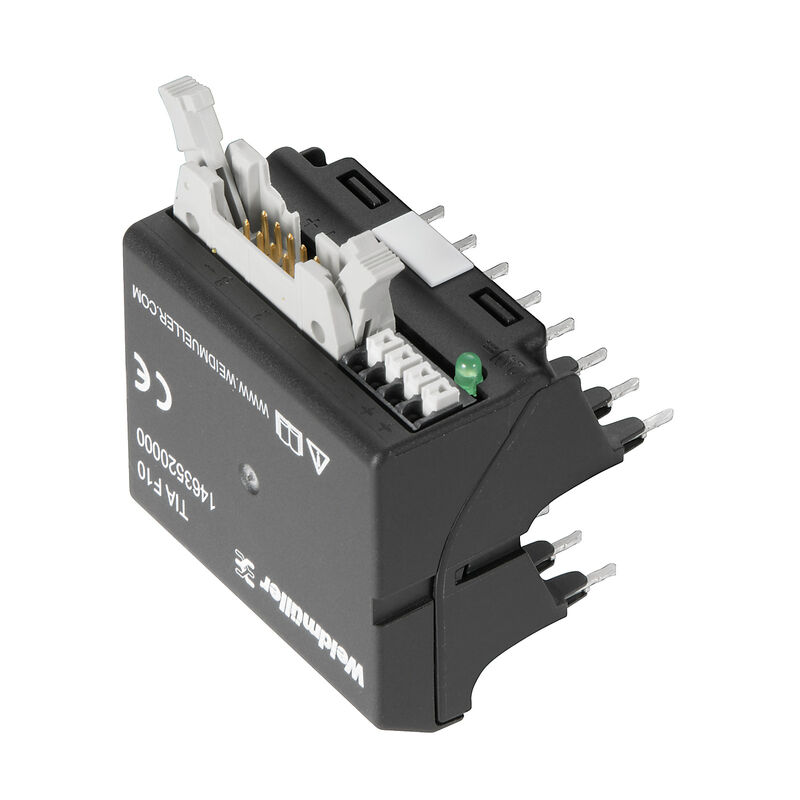

TIA F10

TERMSERIES, Adapter, 10-pole plug according to DIN EN 60603-13, long locking lever, Number of signal paths: 8, Rated voltage DC : 24 V, Rated current (per signal path): 125 mA

Produkt ID 1463520000

Egenskaber

General ordering data

Version	TERMSERIES, Adapter, 10-pole plug according to DIN EN 60603-13, long locking lever, Number of signal paths: 8, Rated voltage DC : 24 V, Rated current (per signal path): 125 mA
Order No.	1463520000
Type	TIA F10
GTIN (EAN)	4050118323535
Qty.	1 Styk

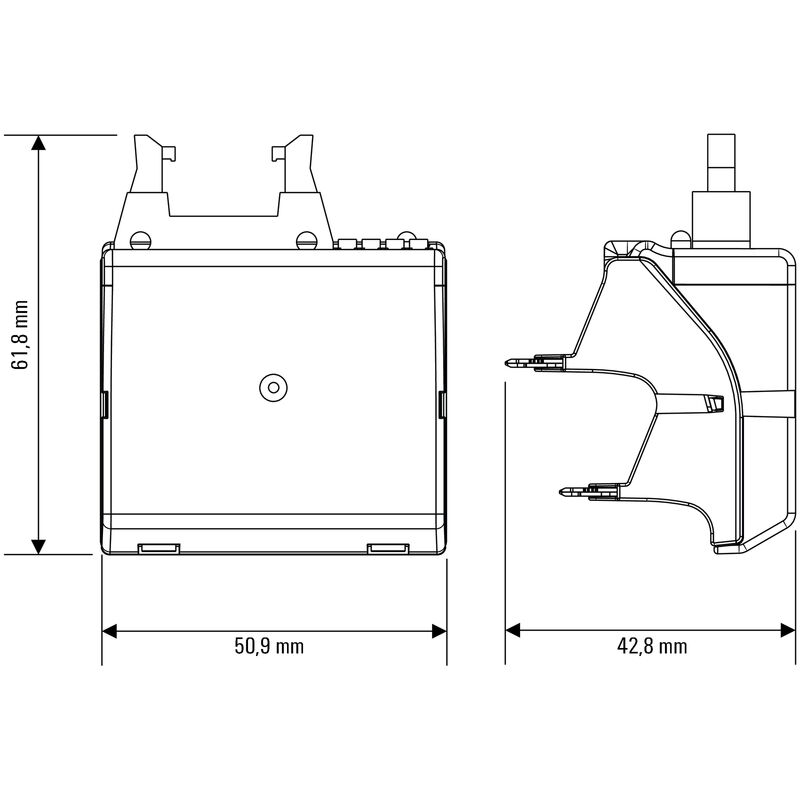

Dimensions and weights

Depth	62 mm
Depth (inches)	2,441 inch
Height	43 mm
Height (inches)	1,693 inch
Width	51 mm
Width (inches)	2,008 inch
Net weight	49,35 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...60 °C
Humidity	5...95% (indoor), T_u = 40°C, without condensation

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	7cI
REACH SVHC	No SVHC above 0.1 wt%

Signals

Rated voltage DC	24 V
DC Voltage, max.	30 V
Rated current (per signal path)	125 mA
Current (per signal path), max.	1 A
Total current of all signals, max.	1 A
Number of signal paths	8

General data

Colour	black
UL94 flammability rating component	Component: Housing UL94 flammability rating: V-0

Insulation coordination

Rated voltage	32 V
Pollution severity	2
Surge voltage category	III
Impulse withstand voltage	1.5 kV
Protection degree	IP20 in installed state

Further details of approvals / standards

Certificate No. (DNV)	TAA00001E5
Certificate no. (cULus)	E141197

Connection data (supply)

Wire connection method	PUSH IN
Number of terminals	4 (+,+,−,−)
Clamping range, rated connection, min.	0,13 mm²
Clamping range, rated connection, max.	1,5 mm²
Blade size (supply)	0.6 x 3.5 mm

Downloads

Approval/Certificate/Document of Conformity	[EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35613)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_46753)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1463520000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1463520000)
User Documentation	[Beipackzettel / Package Insert – de/en](https://mdcop.weidmueller.com/mediadelivery/asset/900_35624) [TEMRSERIES Adapter SPS Interface Kabel - Deutsch](https://mdcop.weidmueller.com/mediadelivery/asset/900_73883) [TERMSERIES Adapters PLC interface cables - English](https://mdcop.weidmueller.com/mediadelivery/asset/900_73884)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002780
ETIM 7.0	EC002780
ETIM 8.0	EC002780
ETIM 9.0	EC002780
ECLASS 9.0	27-14-11-52
ECLASS 9.1	27-14-11-52
ECLASS 10.0	27-14-11-52
ECLASS 11.0	27-14-11-52
ECLASS 12.0	27-14-11-52
ECLASS 13.0	27-14-11-52
ECLASS 14.0	27-14-11-52

Approvals

Approvals	![CE](/picture/CE.gif) ![CULUS](/picture/CULUS.gif) ![DETNORVER](/picture/DETNORVER.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E141197

Tilbehør

MarkersTerminal markersMultiMarkWSWS 12/6

WS 12/6 MM WS

Produkt ID:

2007200000

Pakningsenhed:

600 Styk

WS, Terminal marker, 12 x 6 mm, Weidmueller, white

Datablad Downloads

MarkersTerminal markersMultiCardWSWS 12/6Blank

WS 12/6 MC NE RT

Produkt ID:

1773551686

Pakningsenhed:

600 Styk

WS, Terminal marker, 12 x 6 mm, Pitch in mm (P): 6.00 Weidmueller, Allen-Bradley, red

Datablad Downloads

WS 12/6 MC NE BL

Produkt ID:

1773551693

Pakningsenhed:

600 Styk

WS, Terminal marker, 12 x 6 mm, Pitch in mm (P): 6.00 Weidmueller, Allen-Bradley, blue

Datablad Downloads

WS 12/6 MC NE WS 5CRDX120

Produkt ID:

1609900000

Pakningsenhed:

600 Styk

WS, Terminal marker, 12 x 6 mm, Pitch in mm (P): 6.00 Weidmueller, Allen-Bradley, white

Datablad Downloads

WS 12/6 MC NE GE 5CRDX120

Produkt ID:

1773551687

Pakningsenhed:

600 Styk

WS, Terminal marker, 12 x 6 mm, Pitch in mm (P): 6.00 Weidmueller, Allen-Bradley, yellow

Datablad Downloads

MarkersTerminal markersMultiCardWSWS 10/6Blank

WS 10/6 MC M NE GE

Produkt ID:

1917430000

Pakningsenhed:

600 Styk

WS, Terminal marker, 10 x 6 mm, Pitch in mm (P): 6.00 Weidmueller, Allen-Bradley, yellow

Datablad Downloads

WS 10/6 MC M NE GN

Produkt ID:

1917420000

Pakningsenhed:

600 Styk

WS, Terminal marker, 10 x 6 mm, Pitch in mm (P): 6.00 Weidmueller, Allen-Bradley, green

Datablad Downloads

WS 10/6 M MC NE WS

Produkt ID:

1818400000

Pakningsenhed:

600 Styk

WS, Terminal marker, 10 x 6 mm, Pitch in mm (P): 6.00 Weidmueller, Allen-Bradley, white

Datablad Downloads

WS 10/6 MC NE WS 5CRDX120

Produkt ID:

1828450000

Pakningsenhed:

600 Styk

WS, Terminal marker, 10 x 6 mm, Pitch in mm (P): 6.00 Weidmueller, Allen-Bradley, white

Datablad Downloads

Er tilbehør til

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESSolid-state relays3...33 V DC 2 A output version (actuator)Tension-clamp connection

TOZ 24VDC ACT

Produkt ID:

1391690000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24 V DC ±20 % , Rated switching voltage: 3...33 V DC, Continuous current: 2 A, Tension-clamp connection

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESSolid-state relays3...48 V DC 0.1 A output versionsPUSH IN connection

TOP 12VDC 48VDC0.1A

Produkt ID:

2618600000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 12 V DC ±20 % , Rated switching voltage: 3... 48 V DC, Continuous current: 0.1 A, PUSH IN

Datablad Downloads

TOP 24VDC 48VDC0.1A

Produkt ID:

2618790000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24 V DC ±20 % , Rated switching voltage: 3... 48 V DC, Continuous current: 0.1 A, PUSH IN

Datablad Downloads

TOP 24-230VUC 48VDC0,1A ED2

Produkt ID:

2663070000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24…230 V UC ±10 % , Rated switching voltage: 3... 48 V DC, Continuous current: 0.1 A, PUSH IN

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESSolid-state relays3...33 V DC 2 A output versionsScrew connection

TOS 5VDC 24VDC2A

Produkt ID:

1127140000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 5 V DC ±20 % , Rated switching voltage: 3...33 V DC, Continuous current: 2 A, Screw connection

Datablad Downloads

TOS 24VDC 24VDC2A

Produkt ID:

1127170000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24 V DC ±20 % , Rated switching voltage: 3...33 V DC, Continuous current: 2 A, Screw connection

Datablad Downloads

TOS 24-230VUC 24VDC2A

Produkt ID:

1127250000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24…230 V UC ±10 % , Rated switching voltage: 3...33 V DC, Continuous current: 2 A, Screw connection

Datablad Downloads

TOS 24VUC 24VDC2A

Produkt ID:

1127180000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24 V UC ±10 % , Rated switching voltage: 3...33 V DC, Continuous current: 2 A, Screw connection

Datablad Downloads

TOS 12VDC 24VDC2A

Produkt ID:

1127150000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 12 V DC ±20 % , Rated switching voltage: 3...33 V DC, Continuous current: 2 A, Screw connection

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESAdditional productsEmpty sockets1 CO contact - 6.4 mm widthPUSH IN connection

TRP 24-230VUC 1CO EMPTY ED2

Produkt ID:

2663030000

Pakningsenhed:

10 Styk

TERMSERIES, Relay socket, Number of contacts: 1, CO contact, Rated control voltage: 24…230 V UC ±10 %, Continuous current: 10 A, PUSH IN

Datablad Downloads

TRP 24VDC 1CO EMPTY

Produkt ID:

2618870000

Pakningsenhed:

10 Styk

TERMSERIES, Relay socket, Number of contacts: 1, CO contact, Rated control voltage: 24 V DC ±20 %, Continuous current: 10 A, PUSH IN

Datablad Downloads

TRP 5VDC 1CO EMPTY

Produkt ID:

2614870000

Pakningsenhed:

10 Styk

TERMSERIES, Relay socket, Number of contacts: 1, CO contact, Rated control voltage: 5 V DC ±20 %, Continuous current: 10 A, PUSH IN

Datablad Downloads

TRP 12VDC 1CO EMPTY

Produkt ID:

2618930000

Pakningsenhed:

10 Styk

TERMSERIES, Relay socket, Number of contacts: 1, CO contact, Rated control voltage: 12 V DC ±20 %, Continuous current: 10 A, PUSH IN

Datablad Downloads

TRP 24VUC 1CO EMPTY

Produkt ID:

2618910000

Pakningsenhed:

10 Styk

TERMSERIES, Relay socket, Number of contacts: 1, CO contact, Rated control voltage: 24 V UC ±10 %, Continuous current: 10 A, PUSH IN

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESElectromechanical relays1 NO actuator versionScrew connection

TRS 24VDC ACT

Produkt ID:

1381900000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, NO contact AgNi, Rated control voltage: 24 V DC ±20 %, Continuous current: 6 A, Screw connection, Test button available: No

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESElectromechanical relays1 CO contactHard gold plated contactsScrew connection

TRS 24-230VUC 1CO AU ED2

Produkt ID:

2662860000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi gold-plated, Rated control voltage: 24…230 V UC ±10 %, Continuous current: 6 A, Screw connection, Test button available: No

Datablad Downloads

TRS 24VDC 1CO AU

Produkt ID:

1123000000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi gold-plated, Rated control voltage: 24 V DC ±20 %, Continuous current: 6 A, Screw connection, Test button available: No

Datablad Downloads

TRS 24VUC 1CO AU

Produkt ID:

1123010000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi gold-plated, Rated control voltage: 24 V UC ±10 %, Continuous current: 6 A, Screw connection, Test button available: No

Datablad Downloads

TRS 5VDC 1CO AU

Produkt ID:

1122980000

Pakningsenhed:

10 empty

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi gold-plated, Rated control voltage: 5 V DC ±20 %, Continuous current: 6 A, Screw connection, Test button available: No

Datablad Downloads

TRS 12VDC 1CO AU

Produkt ID:

1122990000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi gold-plated, Rated control voltage: 12 V DC ±20 %, Continuous current: 6 A, Screw connection, Test button available: No

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESElectromechanical relays1 CO contactAgSnO contactsPUSH IN connection

TRP 24-230VUC 1CO AGSNO ED2

Produkt ID:

2663160000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgSnO, Rated control voltage: 24…230 V UC ±10 %, Continuous current: 6 A, PUSH IN, Test button available: No

Datablad Downloads

TRP 5VDC 1CO AGSNO

Produkt ID:

2614820000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgSnO, Rated control voltage: 5 V DC ±20 %, Continuous current: 6 A, PUSH IN, Test button available: No

Datablad Downloads

TRP 12VDC 1CO AGSNO

Produkt ID:

2617860000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgSnO, Rated control voltage: 12 V DC ±20 %, Continuous current: 6 A, PUSH IN, Test button available: No

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESElectromechanical relays1 CO contactHard gold plated contactsTension clamp connection

TRZ 24VDC 1CO AU

Produkt ID:

1123120000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi gold-plated, Rated control voltage: 24 V DC ±20 %, Continuous current: 6 A, Tension-clamp connection, Test button available: No

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESSolid-state relays24...230 V AC 1 A output versionsTension clamp connection

TOZ 24VUC 230VAC1A

Produkt ID:

1127540000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24 V UC ±10 % , Rated switching voltage: 24...240 V AC, Continuous current: 1 A, Tension-clamp connection

Datablad Downloads

TOZ 24VDC 230VAC1A

Produkt ID:

1127530000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24 V DC ±20 % , Rated switching voltage: 24...240 V AC, Continuous current: 1 A, Tension-clamp connection

Datablad Downloads

TOZ 5VDC 230VAC1A

Produkt ID:

1127510000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 5 V DC ±20 % , Rated switching voltage: 24...240 V AC, Continuous current: 1 A, Tension-clamp connection

Datablad Downloads

TOZ 12VDC 230VAC1A

Produkt ID:

1127520000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 12 V DC ±20 % , Rated switching voltage: 24...240 V AC, Continuous current: 1 A, Tension-clamp connection

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIES-compactElectromechanical relays1 NO contact

TRPL 24-230VUC 1NO

Produkt ID:

2773870000

Pakningsenhed:

10 Styk

TERMSERIES-compact, Relay module, Number of contacts: 1, 1 NO contacts, NO contact AgNi, Rated control voltage: 24…230 V UC ±10 %, Continuous current: 6 A, PUSH IN, Test button available: No

Datablad Downloads

TRPL 120VAC 1NO

Produkt ID:

2773810000

Pakningsenhed:

10 Styk

TERMSERIES-compact, Relay module, Number of contacts: 1, NO contact AgNi, Rated control voltage: 120 V AC ±10 %, Continuous current: 6 A, PUSH IN, Test button available: No

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESAdditional productsTERMSERIES TIMER - Relay modules with timing functionsScrew connection

TRS T 24VDC 1CO M3 EMPTY

Produkt ID:

2639720000

Pakningsenhed:

10 Styk

TERMSERIES, Multifunction timing relay, Empty socket, Number of contacts: 1, CO contact, Rated control voltage: 24 V DC ±20 %, Continuous current: 10 A, Screw connection

Datablad Downloads

TRS T 24VDC 1CO M3

Produkt ID:

2639560000

Pakningsenhed:

10 Styk

TERMSERIES, Multifunction timing relay, Number of contacts: 1, CO contact, AgSnO, Rated control voltage: 24 V DC ±20 %, Continuous current: 6 A, Screw connection

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESAdditional productsTERMSERIES TIMER - Relay modules with timing functionsPUSH IN connection

TRP T 24VDC 1CO M3 EMPTY

Produkt ID:

2639740000

Pakningsenhed:

10 Styk

TERMSERIES, Multifunction timing relay, Empty socket, Number of contacts: 1, CO contact, Rated control voltage: 24 V DC ±20 %, Continuous current: 10 A, PUSH IN

Datablad Downloads

TRP T 24VDC 1CO M3

Produkt ID:

2639730000

Pakningsenhed:

10 Styk

TERMSERIES, Multifunction timing relay, Number of contacts: 1, CO contact, AgSnO, Rated control voltage: 24 V DC ±20 %, Continuous current: 6 A, PUSH IN

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESElectromechanical relays1 CO contactAgNi contacts6 A output versionsScrew connection

TRS 12VDC 1CO

Produkt ID:

1122750000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi, Rated control voltage: 12 V DC ±20 %, Continuous current: 6 A, Screw connection, Test button available: No

Datablad Downloads

TRS 5VDC 1CO

Produkt ID:

1122740000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi, Rated control voltage: 5 V DC ±20 %, Continuous current: 6 A, Screw connection, Test button available: No

Datablad Downloads

TRS 24VDC 1CO

Produkt ID:

1122770000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi, Rated control voltage: 24 V DC ±20 %, Continuous current: 6 A, Screw connection, Test button available: No

Datablad Downloads

TRS 24VUC 1CO

Produkt ID:

1122780000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi, Rated control voltage: 24 V UC ±10 %, Continuous current: 6 A, Screw connection, Test button available: No

Datablad Downloads

TRS 24-230VUC 1CO ED2

Produkt ID:

2662850000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi, Rated control voltage: 24…230 V UC ±10 %, Continuous current: 6 A, Screw connection, Test button available: No

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESAdditional productsEmpty sockets1 CO contact - 6.4 mm widthScrew connection

TRS 12VDC 1CO EMPTY

Produkt ID:

1123230000

Pakningsenhed:

10 Styk

TERMSERIES, Relay socket, Number of contacts: 1, CO contact, Rated control voltage: 12 V DC ±20 %, Continuous current: 10 A, Screw connection

Datablad Downloads

TRS 5VDC 1CO EMPTY

Produkt ID:

1123220000

Pakningsenhed:

10 Styk

TERMSERIES, Relay socket, Number of contacts: 1, CO contact, Rated control voltage: 5 V DC ±20 %, Continuous current: 10 A, Screw connection

Datablad Downloads

TRS 24-230VUC 1CO EMPTY ED2

Produkt ID:

2662870000

Pakningsenhed:

10 Styk

TERMSERIES, Relay socket, Number of contacts: 1, CO contact, Rated control voltage: 24…230 V UC ±10 %, Continuous current: 10 A, Screw connection

Datablad Downloads

TRS 24-230VUC 1CO EMPTY

Produkt ID:

1123330000

Pakningsenhed:

10 Styk

TERMSERIES, Relay socket, Number of contacts: 1, CO contact, Rated control voltage: 24…230 V UC ±10 %, Continuous current: 10 A, Screw connection

Datablad Downloads

TRS 24VDC 1CO EMPTY

Produkt ID:

1123240000

Pakningsenhed:

10 Styk

TERMSERIES, Relay socket, Number of contacts: 1, CO contact, Rated control voltage: 24 V DC ±20 %, Continuous current: 10 A, Screw connection

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESSolid-state relays3...48 V DC 0.1 A output versionsTension clamp connection

TOZ 24-230VUC 48VDC0,1A

Produkt ID:

1127130000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24…230 V UC ±10 % , Rated switching voltage: 3... 48 V DC, Continuous current: 0.1 A, Tension-clamp connection

Datablad Downloads

TOZ 5VDC 48VDC0,1A

Produkt ID:

1127030000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 5 V DC ±20 % , Rated switching voltage: 3... 48 V DC, Continuous current: 0.1 A, Tension-clamp connection

Datablad Downloads

TOZ 12VDC 48VDC0,1A

Produkt ID:

1127040000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 12 V DC ±20 % , Rated switching voltage: 3... 48 V DC, Continuous current: 0.1 A, Tension-clamp connection

Datablad Downloads

TOZ 24VDC 48VDC0,1A

Produkt ID:

1127050000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24 V DC ±20 % , Rated switching voltage: 3... 48 V DC, Continuous current: 0.1 A, Tension-clamp connection

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESSolid-state relays3...48 V DC 0.1 A output versionsScrew connection

TOS 12VDC 48VDC0,1A

Produkt ID:

1126930000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 12 V DC ±20 % , Rated switching voltage: 3... 48 V DC, Continuous current: 0.1 A, Screw connection

Datablad Downloads

TOS 24-230VUC 48VDC0,1A

Produkt ID:

1127020000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24…230 V UC ±10 % , Rated switching voltage: 3... 48 V DC, Continuous current: 0.1 A, Screw connection

Datablad Downloads

TOS 5VDC 48VDC0,1A

Produkt ID:

1126920000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 5 V DC ±20 % , Rated switching voltage: 3... 48 V DC, Continuous current: 0.1 A, Screw connection

Datablad Downloads

TOS 24-230VUC 48VDC0,1A ED2

Produkt ID:

2662910000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24…230 V UC ±10 % , Rated switching voltage: 3... 48 V DC, Continuous current: 0.1 A, Screw connection

Datablad Downloads

TOS 24VDC 48VDC0,1A

Produkt ID:

1126940000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24 V DC ±20 % , Rated switching voltage: 3... 48 V DC, Continuous current: 100 mA, Screw connection

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESElectromechanical relays1 CO contactAgSnO contactsTension clamp connection

TRZ 5VDC 1CO AGSNO

Produkt ID:

2152870000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgSnO, Rated control voltage: 5 V DC ±20 %, Continuous current: 6 A, Tension-clamp connection, Test button available: No

Datablad Downloads

TRZ 24VDC 1CO AGSNO

Produkt ID:

1984550000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgSnO, Rated control voltage: 24 V DC ±20 %, Continuous current: 6 A, Tension-clamp connection, Test button available: No

Datablad Downloads

TRZ 24VUC 1CO AGSNO

Produkt ID:

2152970000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgSnO, Rated control voltage: 24 V UC ±10 %, Continuous current: 6 A, Tension-clamp connection, Test button available: No

Datablad Downloads

TRZ 12VDC 1CO AGSNO

Produkt ID:

2152890000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgSnO, Rated control voltage: 12 V DC ±20 %, Continuous current: 6 A, Tension-clamp connection, Test button available: No

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESSolid-state relays3...33 V DC 2 A output version (actuator)PUSH IN connection

TOP 24VDC ACT

Produkt ID:

2618750000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24 V DC ±20 % , Rated switching voltage: 3...33 V DC, Continuous current: 2 A, PUSH IN

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESSolid-state relays3...33 V DC 2 A output versionsTension clamp connection

TOZ 5VDC 24VDC2A

Produkt ID:

1127270000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 5 V DC ±20 % , Rated switching voltage: 3...33 V DC, Continuous current: 2 A, Tension-clamp connection

Datablad Downloads

TOZ 24-230VUC 24VDC2A

Produkt ID:

1127380000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24…230 V UC ±10 % , Rated switching voltage: 3...33 V DC, Continuous current: 2 A, Tension-clamp connection

Datablad Downloads

TOZ 24VDC 24VDC2A

Produkt ID:

1127290000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24 V DC ±20 % , Rated switching voltage: 3...33 V DC, Continuous current: 2 A, Tension-clamp connection

Datablad Downloads

TOZ 24VUC 24VDC2A

Produkt ID:

1127300000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24 V UC ±10 % , Rated switching voltage: 3...33 V DC, Continuous current: 2 A, Tension-clamp connection

Datablad Downloads

TOZ 12VDC 24VDC2A

Produkt ID:

1127280000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 12 V DC ±20 % , Rated switching voltage: 3...33 V DC, Continuous current: 2 A, Tension-clamp connection

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESElectromechanical relays1 CO contactHard gold plated contactsPUSH IN connection

TRP 5VDC 1CO AU

Produkt ID:

2618060000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi gold-plated, Rated control voltage: 5 V DC ±20 %, Continuous current: 6 A, PUSH IN, Test button available: No

Datablad Downloads

TRP 24VUC 1CO AU

Produkt ID:

2618160000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi gold-plated, Rated control voltage: 24 V UC ±10 %, Continuous current: 6 A, PUSH IN, Test button available: No

Datablad Downloads

TRP 24-230VUC 1CO AU ED2

Produkt ID:

2663020000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi gold-plated, Rated control voltage: 24…230 V UC ±10 %, Continuous current: 6 A, PUSH IN, Test button available: No

Datablad Downloads

TRP 12VDC 1CO AU

Produkt ID:

2618120000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi gold-plated, Rated control voltage: 12 V DC ±20 %, Continuous current: 6 A, PUSH IN, Test button available: No

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESAdditional productsEmpty sockets1 CO contact - 6.4 mm widthTension clamp connection

TRZ 5VDC 1CO EMPTY

Produkt ID:

1123340000

Pakningsenhed:

10 Styk

TERMSERIES, Relay socket, Number of contacts: 1, CO contact, Rated control voltage: 5 V DC ±20 %, Continuous current: 10 A, Tension-clamp connection

Datablad Downloads

TRZ 24VUC 1CO EMPTY

Produkt ID:

1123380000

Pakningsenhed:

10 Styk

TERMSERIES, Relay socket, Number of contacts: 1, CO contact, Rated control voltage: 24 V UC ±10 %, Continuous current: 10 A, Tension-clamp connection

Datablad Downloads

TRZ 24VDC 1CO EMPTY

Produkt ID:

1123370000

Pakningsenhed:

10 Styk

TERMSERIES, Relay socket, Number of contacts: 1, CO contact, Rated control voltage: 24 V DC ±20 %, Continuous current: 10 A, Tension-clamp connection

Datablad Downloads

TRZ 12VDC 1CO EMPTY

Produkt ID:

1123350000

Pakningsenhed:

10 Styk

TERMSERIES, Relay socket, Number of contacts: 1, CO contact, Rated control voltage: 12 V DC ±20 %, Continuous current: 10 A, Tension-clamp connection

Datablad Downloads

TRZ 24-230VUC 1CO EMPTY

Produkt ID:

1123450000

Pakningsenhed:

10 Styk

TERMSERIES, Relay socket, Number of contacts: 1, CO contact, Rated control voltage: 24…230 V UC ±10 %, Continuous current: 10 A, Tension-clamp connection

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESSolid-state relays24...230 V AC 1 A output versionsScrew connection

TOS 24-230VUC 230VAC1A ED2

Produkt ID:

2662930000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24…230 V UC ±10 % , Rated switching voltage: 24...240 V AC, Continuous current: 1 A, Screw connection

Datablad Downloads

TOS 24-230VUC 230VAC1A

Produkt ID:

1127500000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24…230 V UC ±10 % , Rated switching voltage: 24...240 V AC, Continuous current: 1 A, Screw connection

Datablad Downloads

TOS 5VDC 230VAC1A

Produkt ID:

1127390000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 5 V DC ±20 % , Rated switching voltage: 24...240 V AC, Continuous current: 1 A, Screw connection

Datablad Downloads

TOS 12VDC 230VAC1A

Produkt ID:

1127400000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 12 V DC ±20 % , Rated switching voltage: 24...240 V AC, Continuous current: 1 A, Screw connection

Datablad Downloads

TOS 24VDC 230VAC1A

Produkt ID:

1127410000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24 V DC ±20 % , Rated switching voltage: 24...240 V AC, Continuous current: 1 A, Screw connection

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESElectromechanical relays1 CO contactAgNi contacts6 A output versionsTension clamp connection

TRZ 5VDC 1CO

Produkt ID:

1122860000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi, Rated control voltage: 5 V DC ±20 %, Continuous current: 6 A, Tension-clamp connection, Test button available: No

Datablad Downloads

TRZ 24VDC 1CO

Produkt ID:

1122880000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi, Rated control voltage: 24 V DC ±20 %, Continuous current: 6 A, Tension-clamp connection, Test button available: No

Datablad Downloads

TRZ 12VDC 1CO

Produkt ID:

1122870000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi, Rated control voltage: 12 V DC ±20 %, Continuous current: 6 A, Tension-clamp connection, Test button available: No

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESElectromechanical relays1 CO contactAgSnO contactsScrew connection

TRS 5VDC 1CO AGSNO

Produkt ID:

2152860000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgSnO, Rated control voltage: 5 V DC ±20 %, Continuous current: 6 A, Screw connection, Test button available: No

Datablad Downloads

TRS 24VUC 1CO AGSNO

Produkt ID:

2152940000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgSnO, Rated control voltage: 24 V UC ±10 %, Continuous current: 6 A, Screw connection, Test button available: No

Datablad Downloads

TRS 24VDC 1CO AGSNO

Produkt ID:

1984540000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgSnO, Rated control voltage: 24 V DC ±20 %, Continuous current: 6 A, Screw connection, Test button available: No

Datablad Downloads

TRS 24-230VUC 1CO AGSNO ED2

Produkt ID:

2663000000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgSnO, Rated control voltage: 24…230 V UC ±10 %, Continuous current: 6 A, Screw connection, Test button available: No

Datablad Downloads

TRS 12VDC 1CO AGSNO

Produkt ID:

2152880000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgSnO, Rated control voltage: 12 V DC ±20 %, Continuous current: 6 A, Screw connection, Test button available: No

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESSolid-state relays3...33 V DC 2 A output versionsPUSH IN connection

TOP 24VUC 24VDC2A

Produkt ID:

2618730000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24 V UC ±10 % , Rated switching voltage: 3...33 V DC, Continuous current: 2 A, PUSH IN

Datablad Downloads

TOP 24-230VUC 24VDC2A ED2

Produkt ID:

2663080000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24…230 V UC ±10 % , Rated switching voltage: 3...33 V DC, Continuous current: 2 A, PUSH IN

Datablad Downloads

TOP 5VDC 24VDC2A

Produkt ID:

2618810000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 5 V DC ±20 % , Rated switching voltage: 3...33 V DC, Continuous current: 2 A, PUSH IN

Datablad Downloads

TOP 12VDC 24VDC2A

Produkt ID:

2618820000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 12 V DC ±20 % , Rated switching voltage: 3...33 V DC, Continuous current: 2 A, PUSH IN

Datablad Downloads

TOP 24VDC 24VDC2A

Produkt ID:

2618720000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24 V DC ±20 % , Rated switching voltage: 3...33 V DC, Continuous current: 2 A, PUSH IN

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESSolid-state relays24...230 V AC 1 A output versionsPUSH IN connection

TOP 12VDC 230VAC1A

Produkt ID:

2618380000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 12 V DC ±20 % , Rated switching voltage: 24...240 V AC, Continuous current: 1 A, PUSH IN

Datablad Downloads

TOP 24-230VUC 230VAC1A ED2

Produkt ID:

2663090000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24…230 V UC ±10 % , Rated switching voltage: 24...240 V AC, Continuous current: 1 A, PUSH IN

Datablad Downloads

TOP 24VUC 230VAC1A

Produkt ID:

2618350000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24 V UC ±10 % , Rated switching voltage: 24...240 V AC, Continuous current: 1 A, PUSH IN

Datablad Downloads

TOP 24VDC 230VAC1A

Produkt ID:

2618420000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 24 V DC ±20 % , Rated switching voltage: 24...240 V AC, Continuous current: 1 A, PUSH IN

Datablad Downloads

TOP 5VDC 230VAC1A

Produkt ID:

2614850000

Pakningsenhed:

10 Styk

TERMSERIES, Solid-state relay, Rated control voltage: 5 V DC ±20 % , Rated switching voltage: 24...240 V AC, Continuous current: 1 A, PUSH IN

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESElectromechanical relays1 CO contactAgNi contacts6 A output versionsPUSH IN connection

TRP 24VDC 1CO

Produkt ID:

2618000000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi, Rated control voltage: 24 V DC ±20 %, Continuous current: 6 A, PUSH IN, Test button available: No

Datablad Downloads

TRP 12VDC 1CO

Produkt ID:

2618180000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi, Rated control voltage: 12 V DC ±20 %, Continuous current: 6 A, PUSH IN, Test button available: No

Datablad Downloads

TRP 5VDC 1CO

Produkt ID:

2614830000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi, Rated control voltage: 5 V DC ±20 %, Continuous current: 6 A, PUSH IN, Test button available: No

Datablad Downloads

TRP 24-230VUC 1CO ED2

Produkt ID:

2663010000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi, Rated control voltage: 24…230 V UC ±10 %, Continuous current: 6 A, PUSH IN, Test button available: No

Datablad Downloads

Relay Modules & Solid-State RelaysUniversal rangeTERMSERIESElectromechanical relays1 NO actuator version with test button

TRS 24VDC ACT PB

Produkt ID:

2855850000

Pakningsenhed:

10 Styk

TERMSERIES, Relay module, Number of contacts: 1, NO contact AgSnO, Rated control voltage: 24 V DC ±20 %, Continuous current: 6 A, Screw connection, Test button available: Yes

Datablad Downloads

Populære kategorier

Interessante links

Løsninger

Connectivity

Electronics

Automation & Software

Workplace & Accessories

Assembly

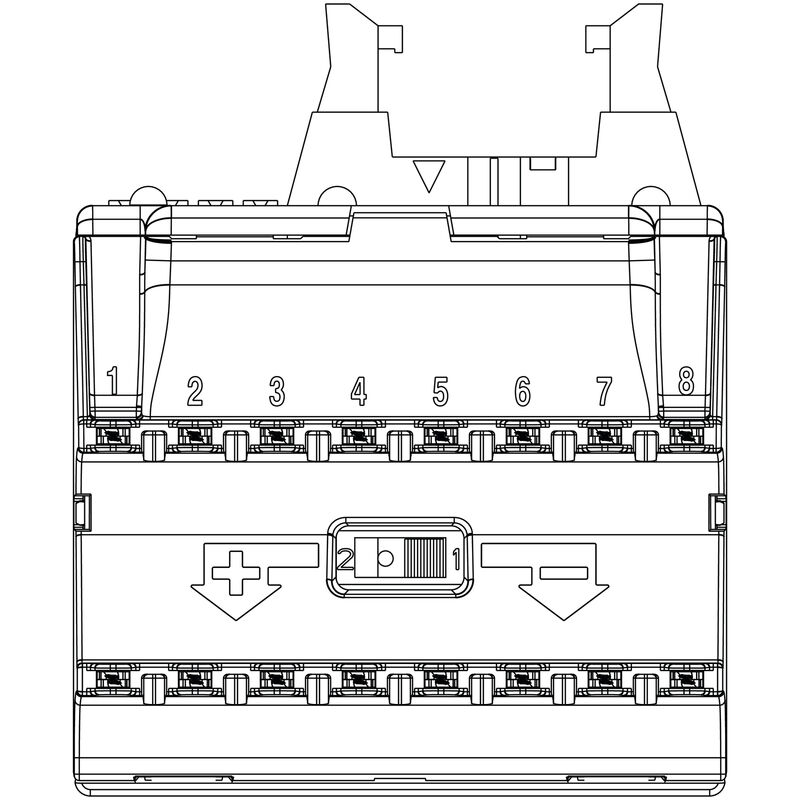

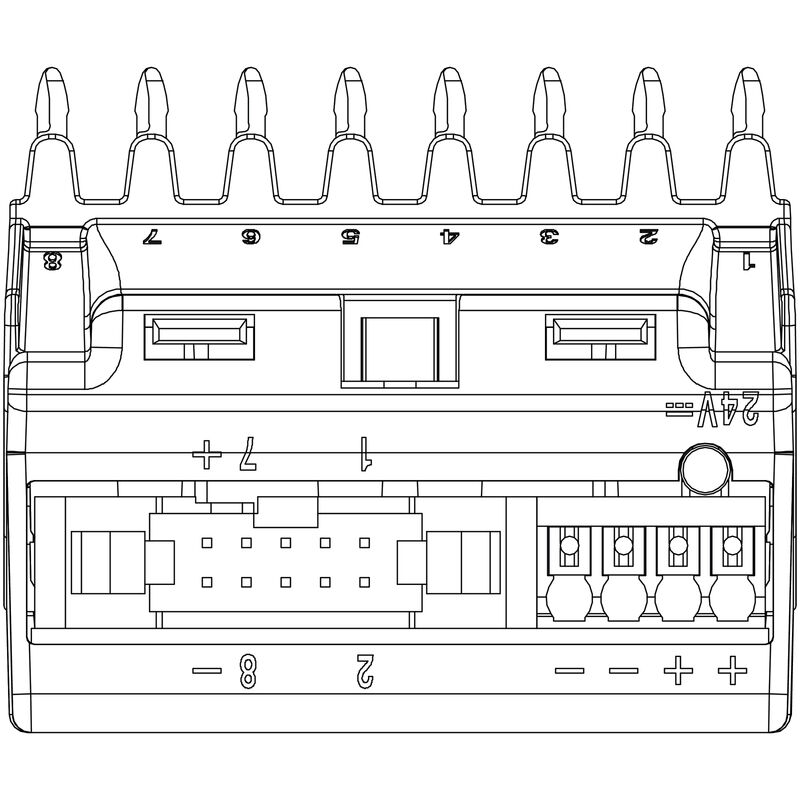

TIA F10

Egenskaber

Tilbehør

Er tilbehør til
