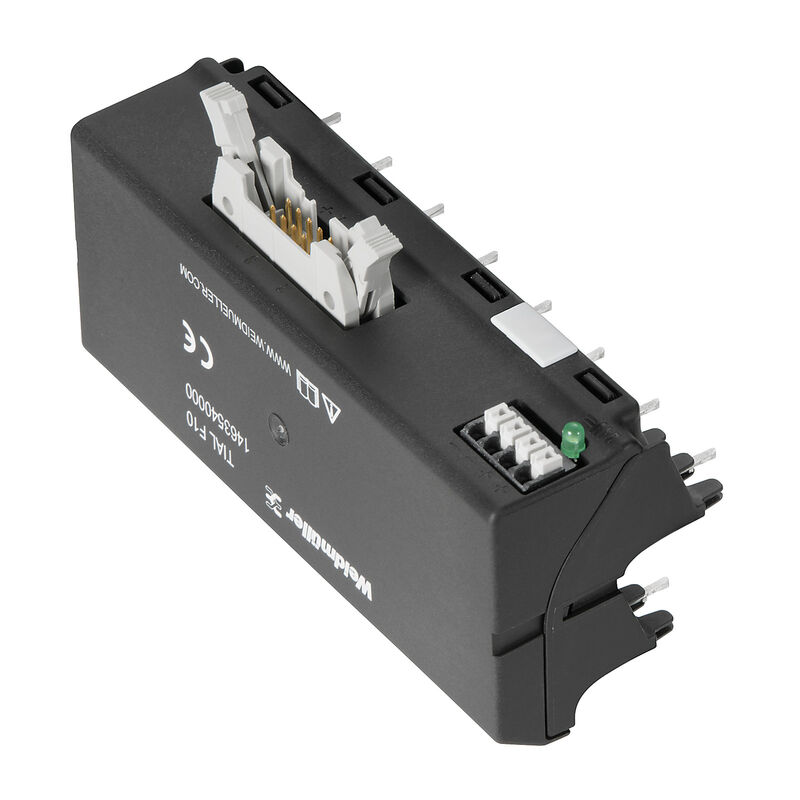

TIAL F10 — Product image

Similar to illustration

Download datablad Anvendte produkter

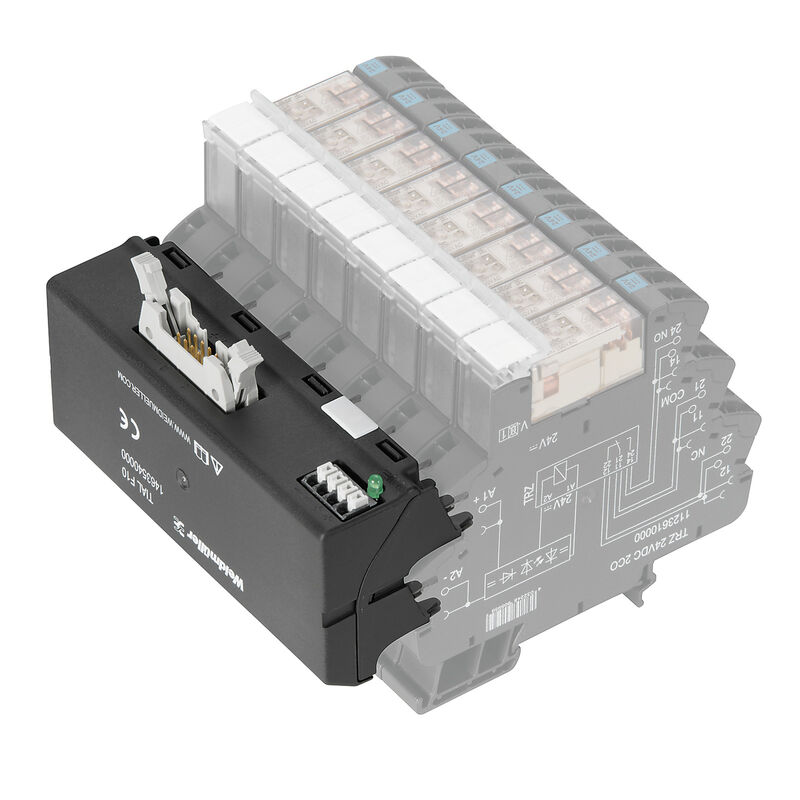

TIAL F10

TERMSERIES, Adapter, 10-pole plug according to DIN EN 60603-13, long locking lever, Number of signal paths: 8, Rated voltage DC : 24 V, Rated current (per signal path): 125 mA

Produkt ID 1463540000

Egenskaber

General ordering data

Version	TERMSERIES, Adapter, 10-pole plug according to DIN EN 60603-13, long locking lever, Number of signal paths: 8, Rated voltage DC : 24 V, Rated current (per signal path): 125 mA
Order No.	1463540000
Type	TIAL F10
GTIN (EAN)	4050118323559
Qty.	1 Styk

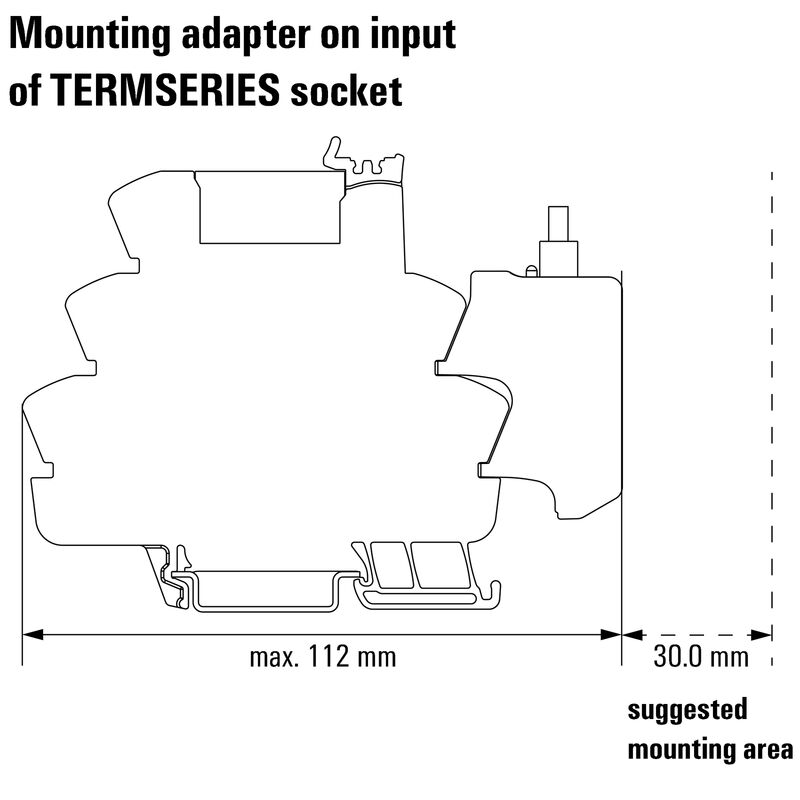

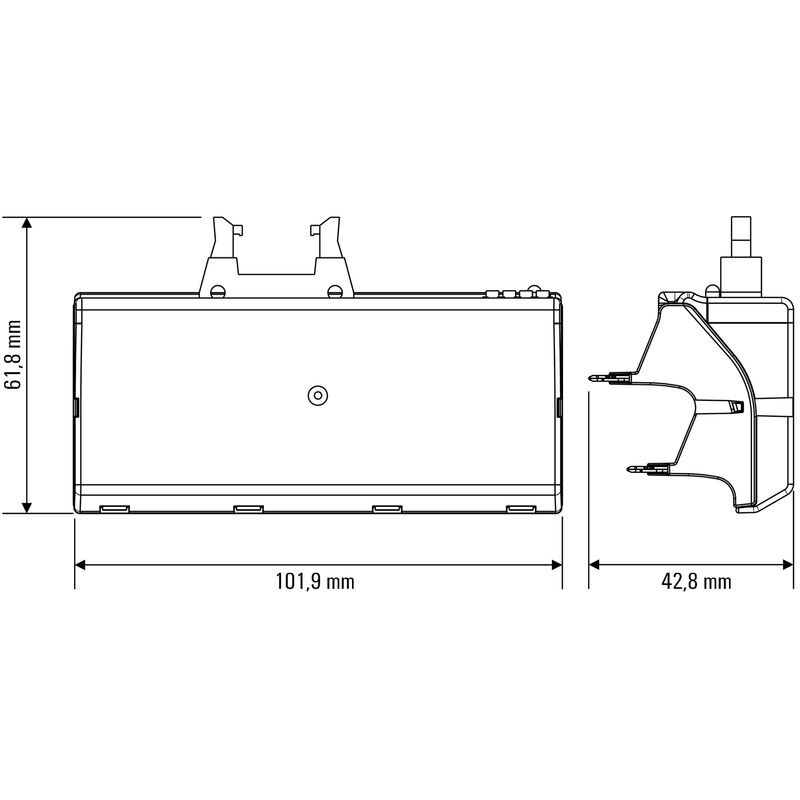

Dimensions and weights

Depth	62 mm
Depth (inches)	2,441 inch
Height	43 mm
Height (inches)	1,693 inch
Width	102 mm
Width (inches)	4,016 inch
Net weight	74,15 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...60 °C
Humidity	5...95% (indoor), T_u = 40°C, without condensation

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	7cI
REACH SVHC	No SVHC above 0.1 wt%

Signals

Rated voltage DC	24 V
DC Voltage, max.	30 V
Rated current (per signal path)	125 mA
Current (per signal path), max.	1 A
Total current of all signals, max.	1 A
Number of signal paths	8

General data

Colour	black
UL94 flammability rating component	Component: Housing UL94 flammability rating: V-0

Insulation coordination

Rated voltage	32 V
Pollution severity	2
Surge voltage category	III
Impulse withstand voltage	1.5 kV
Protection degree	IP20 in installed state

Further details of approvals / standards

Certificate No. (DNV)	TAA00001E5
Certificate no. (cULus)	E141197

Connection data (supply)

Wire connection method	PUSH IN
Number of terminals	4 (+,+,−,−)
Clamping range, rated connection, min.	0,13 mm²
Clamping range, rated connection, max.	1,5 mm²
Blade size (supply)	0.6 x 3.5 mm

Downloads

Approval/Certificate/Document of Conformity	[EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35613)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_46754)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1463540000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1463540000)
User Documentation	[Beipackzettel / Package Insert – de/en](https://mdcop.weidmueller.com/mediadelivery/asset/900_35624) [TEMRSERIES Adapter SPS Interface Kabel - Deutsch](https://mdcop.weidmueller.com/mediadelivery/asset/900_73883) [TERMSERIES Adapters PLC interface cables - English](https://mdcop.weidmueller.com/mediadelivery/asset/900_73884)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002780
ETIM 7.0	EC002780
ETIM 8.0	EC002780
ETIM 9.0	EC002780
ECLASS 9.0	27-14-11-52
ECLASS 9.1	27-14-11-52
ECLASS 10.0	27-14-11-52
ECLASS 11.0	27-14-11-52
ECLASS 12.0	27-14-11-52
ECLASS 13.0	27-14-11-52
ECLASS 14.0	27-14-11-52

Approvals

Approvals	![CE](/picture/CE.gif) ![CULUS](/picture/CULUS.gif) ![DETNORVER](/picture/DETNORVER.gif) ![UKCA](/picture/UKCA.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E141197
