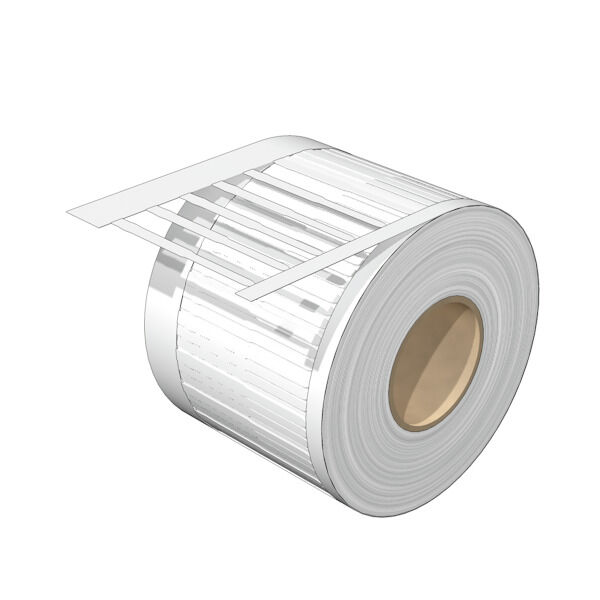

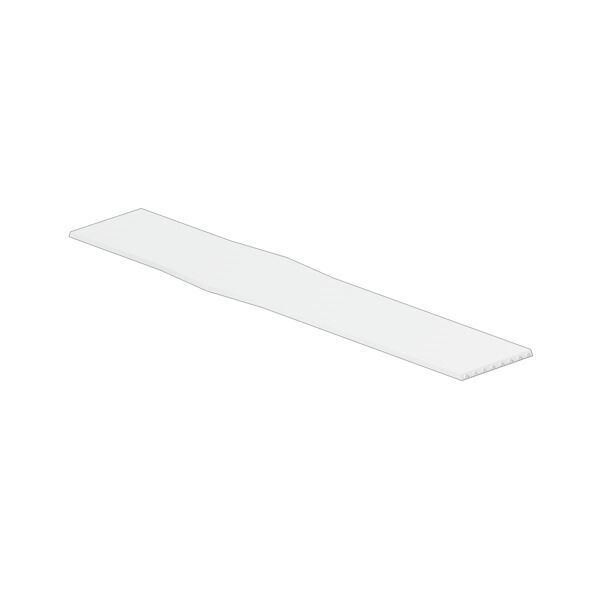

TM-I, Insert markers, 1.3 - 35 mm, 23 x 4 mm, white

Ürün No. 2005510000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 3 İlgili ürünler 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
TM-I, Insert markers, 1.3 - 35 mm, 23 x 4 mm, white
Order No.
2005510000
Type
TM-I 23 MM WS
GTIN (EAN)
4050118390094
Qty.
2.000 adet

Dimensions and weights

Height
23 mm
Height (inches)
0,906 inch
Width
4 mm
Width (inches)
0,157 inch
Net weight
0,16 g

Temperatures

Operating temperature range
-40...150 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Anzahl je Rolle
2000
Barevný
white
Halogen
No
kompatibler Drucker
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
Operating temperature range, max.
150 °C
Orientation of print
horizontal and vertical
Rozsah provozní teploty
-40...150 °C
Rozsah provozní teploty, min.
-40 °C
Tištěné znaky
without
Type of printing
neutral
UL 94 flammability rating
HB
Width
4 mm
Základní materiál
Polyester

Conductor and cable markers

Conductor cross-section, max.
70 mm²
Conductor O.D.
1.3 - 35 mm
Conductor O.D., max.
35 mm
Conductor O.D., min.
1,3 mm
Cross-section for connected wire
70 mm²
Halogen
No

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
