Egenskaber

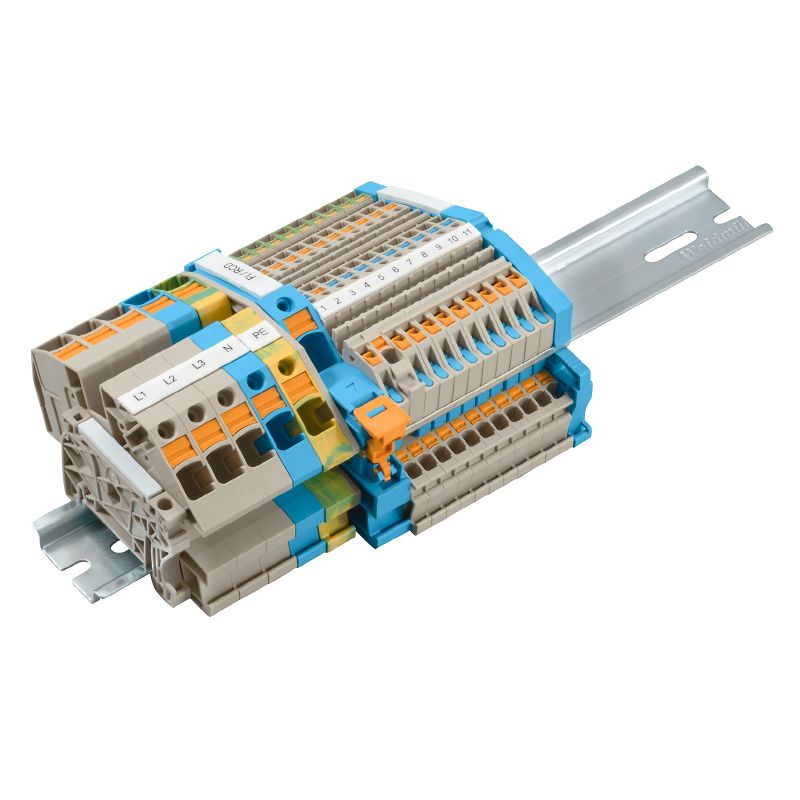

| Version | Multi-tier modular terminal, PUSH IN, Miscellaneous, 16 mm², 800 V, Number of connections: 65, Number of levels: 3, TS 35, V-0, Wemid |
| Order No. | 8000122097 |
| Type | TR BD AITB BB 1RCD |
| GTIN (EAN) | 4099986844155 |
| Qty. | 1 Styk |
| Depth | 50,1 mm |
| Depth (inches) | 1,972 inch |
| Height | 104,6 mm |
| Height (inches) | 4,118 inch |
| Width | 248 mm |
| Width (inches) | 9,764 inch |
| Net weight | 395 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | Miscellaneous |
| Colour of operational elements | Miscellaneous |
| UL 94 flammability rating | V-0 |
| End cover plate required | No |
| Number of potentials | 15 |
| Number of levels | 3 |
| Levels cross-connected internally | No |
| PE connection | Yes |
| Rail | TS 35 |
| N-function | Yes |
| PE function | Yes |
| PEN function | Yes |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Open sides | closed |
| Type of mounting | Direct mounting |
| Blade size, additional connection | 0.6 x 3.5 mm |
| Stripping length , additional connection | 10 mm |
| Blade size | 1.0 x 5.5 mm |
| Clamping range, max. | 16 mm² |
| Clamping range, min. | 0,14 mm² |
| Connection cross-section, finely stranded, max. | 16 mm² |
| Connection cross-section, finely stranded, min. | 0,5 mm² |
| Connection cross-section, stranded, max. | 16 mm² |
| Connection cross-section, stranded, min. | 0,5 mm² |
| Connection direction | top |
| Number of connections | 65 |
| Stripping length | 18 mm |
| Twin wire-end ferrules, max. | 6 mm² |
| Twin wire-end ferrules, min. | 0,5 mm² |
| Type of connection | PUSH IN |
| Wire connection cross section AWG, max. | AWG 4 |
| Wire connection cross section AWG, min. | AWG 18 |
| Wire connection cross section, finely stranded, max. | 16 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Installation advice | Direct mounting |
| Rail | TS 35 |
| Standards |
IEC 60947-7-1
IEC 60947-7-2 |
| Wire connection cross section AWG, max. | AWG 4 |
| Wire connection cross section AWG, min. | AWG 18 |
| Rated cross-section | 16 mm² |
| Rated current | 76 A |
| Current at maximum wires | 76 A |
| Standards |
IEC 60947-7-1
IEC 60947-7-2 |
| Rated voltage (L / L) | 400 V |
| Rated voltage (L / N) | 250 V |
| Rated voltage (L / PE) | 250 V |
| Pollution severity | 3 |
| Surge voltage category | III |
| Engineering Data | [WMC File 8000122097](https://mdcop.weidmueller.com/mediadelivery/asset/900_307860) |
| User Documentation |
[8000122097 - TR BD AITB BB 1RCD DE WEB](https://mdcop.weidmueller.com/mediadelivery/asset/900_313569)
[8000122097 - TR BD AITB BB 1RCD EN WEB](https://mdcop.weidmueller.com/mediadelivery/asset/900_313570) |
| Catalogues | [Catalogues in PDF-format](https://www.weidmueller.com/int/service/technical_product_catalogues.jsp) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-02 |
| ECLASS 14.0 | 27-25-01-02 |
| ROHS | Conform |
