TRPL 120VAC 1NO
TERMSERIES-compact, Relay module, Number of contacts: 1, NO contact AgNi, Rated control voltage: 120 V AC ±10 %, Continuous current: 6 A, PUSH IN, Test button available: No
Produkt ID
2773810000
Egenskaber
| Version | TERMSERIES-compact, Relay module, Number of contacts: 1, NO contact AgNi, Rated control voltage: 120 V AC ±10 %, Continuous current: 6 A, PUSH IN, Test button available: No |
| Order No. | 2773810000 |
| Type | TRPL 120VAC 1NO |
| GTIN (EAN) | 4064675037583 |
| Qty. | 10 Styk |
| Depth | 62,5 mm |
| Depth (inches) | 2,461 inch |
| Height | 89,4 mm |
| Height (inches) | 3,52 inch |
| Width | 6,4 mm |
| Width (inches) | 0,252 inch |
| Net weight | 27 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...60 °C |
| Humidity | 5-85% relative humidity, Tu = 40°C, without condensation |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC |
Lead 7439-92-1
Diboron trioxide 1303-86-2 Lead monoxide 1317-36-8 |
| SCIP | 470858ca-a9af-4b5c-8ba8-7016b38a875f |
| Rated control voltage | 120 V AC ±10 % |
| Rated current AC | 6.8 mA |
| Power rating | 840 mVA |
| Status indicator | Green LED |

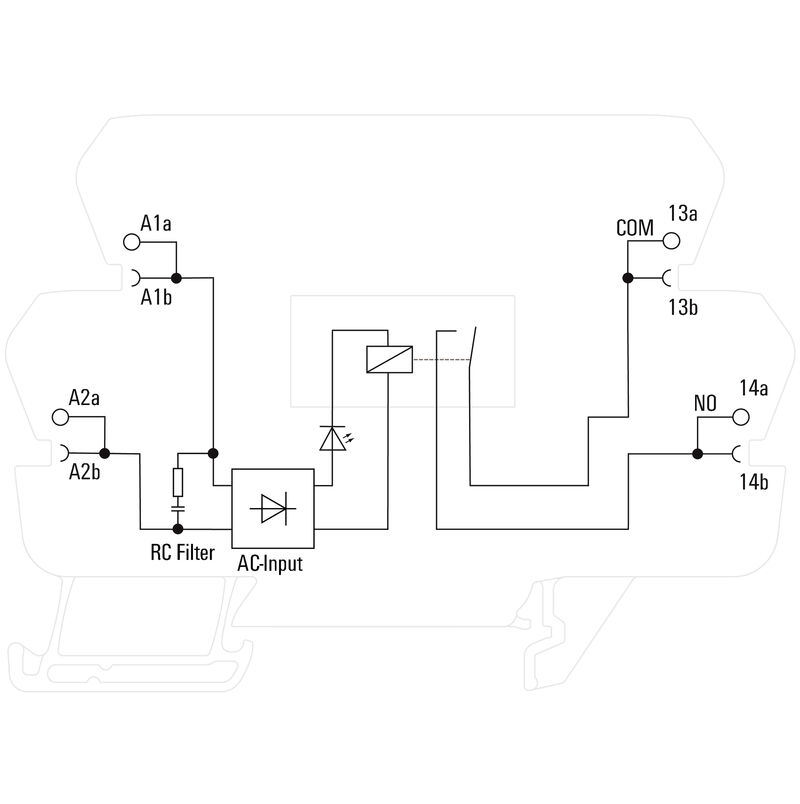

| Protective circuit |
Rectifier
RC element |
| Input frequency | 45 - 65 Hz |
| Rated switching voltage | 250 V AC |
| Continuous current | 6 A |
| Max. switching frequency at rated load | 0,1 Hz |
| Max. switching voltage, AC | 250 V |
| Max. switching voltage, DC | 250 V |
| Min. switching power |
1 mA @ 24 V
10 mA @ 12 V 100 mA @ 5 V |
| Inrush current | 20 A / 20 ms |
| AC switching capacity (resistive), max. | 1500 VA |
| DC switching capacity (resistive), max. | 144 W @ 24 V |
| Switch-on delay | ≤ 16 ms |
| Switch-off delay | ≤ 40 ms |
| Contact type | 1 NO contact (AgNi) |
| Mechanical service life | 5 x 106 switching cycles |
| Operating altitude |
≤ 2000 m
above sea level |
| Rail | TS 35 |
| Test button available | No |
| Mechanical switch position indicator | No |
| Colour | black |
| UL94 flammability rating component |
|
| Rated voltage | 300 V |
| Pollution severity | 2 |
| Surge voltage category | III |
| Clearance and creepage distances for control side - load side | ≥ 6 mm |
| Dielectric strength for control side - load side | 2.5 kVeff |
| Type of isolation at input and output | reinforced insulation |
| Dielectric strength of open contact | 1 kVeff / 1 min |
| Dielectric strength to mounting rail | 4 kVeff / 1 Min. |
| Impulse withstand voltage | 6 kV (1.2/50 µs) |
| Protection degree | IP20 |
| Certificate no. (cULus) | E141197 |
| Wire connection method | PUSH IN |
| Stripping length, rated connection | 9 mm |
| Clamping range, rated connection | 1,5 mm² |
| Clamping range, min. | 0,14 mm² |
| Clamping range, max. | 2,5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire cross-section, solid, min. | 0,5 mm² |
| Wire cross-section, solid, max. | 1,5 mm² |
| Wire cross-section, solid, min. (AWG) | AWG 26 |
| Wire cross-section, solid, max. (AWG) | AWG 14 |
| Wire connection cross section, finely stranded, min. | 0,35 mm² |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire cross-section, finely stranded, max. (AWG) | AWG 14 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,14 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 1,5 mm² |
| Blade size | 0.6 x 3.5 mm |
| Approval/Certificate/Document of Conformity |
[DE PA5600 230411 001 ISS 01](https://mdcop.weidmueller.com/mediadelivery/asset/900_299115)
[UK PA5600 230411 001 ISS 01](https://mdcop.weidmueller.com/mediadelivery/asset/900_301040) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_293921) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2773810000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2773810000&norm=0) |
| User Documentation |
[IS TRPL 6,4MM](https://mdcop.weidmueller.com/mediadelivery/asset/900_290711)
[FL_TERMSERIES-compact_1NOAgNi_LOAD_GUIDE](https://mdcop.weidmueller.com/mediadelivery/asset/900_306015) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001437 |
| ETIM 7.0 | EC001437 |
| ETIM 8.0 | EC001437 |
| ETIM 9.0 | EC001437 |
| ECLASS 9.0 | 27-37-16-01 |
| ECLASS 9.1 | 27-37-16-01 |
| ECLASS 10.0 | 27-37-16-01 |
| ECLASS 11.0 | 27-37-16-01 |
| ECLASS 12.0 | 27-37-16-01 |
| ECLASS 13.0 | 27-37-16-01 |
| ECLASS 14.0 | 27-37-16-01 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
