Download datablad Anvendte produkter

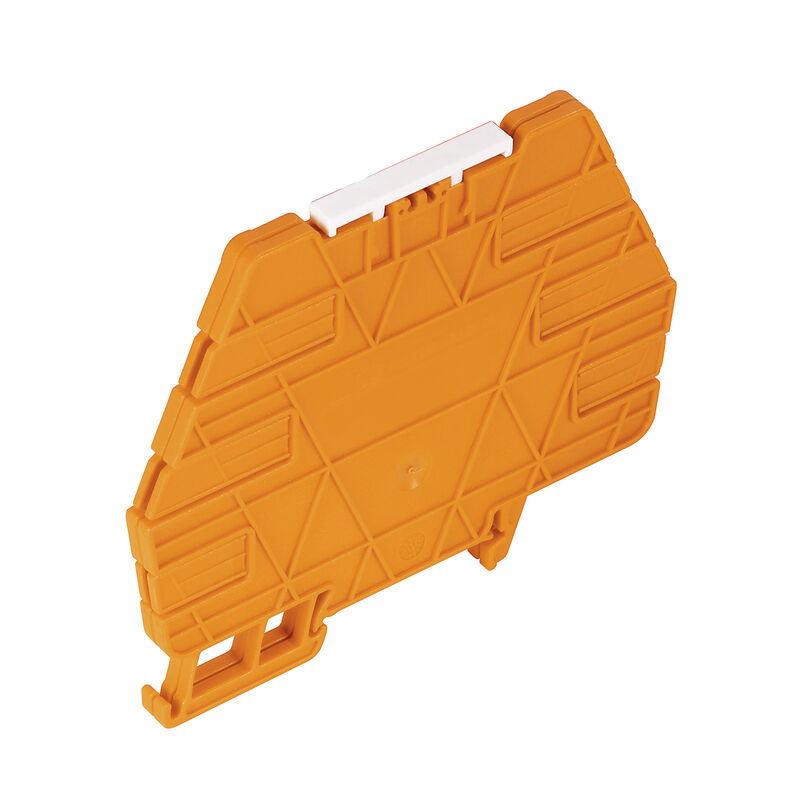

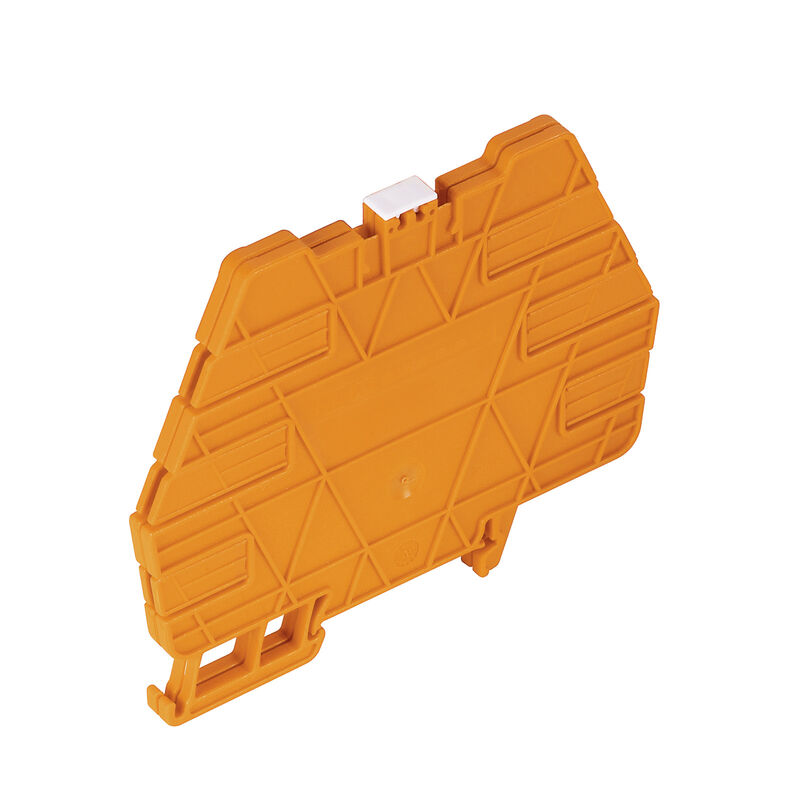

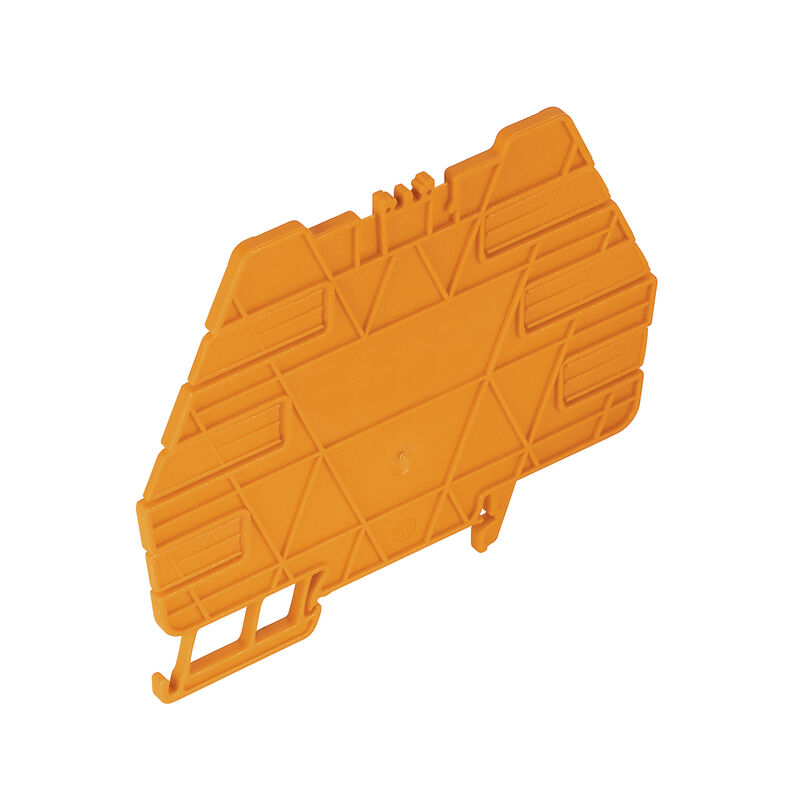

TW TXS/TXZ R3.2

TERMSERIES, Partition plate

Produkt ID 1240800000

Egenskaber

General ordering data

Version	TERMSERIES, Partition plate
Order No.	1240800000
Type	TW TXS/TXZ R3.2
GTIN (EAN)	4050118028188
Qty.	10 Styk

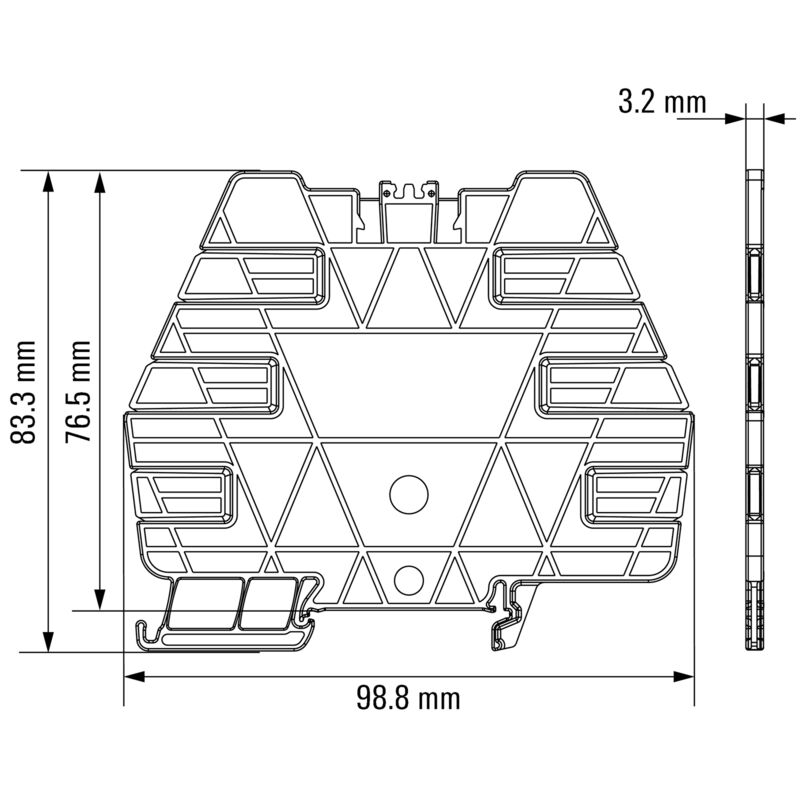

Dimensions and weights

Depth	83,3 mm
Depth (inches)	3,28 inch
Height	98,8 mm
Height (inches)	3,89 inch
Width	3,2 mm
Width (inches)	0,126 inch
Net weight	10,9 g

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

General data

Rail	TS 35
Colour	red
UL94 flammability rating component	Component: Housing UL94 flammability rating: V-0

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_52049)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1240800000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1240800000)
User Documentation	[Beipackzettel / Package Insert – multilingual](https://mdcop.weidmueller.com/mediadelivery/asset/900_93135)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002586
ETIM 7.0	EC002586
ETIM 8.0	EC002586
ETIM 9.0	EC002586
ECLASS 9.1	27-37-16-92
ECLASS 10.0	27-37-16-92
ECLASS 11.0	27-37-16-92
ECLASS 12.0	27-37-16-92
ECLASS 13.0	27-37-16-92
ECLASS 14.0	27-37-16-92

Approvals

ROHS

Conform
