Egenskaber

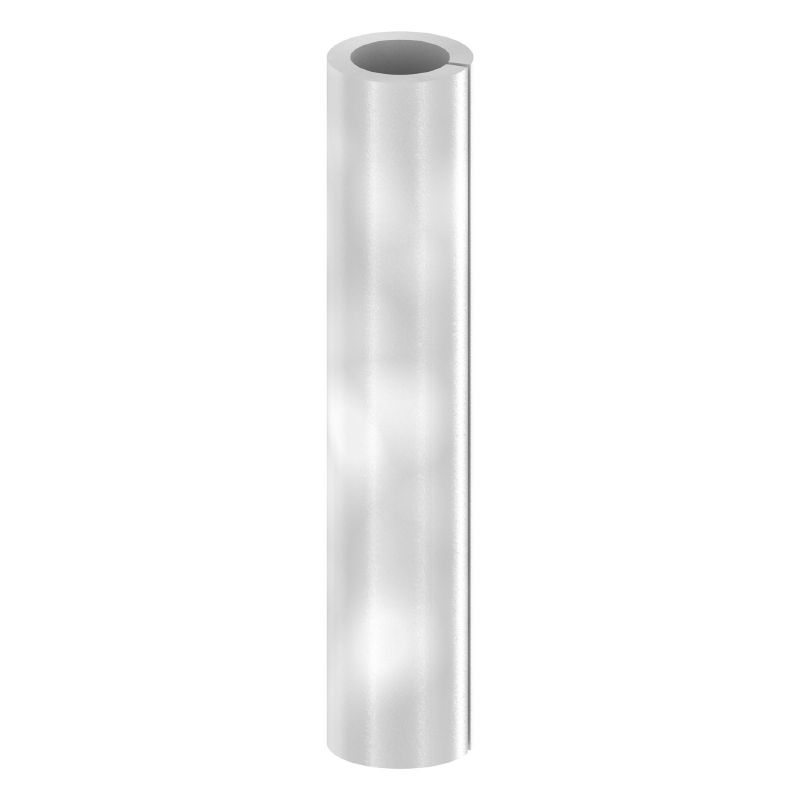

| Version | SAK Series, Contact sleeve |
| Order No. | 0553300000 |
| Type | VH 25/5/3.4 |
| GTIN (EAN) | 4008190095604 |
| Qty. | 100 Styk |
| Depth | 5 mm |
| Depth (inches) | 0,197 inch |
| Height | 25 mm |
| Height (inches) | 0,984 inch |
| Diameter | 5 mm |
| Net weight | 2,099 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 6892c850-b959-4235-b8fe-df5198e99e63 |
| Material | Cu |
| Colour | grey |
| Version | Contact |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | Plugged |
| Diameter | 5 mm |
| Colour | grey |
| Version | Contact |
| Installation advice | Direct mounting |
| Rated current | 19 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_311011) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0553300000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
