Egenskaber
| Version | Surge protection, TN-S, TN-C-S |
| Order No. | 2983600000 |

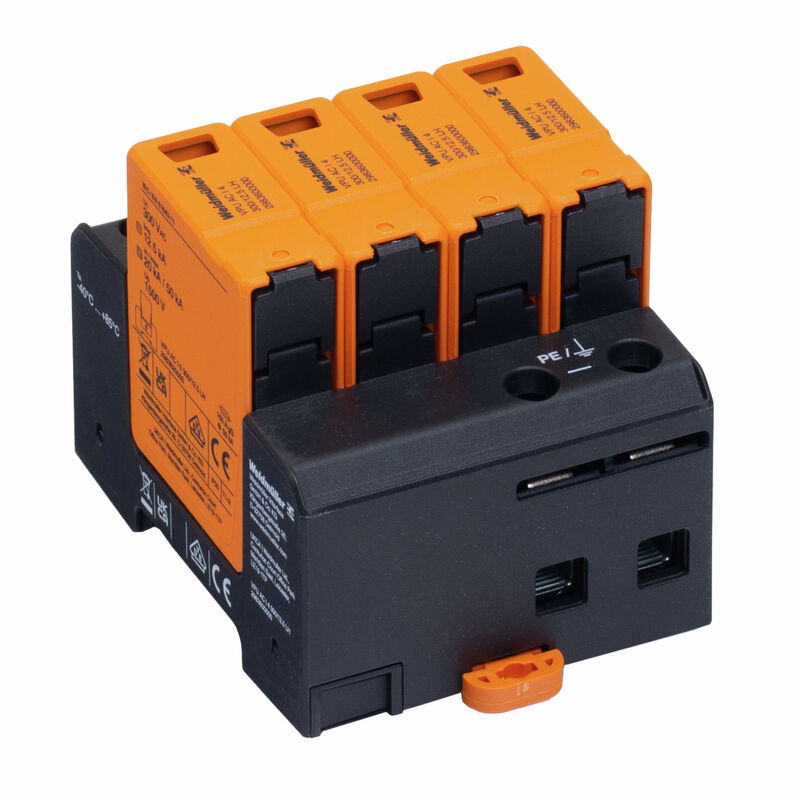

| Type | VPU AC I 4 300/12.5 LH |
| GTIN (EAN) | 4099986839724 |
| Qty. | 1 Styk |
| Depth | 91 mm |
| Depth (inches) | 3,583 inch |
| Height | 70 mm |
| Height (inches) | 2,756 inch |
| Width | 72 mm |
| Width (inches) | 2,835 inch |
| Net weight | 706,5 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...85 °C |
| Humidity at operating temperature | 5 - 95% rel. humidity |
| Humidity | 5 - 95% rel. humidity |
| Connection type | PUSH IN |
| Stripping length | 8 mm |
| Acoustic signal | No |
| Colour |
orange
black |
| Design |
Installation housing
Insta IP 20 |
| Operating altitude | ≤ 4000 m |
| Optical function display | green = OK; red = arrester is defective - replace |
| Protection degree | IP20 in installed state |
| Rail | TS 35 |
| UL 94 flammability rating | V-0 |
| Version | Surge protection |
| Pollution severity | 2 |
| Surge voltage category | III |
| Acoustic signal | No |
| Discharge current Imax (8/20µs) wire-PE | 50 kA |
| Discharge current In (8/20µs) wire-PE | 20 kA |
| Energy coordination (≤10 m) |
Type I
Type II Type III |
| Follow-on current extinguishing capability Ifi | Not available due for technical reasons |
| Frequency range, max. | 60 Hz |
| Frequency range, min. | 50 Hz |
| Fuse |
No Fuse neccessary ≤315 A gG
250 A gG @50 kA Isccr 315 A gG @25 kA Isccr |
| Leakage current at Un | 6 µA |
| Lightning test current Iimp (10/350 µs) (L-PE) | 12,5 kA |
| Lightning test current Iimp (10/350 µs) | 12.5 kA |
| Low voltage network |
TN-S
TN-C-S |
| Mains voltage | 230 V / 400 V |
| Max. continuous voltage, Uc (AC) | 300 V |
| Number of poles | 4 |
| Protection level Up at IN (L/N-PE) | ≤ 1500 V |
| Protection level, UP wire - PE | 1.500 V |
| Protection level, UP wire - wire | 1.500 V |
| Rated voltage (AC) | 230 V |
| Requirements category acc. to IEC 61643-11 |
Type I
Type II |
| Requirements class, acc. to EN 61643-11 |
T1
T2 |
| Short-circuit current rating ISCCR | 50 kA |
| Standards | IEC61643-11, EN61643-11 |
| Temporary surge voltage (over-voltage) - TOV | 337 V |
| Voltage type | AC |
| Stripping length | 15 mm |
| Wire connection method | Screw connection |
| Tightening torque, min. | 2 Nm |
| Tightening torque, max. | 4,5 Nm |
| Clamping range, rated connection | 16 mm² |
| Clamping range, min. | 4 mm² |
| Clamping range, max. | 35 mm² |
| Wire cross-section, solid, min. | 1,5 mm² |
| Wire cross-section, solid, max. | 35 mm² |
| Wire connection cross section, finely stranded, min. | 1,5 mm² |
| Wire connection cross section, finely stranded, max. | 25 mm² |
| Connection cross-section, stranded, min. | 1,5 mm² |
| Connection cross-section, stranded, max. | 35 mm² |
| Time interval | 5 years |
| Product information | For use in DC applications, please use the fuse of SIBA Type NH2XL aR/aSF DC 1500 V |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_316013) |
| User Documentation | [Beipackzettel / Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_90756) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Product-Icon 10 | [MAM_Cumulus:93390](null) |
| ETIM 6.0 | EC000941 |
| ETIM 7.0 | EC000941 |
| ETIM 8.0 | EC000941 |
| ETIM 9.0 | EC000941 |
| ECLASS 9.0 | 27-13-08-05 |
| ECLASS 9.1 | 27-13-08-05 |
| ECLASS 10.0 | 27-13-08-05 |
| ECLASS 11.0 | 27-13-08-05 |
| ECLASS 12.0 | 27-17-90-90 |
| ECLASS 13.0 | 27-17-90-90 |
| Approvals |  |
| ROHS | Conform |
