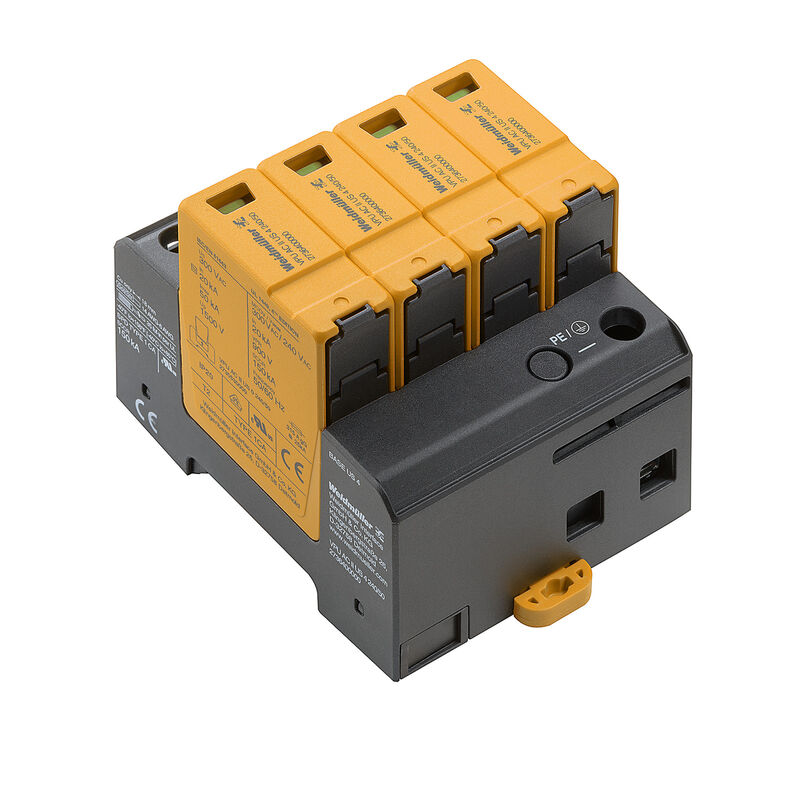

VPU AC II US 4 240/50
VPU AC II US 4 240/50
Electric symbol
Schematic circuit diagram

VPU AC II US 4 240/50

Surge voltage arrester, Low voltage, Surge protection, TN-C-S, TN-S

Produkt ID 2736400000
Åbn i konfiguratoren
Download datablad Engineering Support Product Downloads
Tilbehør 4 Reservedele 2 Anvendte produkter 7
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL Connection data, remote alert General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Connection data Electrical data General data Ratings IECEx/ATEX/cUL Guarantee Classifications

Approvals

Godkännanden
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319263/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certifikat-Nr. (cULus)
E354261

General ordering data

Version
Surge voltage arrester, Low voltage, Surge protection, TN-C-S, TN-S
Заказ №
2736400000
Typ
VPU AC II US 4 240/50
GTIN (EAN)
4050118825770
Förp.
1 Styk

Dimensions and weights

Depth
68 mm
Depth (inches)
2,677 inch
Depth including DIN rail
76 mm
Высота
90 mm
Height (inches)
3,543 inch
Szerokość
72 mm
Width (inches)
2,835 inch
Размеры крепежа, высота
75 mm
Net weight
460 g

Temperatures

Lagertemperatur
-40 °C...85 °C
Ambient temperature
-40 °C…85 °C
Drifttemperatur
-40 °C...85 °C
Humidity
5 - 95% rel. humidity

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Rated data UL

Ambient temperature (operational), max.
85 °C
Rated Voltage UN
240 V
VPR (N-PE)
900 V
MCOV (L-PE)
300 V
MCOV (N-PE)
300 V
SCCR
150 kA
In
20 kA
Category
SPD TYPE 1
Connection cross-section AWG, min.
AWG 14
Connection cross-section AWG, max.
AWG 6
Ambient temperature (operational), min.
-40 °C
MODE
all modes
VPR (L-L)
1.800 V
VPR (L-N)
1.800 V
VPR (L-PE)
900 V
Voltage type
AC
UL Energy Networks
3-phase WYE

Connection data, remote alert

Connection type
PUSH IN

General data

Colour
orange
black
Design
Installation housing; 4TE
Insta IP 20
Mounting rail
TS 35
Operating altitude
≤ 4000 m
Optical function display
green = OK; red = arrester is defective - replace
Protection degree
IP20 in installed state
Segment
Power distribution
UL 94 flammability rating
V-0
Version
Surge protection

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Rated data IEC / EN

Beépített tartalék biztosíték
No
Capacità di estinzione della corrente residua Ifi
Follow current need not be taken into account
Discharge current Imax (8/20µs) N-PE
50 kA
Discharge current In (8/20µs) N-PE
20 kA
Energy coordination (≤10 m)
Type II
Type III
Frequency range, max.
60 Hz
Frequency range, min.
50 Hz
Fuse protection
No Fuse neccessary ≤315 A gG
250 A gG @50 kA Isccr
315 A gG @25 kA Isccr
Leakage current at Un
0,8 mA
Low voltage network
TN-C-S
TN-S
Mains voltage
230 V / 400 V
Max. continuous voltage, Uc (AC)
300 V
Number of poles
4
Protection level Up at IN (L/N-PE)
≤ 1500 V
Rated voltage (AC)
240 V
Requirements category acc. to IEC 61643-11
Type II
Requirements class, acc. to EN 61643-11
T2
T3
Response time / fallback time
≤ 25 ns
Short-circuit current rating ISCCR
50 kA
Signalling contact
No
SPD Typ
T2
Standards
IEC 61643-11
EN 61643-11
UL 1449
NFPA 79
Temporary surge voltage (over-voltage) - TOV
337 V
Voltage type
AC
Vybíjecí proud Imax. (8/20 µs) vodič-PE
50 kA
Vybíjecí proud In (8/20 µs) vodič-PE
20 kA

Connection data

Stripping length
18 mm
Wire connection method
Screw connection
Type of connection
Screw connection
Stripping length, rated connection
18 mm
Tightening torque, min.
3 Nm
Tightening torque, max.
4,5 Nm
Clamping range, rated connection
16 mm²
Clamping range, min.
1,5 mm²
35 mm²
Wire connection cross section AWG, min.
AWG 16
Wire connection cross section AWG, max.
AWG 2
Wire cross-section, solid, min.
1,5 mm²
Wire cross-section, solid, max.
35 mm²
Wire connection cross section, finely stranded, min.
1,5 mm²
Wire connection cross section, finely stranded, max.
35 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
2,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
35 mm²
Connection cross-section, stranded, min.
1,5 mm²
Connection cross-section, stranded, max.
35 mm²

Electrical data

Voltage type
AC

General data

Number of poles
4
Protection degree
IP20 in installed state
Colour
orange
black

Ratings IECEx/ATEX/cUL

Certificate no. (cULus)
E354261

Guarantee

Time interval
5 years

Classifications

ETIM 8.0
EC000941
ETIM 9.0
EC000941
ETIM 10.0
EC000941
ECLASS 14.0
27-17-12-02
ECLASS 15.0
27-17-12-02
