Egenskaber
| Version | Surge voltage arrester, Low voltage, Accessories, Spare arrester, TT nur für N-PE |
| Order No. | 1351980000 |

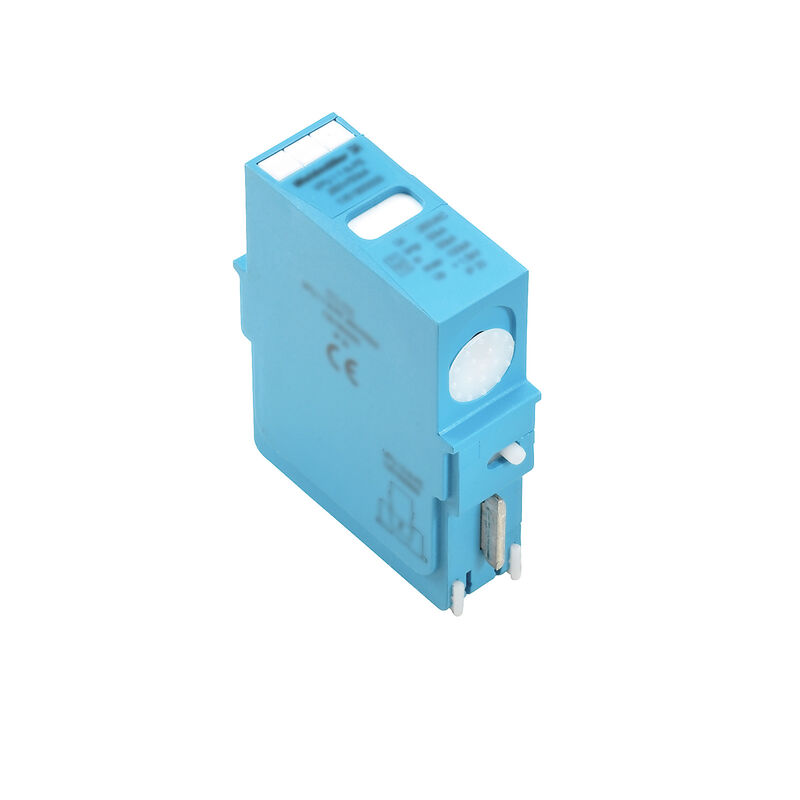

| Type | VPU I 0 N-PE 440V/50KA |
| GTIN (EAN) | 4050118158236 |
| Qty. | 1 Styk |
| Depth | 64 mm |
| Depth (inches) | 2,52 inch |
| Height | 94 mm |
| Height (inches) | 3,701 inch |
| Width | 17,8 mm |
| Width (inches) | 0,701 inch |
| Net weight | 62 g |
| Storage temperature | -40 °C...80 °C |
| Operating temperature | -40 °C...70 |
| Humidity | 5 - 95% rel. humidity |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Colour | blue |
| Design | Insta IP 20 |
| Optical function display | No |
| Protection degree | IP20 |
| Segment | Power distribution |
| UL 94 flammability rating | V-0 |
| Version | Spare arrester |
| Pollution severity | 2 |
| Surge voltage category | IV |
| Discharge current Imax (8/20µs) N-PE | 100 kA |
| Discharge current In (8/20µs) N-PE | 50 kA |
| Energy coordination (≤10 m) |
Type I
Type II Type III |
| Frequency range, max. | 60 Hz |
| Frequency range, min. | 50 Hz |
| Fuse | Not required |
| Leakage current at Un | 1 µA |
| Lightning test current, Iimp (10/350 µs) (N-PE) | 50 kA |
| Low voltage network | TT nur für N-PE |
| Max. continuous voltage, Uc (N-PE) | 440 V |
| Number of poles | 1 |
| Protection level Up at IN (N-PE) | ≤ 2.7 kV |
| Rated voltage (AC) | 400 V |
| Requirements category acc. to IEC 61643-11 |
Type I
Type II |
| Requirements class, acc. to EN 61643-11 |
T1
T2 |
| Response time | ≤ 100 ns |
| Standards | IEC61643-11, EN61643-11 |
| Temporary surge voltage (over-voltage) - TOV | 1.200 V |
| Voltage type | AC |
| Type of connection | pluggable |
| Product information |
Only applicable to IT power systems where the earth on the distribution transformer is interconnected with the earth on the consumer side (RE=RA in Figure 44.A1 of IEC 60634-4-44:2018). |
| Approval/Certificate/Document of Conformity | [EU_Konformitätserklärung / EU_Declaration_of_Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_86294) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1351980000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000941 |
| ETIM 7.0 | EC000941 |
| ETIM 8.0 | EC000941 |
| ETIM 9.0 | EC000941 |
| ECLASS 9.0 | 27-13-08-05 |
| ECLASS 9.1 | 27-13-08-05 |
| ECLASS 10.0 | 27-13-08-05 |
| ECLASS 11.0 | 27-13-08-05 |
| ECLASS 12.0 | 27-17-90-90 |
| ECLASS 13.0 | 27-17-90-90 |
| ECLASS 14.0 | 27-17-90-90 |
| Long specification | Spare arrestor for VPU I 0 440 V N-PE-series surge voltage arrestor. The pluggable sparkover gaps made from V0 material can be replaced by trained personnel following a failure. Rated voltage: 440 V N-PE with 50 kA Type: Weidmüller VPU I 0 N-PE 440 V/50 kA Order No.: 1351980000 |
| Short specification | Spare arrester for surge voltage arrester VPU I 0 440 V N-PE series. The pluggable sparkover gaps can be swapped by trained personnel following a failure. Rated voltage: 440 V N-PE with 50 kA Type: Weidmüller VPU I 0 N-PE 440 V/50 kA Order no.: 1351980000 |
| Approvals |  |
| ROHS | Conform |
