Egenskaber
| Order No. | 2857010000 |

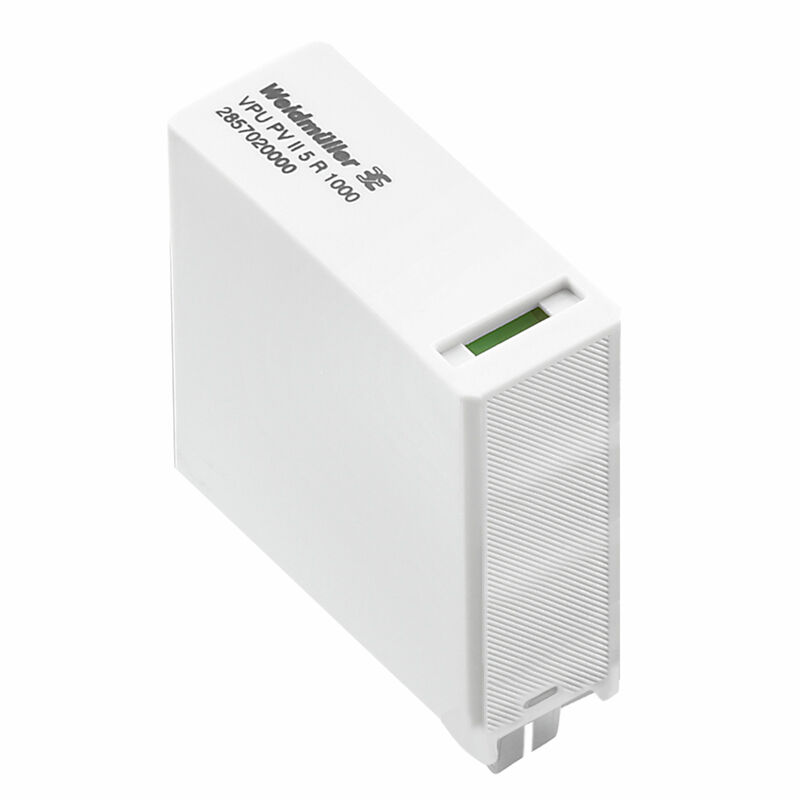

| Type | VPU PV II 5 0 1000 |
| GTIN (EAN) | 4064675537373 |
| Qty. | 9 Styk |
| Height | 44,4 mm |
| Height (inches) | 1,748 inch |
| Width | 17,8 mm |
| Width (inches) | 0,701 inch |
| Net weight | 6,444 g |
| Storage temperature | 85 °C |
| Operating temperature | -40 °C...85 °C |
| Humidity | 5 - 95% rel. humidity |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Ambient temperature (operational), max. | 85 °C |
| Rated Voltage UN | 1.100 V |
| SCCR | 50 kA |
| In | 20 kA |
| Ambient temperature (operational), min. | -40 °C |
| Voltage type | DC |
| Colour | grey |
| Design |
Installation housing; 1TE
Insta IP 20 |
| Operating altitude | < 4,000 m, see operating instructions |
| Optical function display | green = OK; red = arrester is defective - replace |
| Protection degree | IP20 |
| UL 94 flammability rating | V-0 |
| Version | Spare arrester |
| Pollution severity | 2 |
| Surge voltage category | III |
| Discharge current In (8/20 µs) | 20 kA |
| Discharge current, max. (8/20 µs) | 40 kA |
| Operating height in the grounded PV system | ≤ 2000 m |
| Protection level Up (+/- , -/PE , +/PE) | ≤4,2 kV |
| PV system voltage, max. Ucpv | 1.100 V |
| Requirements class | Type II |
| Short-circuit curent ISCPV | 9.000 A |
| Standards |
UL 1449
IEC 61643-31 EN 61643-31 |
| Total discharge current Itotal ( 8/20µs) | 40 |
| Discharge current, max. (8/20 µs) | 40 kA |
| Number of poles | 5 |
| Rated voltage (DC) | 1000 V |
| Response time | ≤ 25 ns |
| Signalling contact | No |
| SPD type | T2 |
| Standards |
UL 1449
IEC 61643-31 EN 61643-31 |
| Voltage type | DC |
| Type of connection | pluggable |
| Stripping length, rated connection | 18 mm |
| Wire cross-section, solid, min. | 1,5 mm² |
| Wire cross-section, solid, max. | 16 mm² |
| Wire connection cross section, finely stranded, min. | 1,5 mm² |
| Wire connection cross section, finely stranded, max. | 25 mm² |
| Connection cross-section, stranded, min. | 1,5 mm² |
| Connection cross-section, stranded, max. | 35 mm² |
| Voltage type | DC |
| Number of poles | 5 |
| Protection degree | IP20 |
| Colour | grey |
| Approval/Certificate/Document of Conformity | [EU_Konformitätserklärung / EU_Declaration_of_Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_290532) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000941 |
| ETIM 7.0 | EC000941 |
| ETIM 8.0 | EC000941 |
| ETIM 9.0 | EC000941 |
| ECLASS 9.1 | 27-13-08-05 |
| ECLASS 10.0 | 27-13-08-05 |
| ECLASS 11.0 | 27-13-08-05 |
| ECLASS 12.0 | 27-17-90-90 |
| ECLASS 13.0 | 27-17-90-90 |
| ECLASS 14.0 | 27-17-90-90 |
| Approvals |  |
| ROHS | Conform |
