Egenskaber

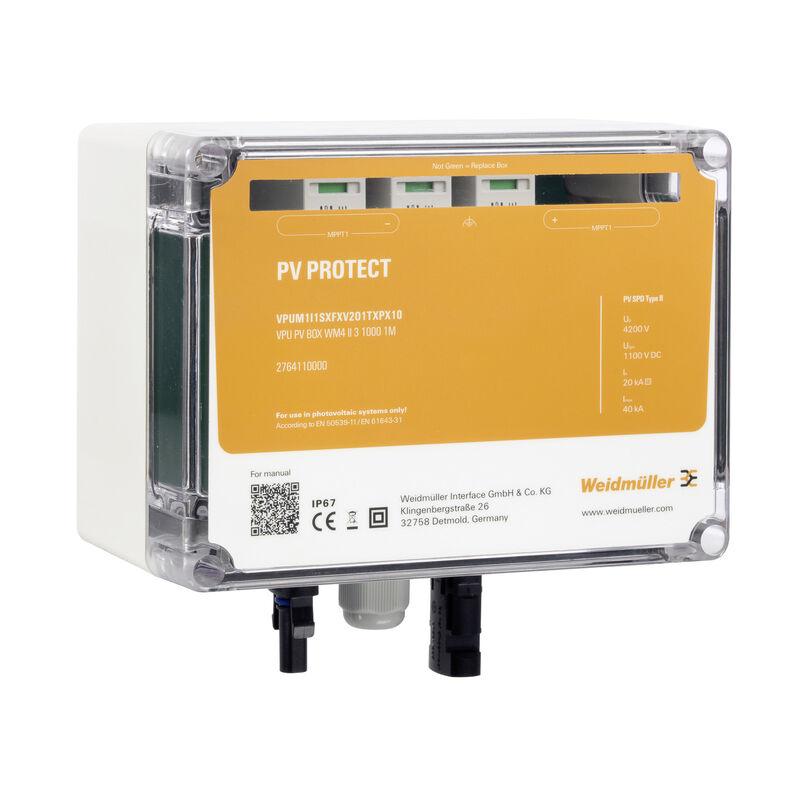

| Version | Surge protection, 1 MPP, Surge protection II, WM4C, 1500 V |
| Order No. | 2764160000 |
| Type | VPUM1I1SXFXV2O1TXPX15 |
| GTIN (EAN) | 4064675016137 |
| Qty. | 1 Styk |
| Depth | 91 mm |
| Depth (inches) | 3,583 inch |
| Height | 160 mm |
| Height (inches) | 6,299 inch |
| Width | 168 mm |
| Width (inches) | 6,614 inch |
| Net weight | 705 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...85 °C |
| Humidity | 5 - 95% rel. humidity |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Connection type string | Plug WM4C |
| Enclosure attachment | Via the four holes under the cover screws |
| Protection degree | IP67 |
| Standards | EN 50539-11 |
| Amount of maximum power points (MPP) | 1 MPP |
| DC Input + & - |
|
| Functional earth connector |
|
| Fuse type | Neither fuse cartridge nor holder |
| Number of string inputs per MPP | 1 |
| Conditions and requirements | EN 50539-11 |
| Discharge current In (8/20 µs) | 15 kA |
| Discharge current, max. (8/20 µs) | 40 kA |
| Operating height in the grounded PV system | ≤ 4000 m |
| Operating height in ungrounded PV system | ≤ 4000 m |
| Protection level Up (+/- , -/PE , +/PE) | ≤ 4.8 kV |
| PV system voltage, max. Ucpv | 1.500 V |
| Requirements class | Type II |
| Short-circuit curent ISCPV | 11 kA |
| Standards | EN 50539-11 |
| Total discharge current Itotal ( 8/20µs) | 50 kA |
| Product information | The SPD in the box cannot be replaced. |
| Approval/Certificate/Document of Conformity | [PV Protect EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_249278) |
| User Documentation | [Manual PV Protect T2](https://mdcop.weidmueller.com/mediadelivery/asset/900_175760) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000941 |
| ETIM 7.0 | EC000941 |
| ETIM 8.0 | EC000941 |
| ETIM 9.0 | EC000941 |
| ECLASS 9.1 | 27-13-08-05 |
| ECLASS 10.0 | 27-13-08-05 |
| ECLASS 11.0 | 27-13-08-05 |
| ECLASS 12.0 | 27-17-90-90 |
| ECLASS 13.0 | 27-17-90-90 |
| ECLASS 14.0 | 27-17-90-90 |
| Long specification | Designation 2: VPU PV BOX WM4 II 3 1500 1M Over voltage protection box for inverters with 1 Mpp tracker, used to protect the DC side. Max. String voltage Uoc:1500 V MPPT1: 1 input, connection via WM4 C plug-in connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2069 Connection of the box in stitch without DC switch 1 surge protection type II Connection of functional earth via cable glands (8-12mmØ) cable cross-section: 16mm² Protection class: IP65 and IP67 Plastic enclosure Dimensions HxWxD:168x160x91 mm According to standard, EN 50539-11: 2013+A1:2014 IEC 61643-31: 2018 |
| Approvals |  |
| ROHS | Conform |
