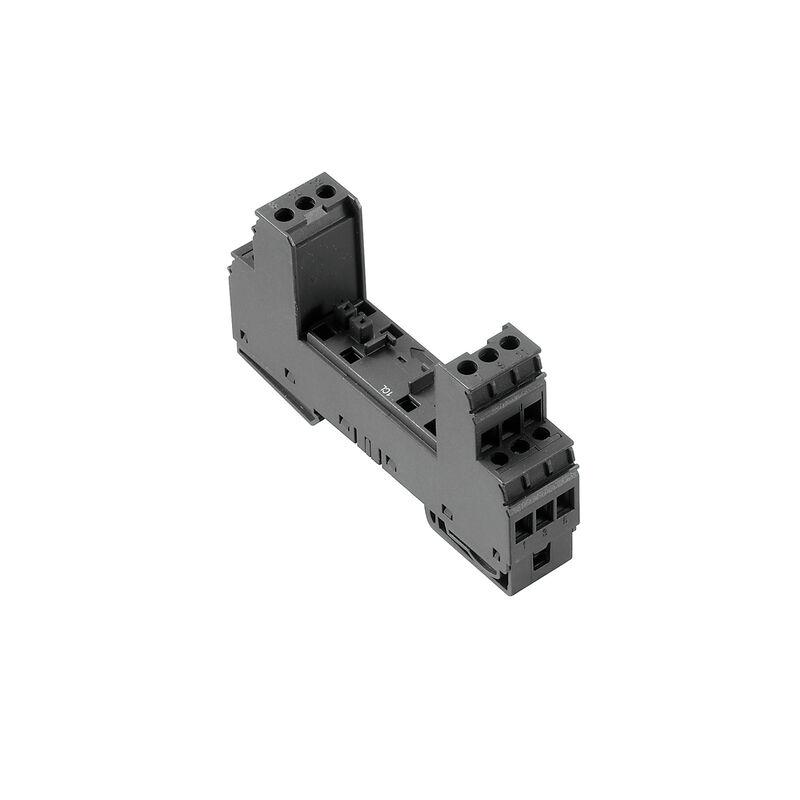

VSPC BASE 1CL

Surge protection, Flange-mounted housing, Flange-mounted housing

Produkt ID 8924730000

Egenskaber

General ordering data

Version	Surge protection, Flange-mounted housing, Flange-mounted housing
Order No.	8924730000
Type	VSPC BASE 1CL
GTIN (EAN)	4032248696376
Qty.	1 Styk

Dimensions and weights

Depth	69 mm
Depth (inches)	2,717 inch
Height	90 mm
Height (inches)	3,543 inch
Width	17,8 mm
Width (inches)	0,701 inch
Net weight	64 g

Temperatures

Storage temperature	-40 °C...80 °C
Operating temperature	-40 °C...70 °C
Humidity	5...96 %

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Rated data UL

Certificate No. (UL)	E311081
UL certificate	[UL 497b Certificate](PDF/E311081VOL1SEC2.pdf)

CSA protection data

Gas group C	IIB
Gas group D	IIA
Gas groups A, B	IIC
Input current, max. I_I	450 mA
Internal inductance, max. L_I	0 µH

General data

Colour	black
Design	Terminal miscellaneous
Optical function display	No
Protection degree	IP20
Rail	TS 35 TS 35 x 7.5
Segment	Measurement - Monitoring - Setting
UL 94 flammability rating	V-0
Version	Flange-mounted housing

Insulation coordination acc. to EN 50178

Pollution severity	2
Surge voltage category	III

Rated data IEC / EN

Rated current I_N	450 mA
Signalling contact	No
Standards	IEC 61643-21 IEC 62305 DIN EN 60079-0.2009 DIN EN 60079-11:2007 DIN EN 60079-26:2007 DIN EN 61241-11:2006
Voltage type	AC/DC

Further details of approvals

GOST certificate

[GOST-Zertifikat](PDF/7950_n1-n4.pdf)

Connection data

Stripping length	7 mm
Type of connection	Screw connection
Stripping length, rated connection	7 mm
Tightening torque, min.	0,5 Nm
Tightening torque, max.	0,8 Nm
Clamping range, min.	0,5 mm²
Clamping range, max.	4 mm²
Wire cross-section, solid, min.	0,5 mm²
Wire cross-section, solid, max.	4 mm²
Wire connection cross section, finely stranded, max.	2,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.	0,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.	2,5 mm²
Connection cross-section, stranded, min.	0,5 mm²
Connection cross-section, stranded, max.	2,5 mm²
Blade size	0.6 x 3.5 mm

Electrical data

Voltage type

AC/DC

General data

Protection degree	IP20
Colour	black

Ratings IECEx/ATEX/cUL

cUL certificate

[cUL Certificate](pdf/VSPC.PDF)

Downloads

Approval/Certificate/Document of Conformity	[SIL Paper](https://mdcop.weidmueller.com/mediadelivery/asset/900_35329) [EU_Konformitätserklärung / EU_Declaration_of_Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_86287)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_55244)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.8924730000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8924730000)
User Documentation	[Beipackzettel / Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_35342)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000472
ETIM 7.0	EC000472
ETIM 8.0	EC000472
ETIM 9.0	EC000472
ECLASS 9.0	27-13-08-03
ECLASS 9.1	27-13-08-07
ECLASS 10.0	27-13-08-03
ECLASS 11.0	27-13-08-03
ECLASS 12.0	27-17-15-91
ECLASS 13.0	27-17-15-91
ECLASS 14.0	27-17-15-91

Tender specification sheets

Long specification

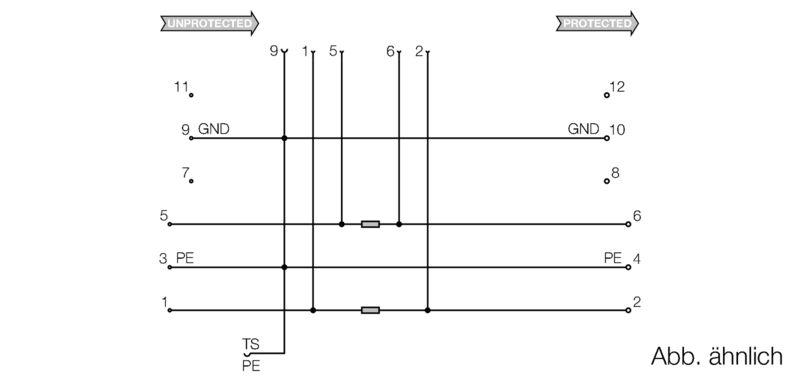

Base element for a single floating-ground powered paired cable. When the base unit is fitted, a simultaneous electrically conducting contact is made between the mounting rail (earth) and the reference potential (ground) of the protection circuit in the plug. Mechanical coding of the base element to the protected plug according to switching type and rated voltage. The base unit is coded itself by the first insertion of a protected plug. Possible to mark all terminals

Short specification

Base element receives a protected plug for one floating-ground powered paired cable with direct earthing.

Approvals

Approvals	![CE](/picture/CE.gif) ![CSAEX](/picture/CSAEX.gif) ![UL](/picture/UL.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (UL)	E311081
