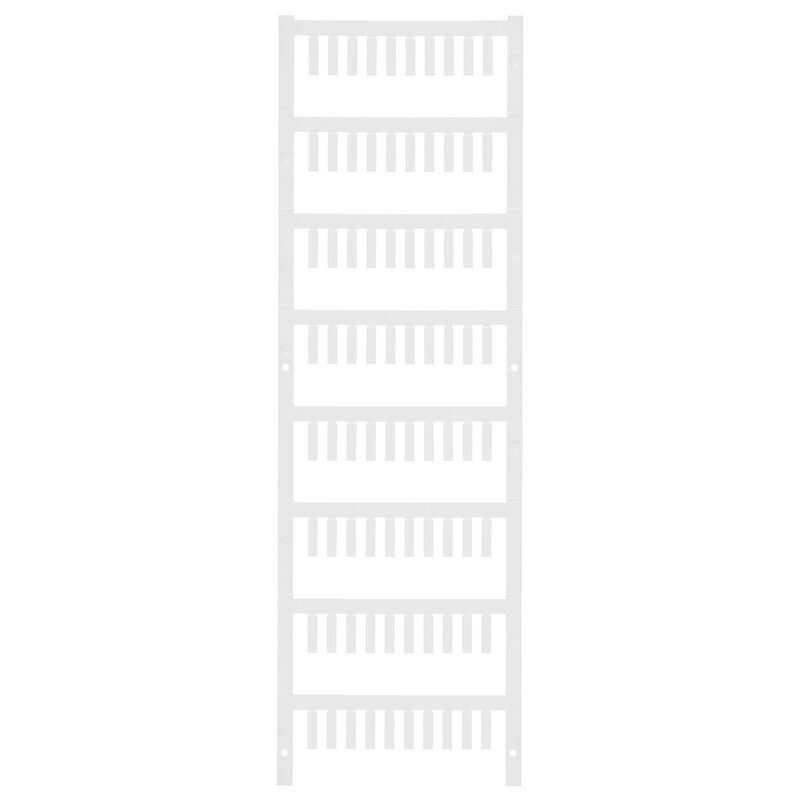

VT SF 1/12 MC SDR V0

VT SF 1/12 MC SDR V0

SlimFix, Conductor and cable markers, 1.7 - 2.1 mm, 12 x 3.2 mm, To customer specification

Ürün No. 1906750000
Veri sayfasını indir Product Downloads Engineering Support
İlgili ürünler 7
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dati generali Ledar- och kabelmärkning Classifications

Approvals

ROHS
Conform

General ordering data

Version
SlimFix, Conductor and cable markers, 1.7 - 2.1 mm, 12 x 3.2 mm, To customer specification
Order No.
1906750000
Type
VT SF 1/12 MC SDR V0
GTIN (EAN)
4032248529063
Qty.
80 adet

Dimensions and weights

Depth
3,2 mm
Depth (inches)
0,126 inch
Height
12 mm
Height (inches)
0,472 inch
Width
3,2 mm
Width (inches)
0,126 inch
Net weight
0,16 g

Temperatures

Operating temperature range
-50...120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.003 kg CO2 eq.

Dati generali

Advice label
색상은 고객 요구사항에 따름(M-Print PRO 파일을 보내 주십시오)
Aufdruckverfahren
MC Laser
Basic material
poliamid 66
Colour
по желанию клиента
Colour of printing
svart
Halogen
No
Jelölők száma kombinációnként
1 MultiCard = Conductor and cable markers
kompatibilis nyomtató
[PRINTJET CONNECT](~/p/2715590000)
Número de señalizadores por unidad de embalaje
  • Form of supply:
    MultiCard
Operating temperature range
-50...120 °C
Operating temperature range, max.
120 °C
Operating temperature range, min.
-50 °C
Orientace tisku
horizontal
Printed characters
Requires M-Print PRO File
Size of labelling field
12 x 3.2 mm
Type of printing
To customer specification
UL 94 flammability rating
V-0
Width
3,2 mm

Ledar- och kabelmärkning

Conductor cross-section, max.
0,75 mm²
Conductor cross-section, min.
0,5 mm²
Conductor O.D.
1.7 - 2.1 mm
Conductor O.D., max.
2,1 mm
Conductor O.D., min.
1,7 mm
Cross-section for connected wire
0.5 - 0.75 mm²
Halogen
No

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
