Egenskaber

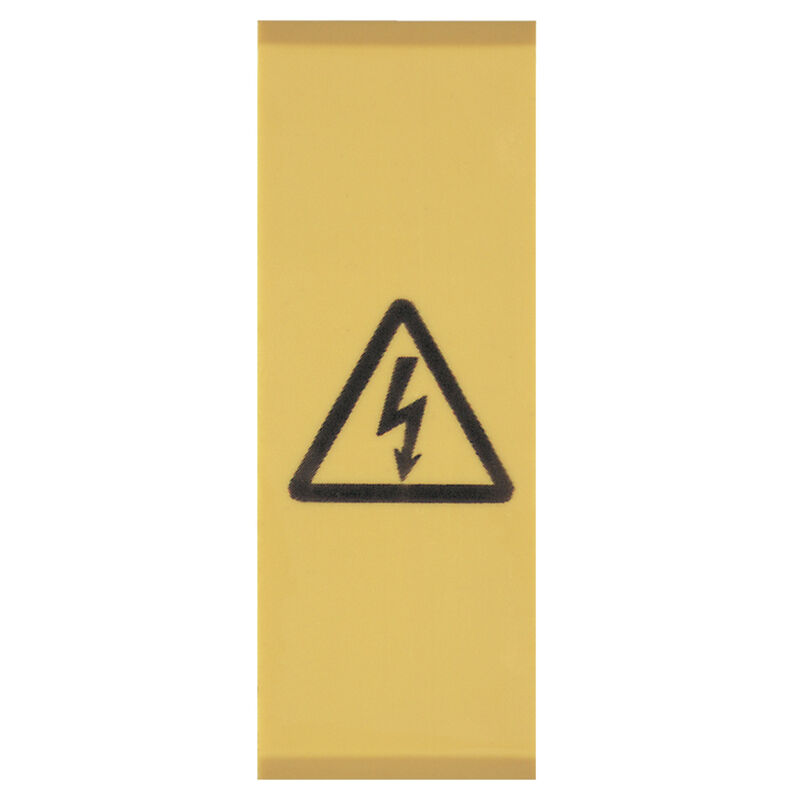

| Version | Terminal marking, yellow, Pitch in mm (P): 18.00, Printed characters: Symbols, horizontal, Width: 18 mm, Height: 48.5 mm |
| Order No. | 9512260000 |
| Type | WAD 20 GE WSD |
| GTIN (EAN) | 4008190403942 |
| Qty. | 10 Styk |
| Depth | 13,43 mm |
| Depth (inches) | 0,529 inch |
| Height | 48,5 mm |
| Height (inches) | 1,909 inch |
| Width | 18 mm |
| Width (inches) | 0,709 inch |
| Net weight | 2,323 g |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | PA 66 |
| Colour | yellow |
| UL 94 flammability rating | V-2 |
| Version | For the terminals |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | Snap-on |
| Pitch in mm (P) | 18 mm |
| Installation advice | Direct mounting |
| Engineering Data |
[CAD data -- 32165_WAD_20_GE_DXF.dxf](https://mdcop.weidmueller.com/mediadelivery/asset/900_38048)
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_74643) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9512260000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9512260000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000761 |
| ETIM 7.0 | EC000761 |
| ETIM 8.0 | EC000761 |
| ETIM 9.0 | EC000761 |
| ECLASS 9.0 | 27-14-11-37 |
| ECLASS 9.1 | 27-14-11-37 |
| ECLASS 10.0 | 27-14-11-37 |
| ECLASS 11.0 | 27-28-11-01 |
| ECLASS 12.0 | 27-28-11-01 |
| ECLASS 13.0 | 27-28-11-01 |
| ECLASS 14.0 | 27-28-11-01 |
| ROHS | Conform |
