Egenskaber

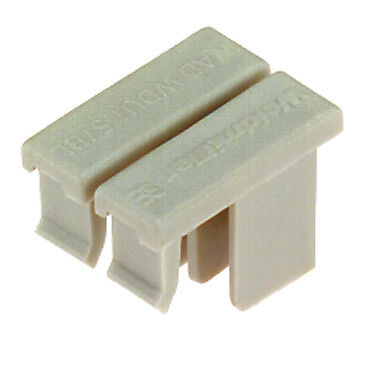

| Version | Terminal cover, dark beige, Wemid, Height: 12.75 mm, Width: 9.48 mm, Depth: 8.85 mm, V-0 |
| Order No. | 1577400000 |
| Type | WAD WDU1.5/BLZ/BLA |
| GTIN (EAN) | 4008190112165 |
| Qty. | 20 Styk |
| Depth | 8,85 mm |
| Depth (inches) | 0,348 inch |
| Height | 12,75 mm |
| Height (inches) | 0,502 inch |
| Width | 9,48 mm |
| Width (inches) | 0,373 inch |
| Net weight | 0,4 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version | For the terminals |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | Snap-on |
| Pitch in mm (P) | 4,5 mm |
| Installation advice | Direct mounting |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data |
[CAD data -- 18502_WAD_WDU1.5-BL_DXF.dxf](https://mdcop.weidmueller.com/mediadelivery/asset/900_38078)
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_74509) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1577400000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1577400000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:1038500000Pakningsenhed:50 Styk
Multi-tier modular terminal, Screw connection, dark beige, 2.5 mm², 400 V, 400 V, Number of connections: 2, Number of levels: 2, TS 35, V-0, Wemid
-
Produkt ID:1027410000Pakningsenhed:50 Styk
Multi-tier modular terminal, Screw connection, dark beige, 2.5 mm², 250 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
-
Produkt ID:1034400000Pakningsenhed:50 Styk
Multi-tier modular terminal, Screw connection, dark beige, 2.5 mm², 250 V, 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid
-
Produkt ID:1038900000Pakningsenhed:100 Styk
Feed-through terminal block, Screw connection, dark beige, 2.5 mm², 21.5 A, 400 V, Number of connections: 1, Number of levels: 1, TS 35, V-0, Wemid, 120 °C
