Egenskaber

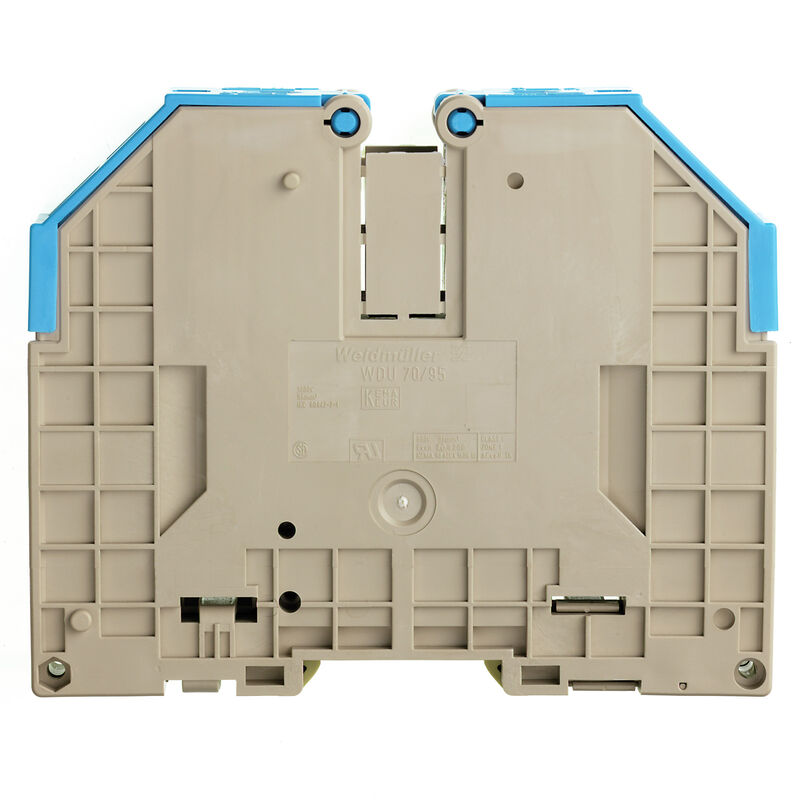

| Version | Feed-through terminal block, Screw connection, blue, 95 mm², 232 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C |
| Order No. | 1024680000 |
| Type | WDU 70/95 BL |
| GTIN (EAN) | 4008190179540 |
| Qty. | 10 Styk |
| Depth | 107 mm |
| Depth (inches) | 4,213 inch |
| Depth including DIN rail | 115,5 mm |
| Height | 132 mm |
| Height (inches) | 5,197 inch |
| Width | 27 mm |
| Width (inches) | 1,063 inch |
| Net weight | 330,19 g |
| Storage temperature | -25 °C...55 °C |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | blue |
| UL 94 flammability rating | V-0 |
| Certificate No. (ATEX) | DEMKO14ATEX1338U |
| Certificate No. (IECEX) | IECEXULD14.0005U |
| Max. voltage (ATEX) | 1100 V |
| Current (ATEX) | 218 A |
| Wire cross section max. (ATEX) | 95 mm² |
| Max. voltage (IECEX) | 1100 V |
| Current (IECEX) | 218 A |
| Wire cross section max. (IECEX) | 95 mm² |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7 | Ex eb II C Gb |
| Ex 2014/34/EU label | II 2 G D |
| Version |
Screw connection
for screwable cross-connection in closed state |
| End cover plate required | No |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | Yes |
| PE function | No |
| PEN function | No |
| Cross-section for connected wire, stranded, two clampable wires, max. | 35 mm² |
| Cross-section for connected wire, stranded, two clampable wires, min. | 16 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max. | 35 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min. | 16 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 16 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 35 mm² |
| Explosion-tested version | Yes |
| Installation advice | Direct mounting |
| Number of similar terminals | 1 |
| Open sides | closed |
| Type of mounting | Snap-on |
| Connection type, additional connection | Screw connection |
| Blade size | S6 (DIN 6911) |
| Clamping range, max. | 120 mm² |
| Clamping range, min. | 13,3 mm² |
| Clamping screw | M 8 |
| Connection cross-section, stranded, max. | 120 mm² |
| Connection cross-section, stranded, min. | 16 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | B12 |
| Number of connections | 2 |
| Stripping length | 30 mm |
| Tightening torque, max. | 12 Nm |
| Tightening torque, min. | 6 Nm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 2/0 |
| Wire connection cross section AWG, min. | AWG 6 |
| Wire connection cross section, finely stranded, max. | 95 mm² |
| Wire connection cross section, finely stranded, min. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 95 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 50 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 16 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 16 mm² |
| Certificate No. (CSA) | 12400-242 |
| Current size B (CSA) | 205 A |
| Current size C (CSA) | 205 A |
| Current size D (CSA) | 5 A |
| Voltage size B (CSA) | 600 V |
| Voltage size C (CSA) | 600 V |
| Voltage size D (CSA) | 600 V |
| Wire cross section max. (CSA) | 00 AWG |
| Wire cross section min. (CSA) | 6 AWG |
| Installation advice | Direct mounting |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 2/0 |
| Wire connection cross section AWG, min. | AWG 6 |
| Rated cross-section | 95 mm² |
| Rated voltage | 1.000 V |
| Rated DC voltage | 1.000 V |
| Rated current | 232 A |
| Current at maximum wires | 232 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0,14 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 7,42 W |
| Pollution severity | 3 |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 00 AWG |
| Conductor size Factory wiring min. (UR) | 6 AWG |
| Conductor size Field wiring max. (UR) | 00 AWG |
| Conductor size Field wiring min. (UR) | 6 AWG |
| Current size C (UR) | 175 A |
| Voltage size C (UR) | 1000 V |
| Approval/Certificate/Document of Conformity |
[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35472)
[IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_39462) [CCC Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_320981) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35991) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_39463) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) [UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253960) [CB Testreport](https://mdcop.weidmueller.com/mediadelivery/asset/900_42060) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_42061) [NEMKO certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152186) [Lloyds Register Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_153734) [POLSKIREJ certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_156118) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253962) [DNV Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_320351) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59657) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1024680000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1024680000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1024680000&norm=0) |
| User Documentation |
[Beipackzettel_WDU70-95_120-150.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_35400)
[NTI WDU/ WPE 70/95](https://mdcop.weidmueller.com/mediadelivery/asset/900_35451) [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) [Instruction](https://mdcop.weidmueller.com/mediadelivery/asset/900_150061) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
| ECLASS 14.0 | 27-25-01-01 |
| Approvals |               |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E60693 |
| Certificate No. (cURusEX) | E184763 |
