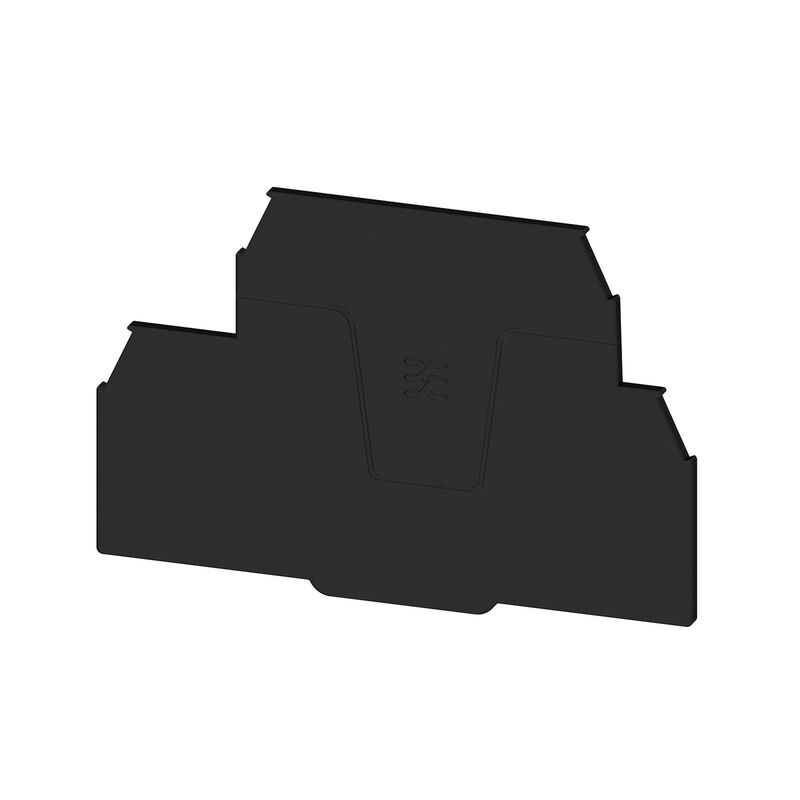

WEP 2T 4 BK

End plate (terminals), black, Height: 95.5 mm, Width: 2 mm, V-0, Wemid

Produkt ID 2894260000

Egenskaber

General ordering data

Version	End plate (terminals), black, Height: 95.5 mm, Width: 2 mm, V-0, Wemid
Order No.	2894260000
Type	WEP 2T 4 BK
GTIN (EAN)	4064675885245
Qty.	20 Styk

Dimensions and weights

Depth	65 mm
Depth (inches)	2,559 inch
Height	95,5 mm
Height (inches)	3,76 inch
Width	2 mm
Width (inches)	0,079 inch
Net weight	5,061 g

Temperatures

Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Wemid
Colour	black
UL 94 flammability rating	V-0

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_301944)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2894260000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000886
ETIM 7.0	EC000886
ETIM 8.0	EC000886
ETIM 9.0	EC000886
ECLASS 9.1	27-14-11-33
ECLASS 10.0	27-14-11-33
ECLASS 11.0	27-14-11-33
ECLASS 12.0	27-14-11-33
ECLASS 13.0	27-25-03-01
ECLASS 14.0	27-25-03-01

Approvals

ROHS

Conform

Tilbehør

MarkersTerminal markersMultiMarkMultiFit

EL KSM 10.6 MM WS 30M

Produkt ID:

2799270000

Pakningsenhed:

1 Styk

Terminal marker, 10.6 x 5 mm, white

Datablad Downloads

Er tilbehør til

Terminal BlocksApplication rangeSignal marshallingClamping yoke technologyModular test-disconnect terminal blocks2-tier4 mm²

W2T 4 DT-FT

Produkt ID:

2893690000

Pakningsenhed:

50 Styk

Test-disconnect terminal, Screw connection, dark beige, 4 mm², 28 A, 500 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid

Datablad Downloads

W2T 4 DT-FT BK

Produkt ID:

2893710000

Pakningsenhed:

50 Styk

Test-disconnect terminal, Screw connection, black, 4 mm², 28 A, 500 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid

Datablad Downloads

W2T 4 DT-FT BL

Produkt ID:

2893700000

Pakningsenhed:

50 Styk

Test-disconnect terminal, Screw connection, blue, 4 mm², 28 A, 500 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid

Datablad Downloads

W2T 4 DTCA-FT BK

Produkt ID:

3019340000

Pakningsenhed:

50 Styk

Test-disconnect terminal, Screw connection, black, 4 mm², 28 A, 500 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid

Datablad Downloads

W2T 4 DTCA-FT DB

Produkt ID:

3019300000

Pakningsenhed:

50 Styk

Test-disconnect terminal, Screw connection, Dark Blue, 4 mm², 28 A, 500 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid

Datablad Downloads

W2T 4 DTCA-FT BL

Produkt ID:

3019320000

Pakningsenhed:

50 Styk

Test-disconnect terminal, Screw connection, Dark Blue, 4 mm², 28 A, 500 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid

Datablad Downloads

W2T 4 DT-FT STB

Produkt ID:

2893720000

Pakningsenhed:

50 Styk

Test-disconnect terminal, Screw connection, dark beige, 4 mm², 28 A, 500 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid

Datablad Downloads

W2T 4 DT-FT-PE

Produkt ID:

2893730000

Pakningsenhed:

50 Styk

Test-disconnect terminal, Screw connection, dark beige, 4 mm², 28 A, 500 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid

Datablad Downloads

W2T 4 DTCA-FT-PE BK

Produkt ID:

3019360000

Pakningsenhed:

50 Styk

Test-disconnect terminal, Screw connection, black, 4 mm², 28 A, 500 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid

Datablad Downloads

W2T 4 DT-FT-PE STB

Produkt ID:

2893740000

Pakningsenhed:

50 Styk

Test-disconnect terminal, Screw connection, dark beige, 4 mm², 28 A, 500 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid

Datablad Downloads

Terminal BlocksApplication rangeSignal marshallingClamping yoke technologyFeed-through terminal blocks2 Tier4mm²

W2T 4 FT-FT

Produkt ID:

3019380000

Pakningsenhed:

50 Styk

Multi-tier modular terminal, Screw connection, dark beige, 4 mm², 500 V, 500 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid

Datablad Downloads

W2T 4 FT-FT-PE

Produkt ID:

3019400000

Pakningsenhed:

50 Styk

Multi-tier modular terminal, Screw connection, dark beige, 4 mm², 500 V, 500 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid

Datablad Downloads

Terminal BlocksApplication rangeSignal marshallingClamping yoke technologyFuse terminal blocks2-tier4 mm²

W2T 4 FS-FT-PE 10-36V BK STB

Produkt ID:

2894110000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 36 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT BK

Produkt ID:

2893870000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 500 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT-PE 100-250V BK

Produkt ID:

2894090000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 250 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT 60-150V BL

Produkt ID:

2893950000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, blue, 4 mm², 6.3 A, 150 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT 100-250V BK STB

Produkt ID:

2894040000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 250 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT 60-150V DB

Produkt ID:

2893940000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, dark beige, 4 mm², 6.3 A, 150 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT 60-150V BK STB

Produkt ID:

2894030000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 150 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT 60-150V BK

Produkt ID:

2893960000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 150 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT 100-250V BK

Produkt ID:

2893990000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 250 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT 10-36V DB

Produkt ID:

2893880000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, dark beige, 4 mm², 6.3 A, 36 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT-PE 30-70V BK STB

Produkt ID:

2894120000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 70 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT-PE BK STB

Produkt ID:

2894100000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 500 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT DB

Produkt ID:

2893850000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, dark beige, 4 mm², 6.3 A, 500 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT 100-250V BL

Produkt ID:

2893980000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, blue, 4 mm², 6.3 A, 250 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT BL

Produkt ID:

2893860000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, blue, 4 mm², 6.3 A, 500 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT-PE 100-250V BK STB

Produkt ID:

2894140000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 250 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT 30-70V BL

Produkt ID:

2893920000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, blue, 4 mm², 6.3 A, 70 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT-PE 60-150V BK STB

Produkt ID:

2894130000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 150 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT BK STB

Produkt ID:

2894000000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 500 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT 100-250V DB

Produkt ID:

2893970000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, dark beige, 4 mm², 6.3 A, 250 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT 10-36V BK STB

Produkt ID:

2894010000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 36 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT 10-36V BL

Produkt ID:

2893890000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, blue, 4 mm², 6.3 A, 36 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT-PE BK

Produkt ID:

2894050000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 500 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT 30-70V BK

Produkt ID:

2893930000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 70 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT-PE 30-70V BK

Produkt ID:

2894070000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 70 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT-PE 60-150V BK

Produkt ID:

2894080000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 150 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT 10-36V BK

Produkt ID:

2893900000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 36 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT 30-70V BK STB

Produkt ID:

2894020000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 70 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT 30-70V DB

Produkt ID:

2893910000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, dark beige, 4 mm², 6.3 A, 70 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads

W2T 4 FS-FT-PE 10-36V BK

Produkt ID:

2894060000

Pakningsenhed:

50 Styk

Fuse terminal, Screw connection, black, 4 mm², 6.3 A, 36 V, Number of connections: 5, Number of levels: 3, TS 35, V-0, Wemid, G-Si. 5 x 20

Datablad Downloads
