Egenskaber

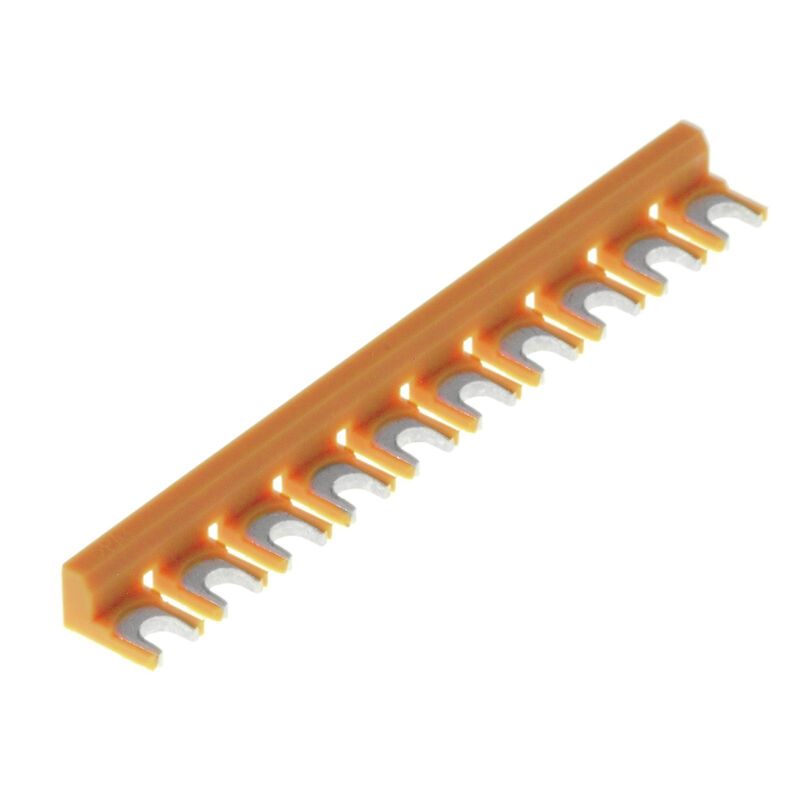

| Version | Cross-connector (terminal), Plugged, orange, 41 A, Number of poles: 10, Pitch in mm (P): 8.00, Insulated: Yes, Width: 77.3 mm |
| Order No. | 1604330000 |
| Type | WKB 1/10 |
| GTIN (EAN) | 4008190129576 |
| Qty. | 20 Styk |
| Depth | 6,1 mm |
| Depth (inches) | 0,24 inch |
| Height | 9,3 mm |
| Height (inches) | 0,366 inch |
| Width | 77,3 mm |
| Width (inches) | 3,043 inch |
| Net weight | 7,525 g |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Polyamide 66 |
| Colour | orange |
| UL 94 flammability rating | V-2 |
| Version | Cross-connector |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | Plugged |
| Type of mounting | when screwed in |
| Pitch in mm (P) | 8 mm |
| Installation advice | Direct mounting |
| Number of poles | 10 |
| Operating temperature range, max. | 100 °C |
| Rated current | 41 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_62233) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1604330000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1604330000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ECLASS 14.0 | 27-25-03-03 |
| ROHS | Conform |
