Egenskaber

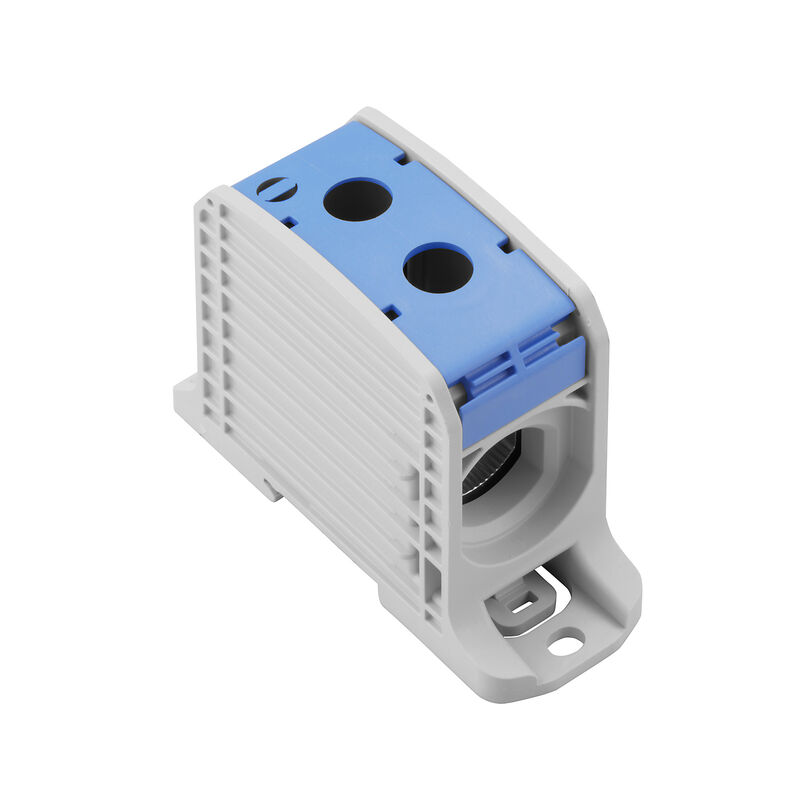

| Version | Potential distributor terminal, Screw connection, blue, 185 mm², 353 A, 1000 V, Number of levels: 1, TS 35, V-0, Wemid |
| Order No. | 2502760000 |
| Type | WPD 132 1X185/1X185 BL |
| GTIN (EAN) | 4050118516586 |
| Qty. | 1 Styk |
| Depth | 73,5 mm |
| Depth (inches) | 2,894 inch |
| Height | 105 mm |
| Height (inches) | 4,134 inch |
| Width | 37,5 mm |
| Width (inches) | 1,476 inch |
| Net weight | 204 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Material | Wemid |
| Colour | blue |
| UL 94 flammability rating | V-0 |
| Certificate No. (ATEX) | CNEX18ATEX0016U |
| Certificate No. (IECEX) | IECEXNEX18.0010U |
| Max. voltage (ATEX) | 1100 V |
| Current (ATEX) | 353 A |
| Wire cross section max. (ATEX) | 185 mm² |
| Max. voltage (IECEX) | 1100 V |
| Current (IECEX) | 353 A |
| Version | Screw connection |
| End cover plate required | No |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| Rail | TS 35 |
| Explosion-tested version | Yes |
| Installation advice | Terminal rail / mounting plate |
| Type of mounting | Snap-on |
| Connection type, additional connection | Screw connection |
| Connection cross-section, stranded, max. | 185 mm² |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Wire connection cross section, finely stranded, max. | 185 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 150 mm² |
| Wire connection cross-section, solid core, max. | 185 mm² |
| Installation advice | Terminal rail / mounting plate |
| Number of poles | 1 |
| Rail | TS 35 |
| Standards |
IEC 60947-7-1
UL 1059 CSA |
| Rated cross-section | 185 mm² |
| Rated voltage | 1.000 V |
| Rated AC voltage | 1.000 V |
| Rated DC voltage | 1.000 V |
| Rated current | 353 A |
| Standards |
IEC 60947-7-1
UL 1059 CSA |
| Volume resistance according to IEC 60947-7-x | 0,09 mΩ |
| Rated impulse withstand voltage | 8 kV |

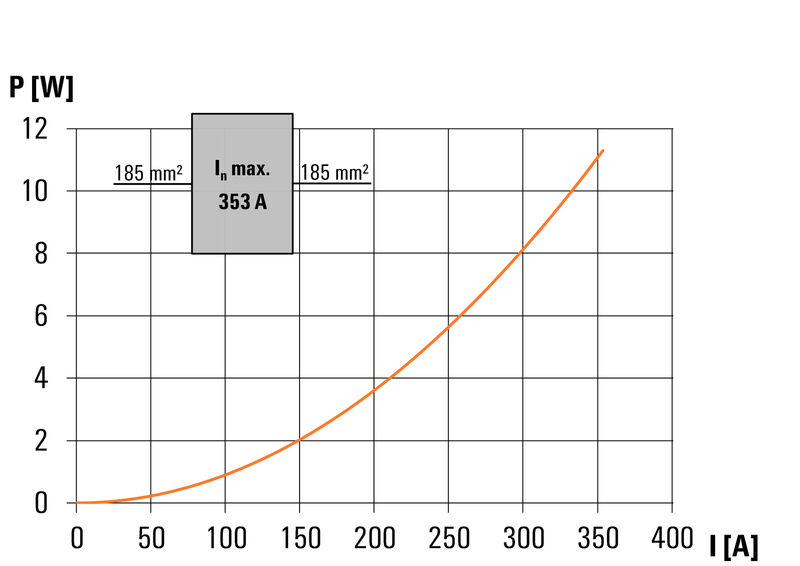

| Power loss in accordance with IEC 60947-7-x | 11,3 W |
| Short-time withstand current resistance | 8/20µs with 50 kA |
| Pollution severity | 3 |
| Surge voltage category | III |
| Product information | You will find additional information in the downloadsection of the onlinecatalogue |
| Approval/Certificate/Document of Conformity |
[UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253932)
[CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89229) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) [FIMKO certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152185) [CCC Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_178482) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_217414) [IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_217415) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253931) [LMP 23.0563U- WPD (Rev. 0)](https://mdcop.weidmueller.com/mediadelivery/asset/900_312468) [DNV Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_320351) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_40469) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_39827) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2502760000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2502760000) |
| User Documentation |
[DATA SHEET WPD 132](https://mdcop.weidmueller.com/mediadelivery/asset/900_48111)
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) [NTI WPD 132](https://mdcop.weidmueller.com/mediadelivery/asset/900_105981) [Manual - How to connect aluminum wires in WPD-Terminal blocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_317919) [Torque_Conductor_Connection_Data_WPD_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_319361) [Drehmoment_Leiteranschlussdaten_WPD_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_319362) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-19 |
| ECLASS 14.0 | 27-25-01-19 |
| Approvals |        |
| ROHS | Conform |
