WQB-PEN 35

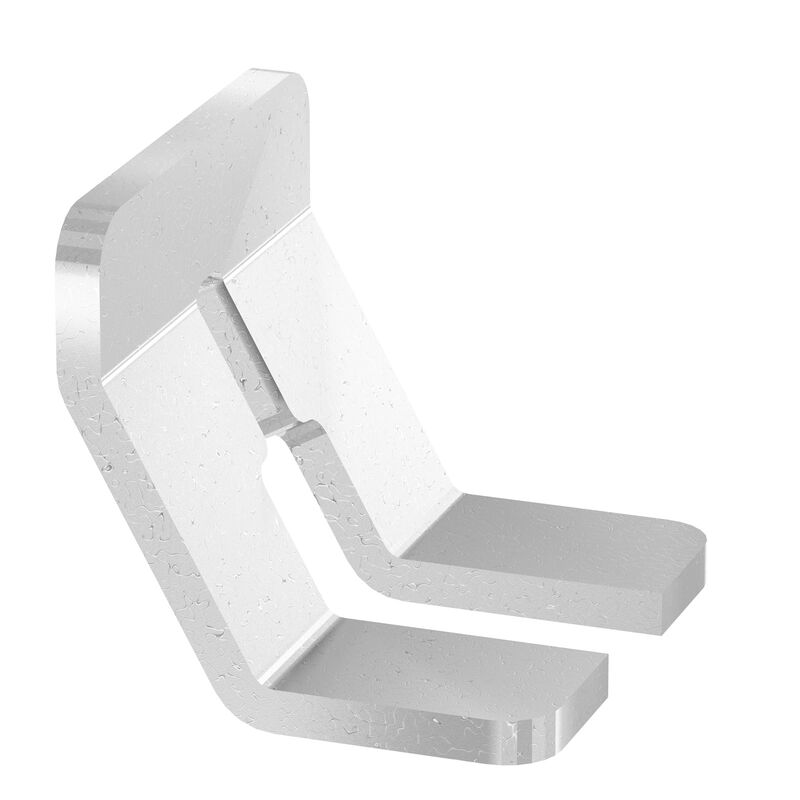

Product image

WQB-PEN 35

Cross-connector (terminal), when screwed in, Silver grey, 135 A, Number of poles: 2, Pitch in mm (P): 16.00, Insulated: No, Width: 24.6 mm

Produkt ID 1060100000
Download datablad Engineering-support Produktdownloads
Er tilbehør til 13 Anvendte produkter 43
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Materialdata System specifications dalsze dane techniczne Dimensions Allmänt Rating data Classifications

Approvals

ROHS
Conform

General ordering data

버전
Cross-connector (terminal), when screwed in, Silver grey, 135 A, Number of poles: 2, Pitch in mm (P): 16.00, Insulated: No, Width: 24.6 mm
주문 번호
1060100000
유형
WQB-PEN 35
GTIN (EAN)
4008190089870
Qty.
10 Styk

Dimensions and weights

깊이
2 mm
Depth (inches)
0.079 inch
높이
22 mm
Height (inches)
0.866 inch
너비
24.6 mm
Width (inches)
0.969 inch
Net weight
12 g

Temperatures

보관 온도
-25 °C...55 °C
주변 온도
-5 °C…40 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Materialdata

Basic material
tinned copper
Colour
Silver grey

System specifications

Version
Cross-connector

dalsze dane techniczne

Explosion-tested version
Nie
Installation advice
Непосредственный монтаж
Type of fixing
привинченный
Type of mounting
привинченный

Dimensions

Pitch in mm (P)
16 mm

Allmänt

극 수
2
설치 권고
Direktmontage

Rating data

Rated voltage
400 V
Nominal current
135 A

Classifications

ETIM 8.0
EC000489
ETIM 9.0
EC000489
ETIM 10.0
EC000489
ECLASS 14.0
27-25-03-03
ECLASS 15.0
27-25-03-03
