Egenskaber
| Version | Cross-connector (terminal), when screwed in, Silver grey, 192 A, Number of poles: 3, Pitch in mm (P): 20.50, Insulated: No, Width: 9.5 mm |
| Order No. | 9512250000 |

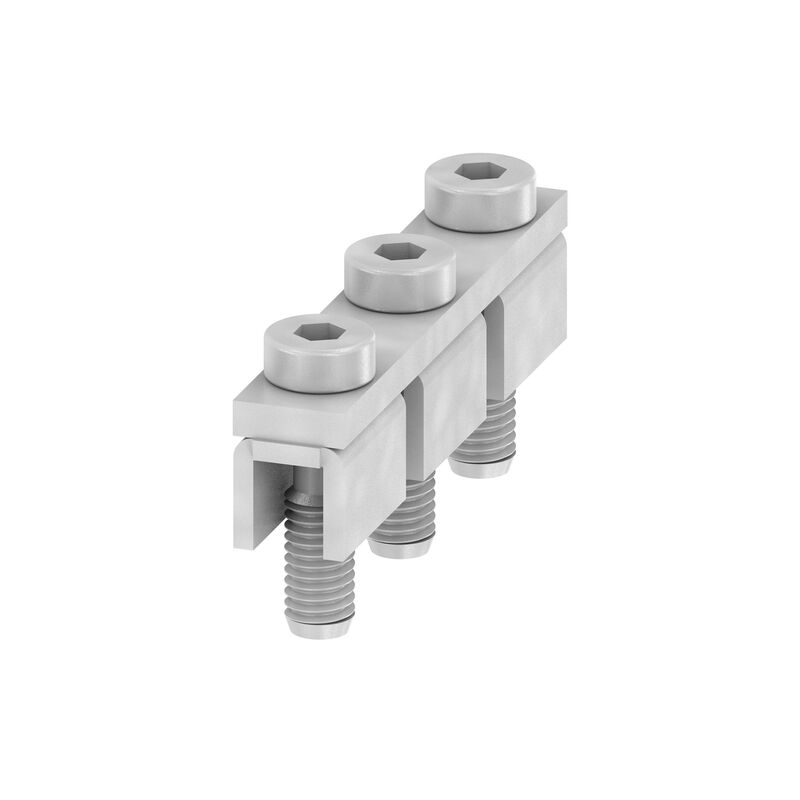

| Type | WQV 70N/3 |
| GTIN (EAN) | 4008190403935 |
| Qty. | 5 Styk |
| Depth | 18,6 mm |
| Depth (inches) | 0,732 inch |
| Height | 51 mm |
| Height (inches) | 2,008 inch |
| Width | 9,5 mm |
| Width (inches) | 0,374 inch |
| Net weight | 37,75 g |
| Storage temperature | -25 °C...55 °C |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Material | tinned copper |
| Colour | Silver grey |
| Version | For the terminals |
| Type of fixing | when screwed in |
| Number of cross-connected terminals | 3 |
| Rated current, multi-pole | 192 A |
| Type | Cross-connector |
| Pitch in mm (P) | 20,5 mm |
| Number of poles | 3 |
| Rated current | 192 A |
