Egenskaber

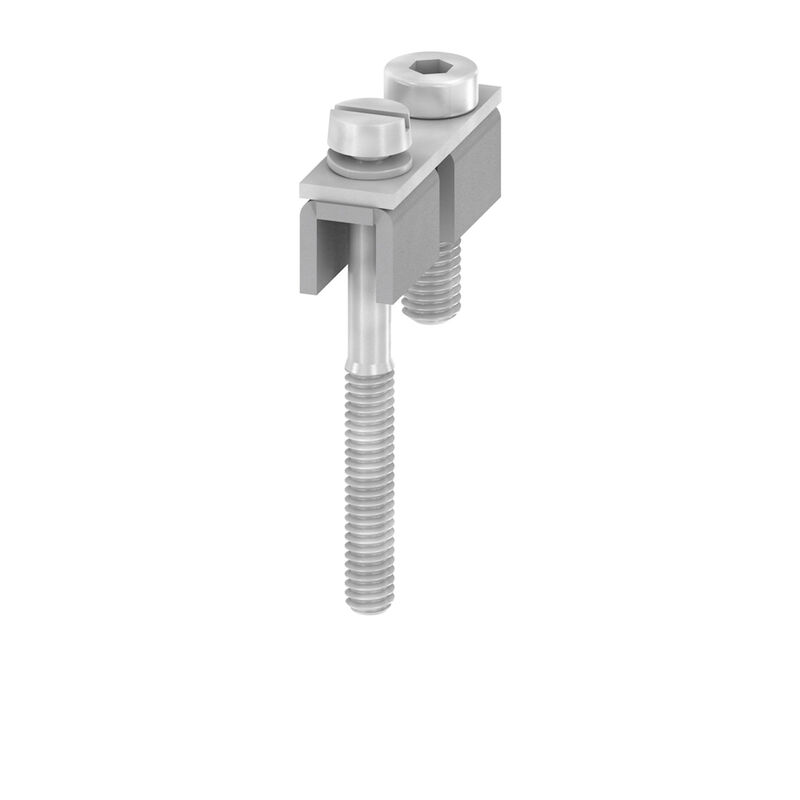

| Version | Cross-connector (terminal), when screwed in, Silver grey, 150 A, Number of poles: 2, Pitch in mm (P): 18.50, Insulated: No, Width: 9.5 mm |
| Order No. | 9201610000 |
| Type | WQV PEN 50N |
| GTIN (EAN) | 4032248561308 |
| Qty. | 5 Styk |
| Depth | 49,3 mm |
| Depth (inches) | 1,941 inch |
| Height | 28,5 mm |
| Height (inches) | 1,122 inch |
| Width | 9,5 mm |
| Width (inches) | 0,374 inch |
| Net weight | 33,59 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Material | tinned copper |
| Colour | Silver grey |
| UL 94 flammability rating | V-2 |
| Version | For the terminals |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Number of cross-connected terminals | 2 |
| Rated current, 2-pole | 150 A |
| Rated current, multi-pole | 150 A |
| Type | Cross-connector |
| Pitch in mm (P) | 18,5 mm |
| Installation advice | Direct mounting |
| Number of poles | 2 |
| Rated current | 150 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_236650) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9201610000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9201610000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=9201610000&norm=0) |
| User Documentation |
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
[Instruction](https://mdcop.weidmueller.com/mediadelivery/asset/900_97219) [User Manual WQV PEN](https://mdcop.weidmueller.com/mediadelivery/asset/900_229218) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ECLASS 14.0 | 27-25-03-03 |
| ROHS | Conform |
