Egenskaber

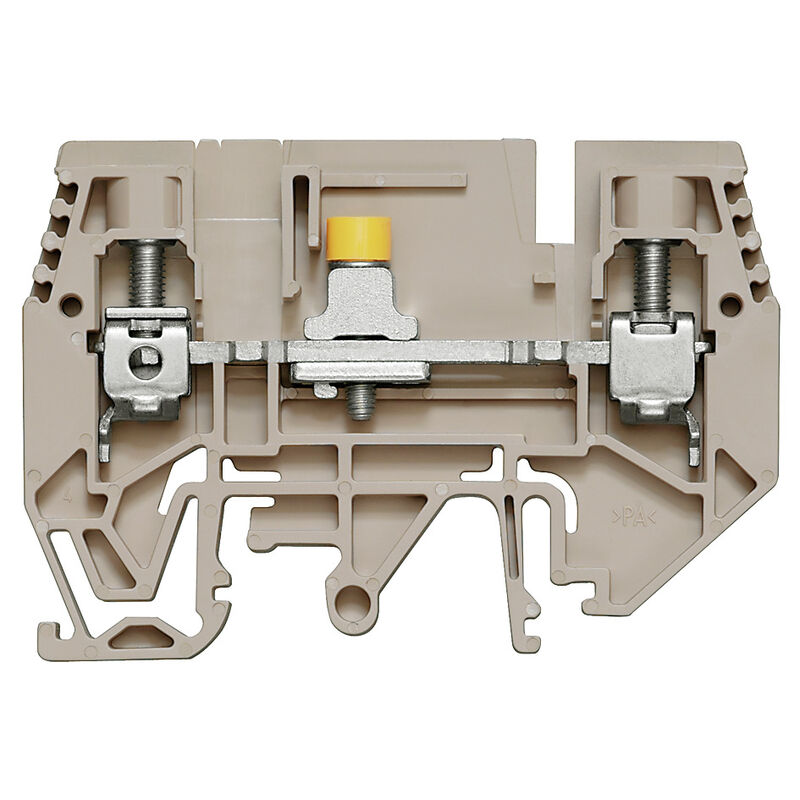

| Version | Measuring transformer disconnect terminal, Screw connection, 41, 2 |
| Order No. | 1934790000 |
| Type | WTQ 6/1 EN |
| GTIN (EAN) | 4032248592142 |
| Qty. | 50 Styk |
| Depth | 47,5 mm |
| Depth (inches) | 1,87 inch |
| Height | 65 mm |
| Height (inches) | 2,559 inch |
| Width | 7,9 mm |
| Width (inches) | 0,311 inch |
| Net weight | 20,927 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 0eb7d846-d0a1-43e5-93a4-d7c6856c4cda |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version |
Screw connection
Spacer for plug-in cross-connector One end without connector |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail |
TS 35
TS 32 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max. | 2,5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min. | 0,5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 0,5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 2,5 mm² |
| Explosion-tested version | No |
| Number of similar terminals | 1 |
| Open sides | closed |
| Type of mounting | Snap-on |
| Blade size | 0.8 x 4.0 mm |
| Clamping range, max. | 10 mm² |
| Clamping range, min. | 0,5 mm² |
| Clamping screw | M 3.5 |
| Connection cross-section, stranded, max. | 10 mm² |
| Connection cross-section, stranded, min. | 1,5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | A5 |
| Number of connections | 2 |
| Stripping length | 12 mm |
| Torque level with DMS electric screwdriver | 3 |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 20 |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 10 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Certificate No. (CSA) | 200039-1057876 |
| Current size B (CSA) | 45 A |
| Current size C (CSA) | 45 A |
| Voltage size B (CSA) | 300 V |
| Voltage size C (CSA) | 300 V |
| Wire cross section max. (CSA) | 8 AWG |
| Wire cross section min. (CSA) | 20 AWG |
| TS 35 offset | 34,5 mm |
| Cross-disconnect | sliding |
| Integral test socket | No |
| Slitting | without |
| Rail |
TS 35
TS 32 |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross section AWG, min. | AWG 20 |
| Rated cross-section | 6 mm² |
| Rated voltage | 500 V |
| Rated DC voltage | 500 V |
| Rated current | 41 A |
| Current at maximum wires | 57 A |
| Volume resistance according to IEC 60947-7-x | 0,78 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 1,31 W |
| Pollution severity | 3 |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 8 AWG |
| Conductor size Factory wiring min. (UR) | 20 AWG |
| Conductor size Field wiring max. (UR) | 8 AWG |
| Conductor size Field wiring min. (UR) | 20 AWG |
| Current size B (UR) | 45 A |
| Current size C (UR) | 45 A |
| Voltage size B (UR) | 300 V |
| Voltage size C (UR) | 300 V |
| Approval/Certificate/Document of Conformity |
[CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37252)
[UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284528) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65026) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1934790000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1934790000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1934790000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 7.0 | EC000902 |
| ETIM 8.0 | EC000902 |
| ETIM 9.0 | EC000902 |
| ECLASS 11.0 | 27-14-11-26 |
| ECLASS 12.0 | 27-14-11-26 |
| ECLASS 13.0 | 27-25-01-09 |
| ECLASS 14.0 | 27-25-01-09 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E60693 |
