WTR 35 E

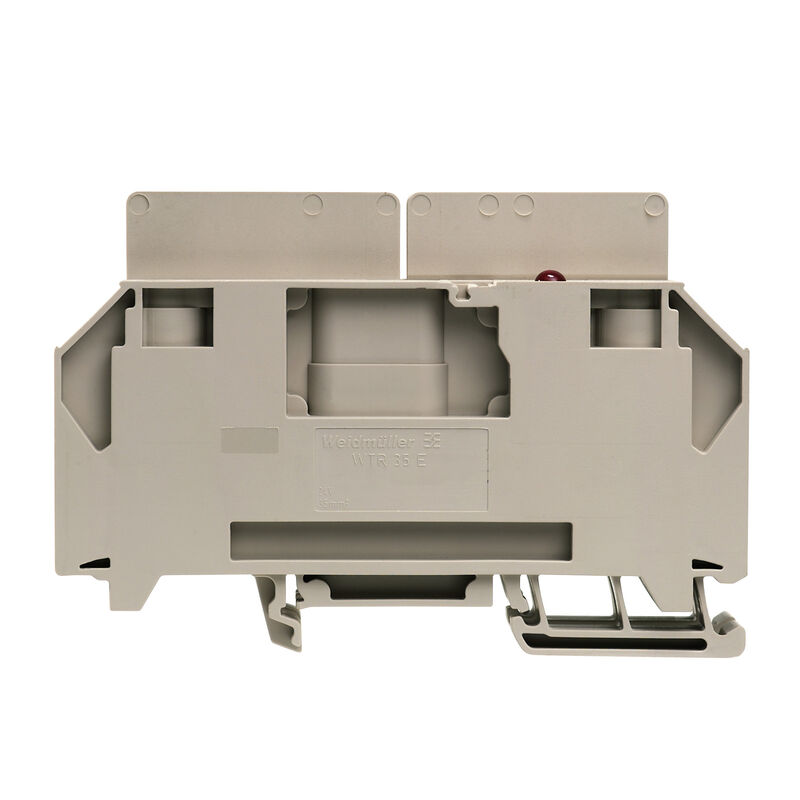

Test-disconnect terminal, Screw connection, dark beige, 35 mm², 125 A, 24 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Produkt ID 1045970000

Version	Test-disconnect terminal, Screw connection, dark beige, 35 mm², 125 A, 24 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
Order No.	1045970000
Type	WTR 35 E
GTIN (EAN)	4032248784950
Qty.	5 Styk

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Version	Screw connection Spacer with LED in closed state
End cover plate required	No
Number of potentials	1
Number of levels	1
Number of clamping points per level	4
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

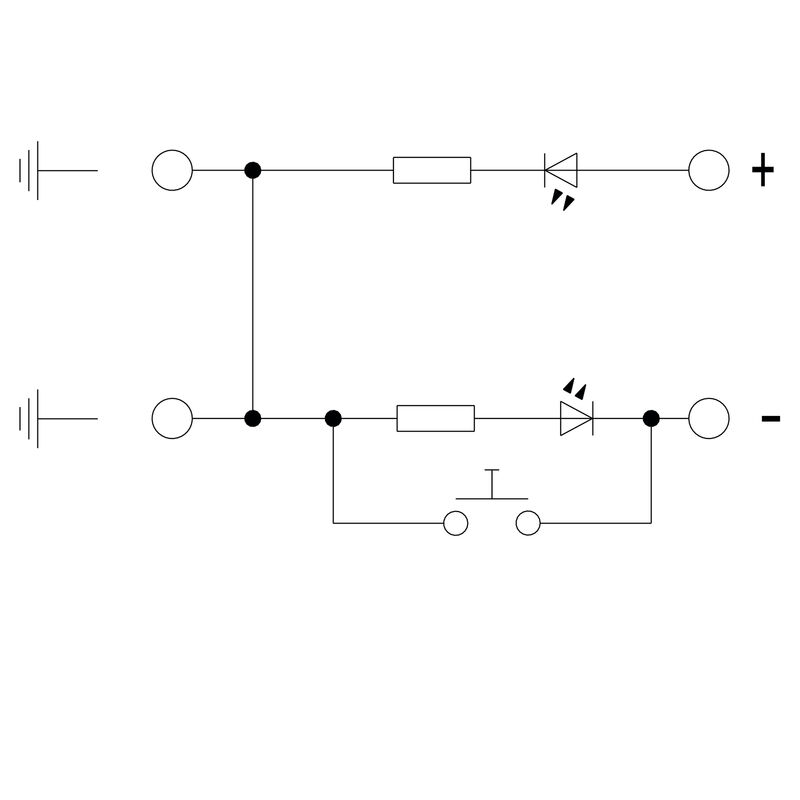

Electronic component	red LED Green LED
Type of mounting	Snap-on

Connection type, additional connection

Screw connection

Blade size	1.2 x 6.5 mm
Clamping range, max.	35 mm²
Clamping range, min.	4 mm²
Clamping screw	M 6
Connection cross-section, stranded, max.	35 mm²
Connection cross-section, stranded, min.	10 mm²
Connection direction	on side
Gauge to IEC 60947-1	B9
Number of connections	2
Stripping length	18 mm
Tightening torque, min.	4 Nm
Type of connection	Screw connection
Type of connection 2	Screw connection
Wire connection cross section AWG, max.	AWG 2
Wire connection cross section AWG, min.	AWG 12
Wire connection cross section, finely stranded, max.	35 mm²
Wire connection cross section, finely stranded, min.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	35 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	35 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	4 mm²
Wire connection cross-section, solid core, max.	16 mm²
Wire connection cross-section, solid core, min.	4 mm²

TS 35 offset

50 mm

Rail	TS 35
Wire connection cross section AWG, max.	AWG 2
Wire connection cross section AWG, min.	AWG 12

Rated cross-section	35 mm²
Rated voltage	24 V
Rated DC voltage	24 V
Rated current	125 A
Current at maximum wires	125 A
Volume resistance according to IEC 60947-7-x	0,26 mΩ
Rated impulse withstand voltage	0.8 kV
Power loss in accordance with IEC 60947-7-x	4 W
Pollution severity	3
