Egenskaber
| Version | Terminal (busbar connection) |
| Order No. | 1814670000 |

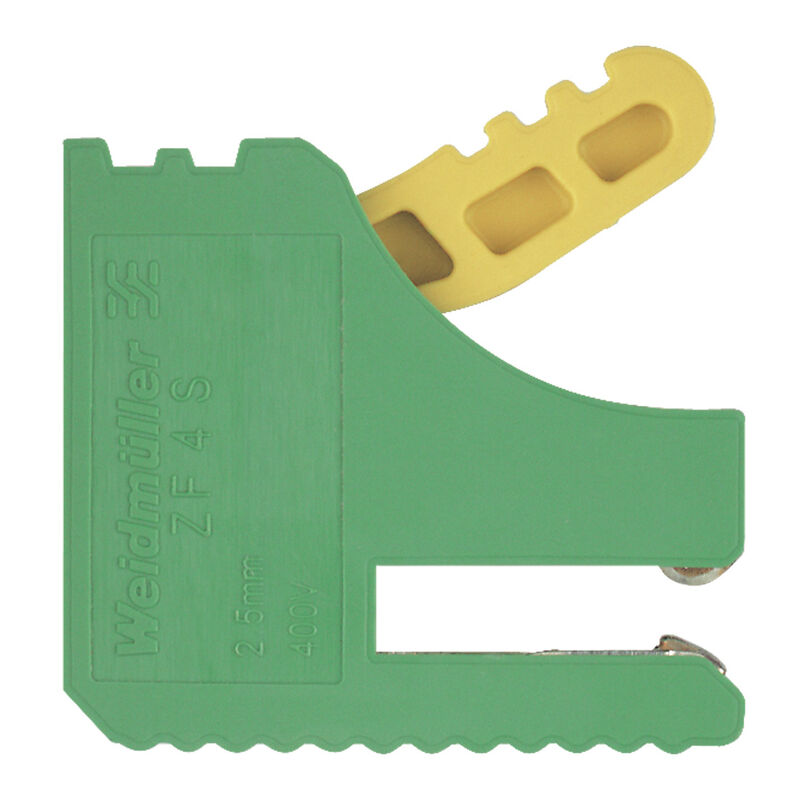

| Type | ZF 4 S GN |
| GTIN (EAN) | 4032248302963 |
| Qty. | 50 Styk |
| Depth | 22 mm |
| Depth (inches) | 0,866 inch |
| Height | 24,5 mm |
| Height (inches) | 0,965 inch |
| Width | 6,1 mm |
| Width (inches) | 0,24 inch |
| Net weight | 3,98 g |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Insulating material | Wemid |
| Colour | green |
| UL 94 flammability rating | V-0 |
| Version | for busbar 10 x 3 mm |
| End cover plate required | No |
| Number of levels | 1 |
| Number of clamping points per level | 1 |
| Installation advice |
Direct mounting
Busbar |
| Type of mounting | Plugged |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 0,5 mm² |
| Connection direction | on side |
| Number of connections | 1 |
| Stripping length | 10 mm |
| Type of connection | Tension-clamp connection |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| TS 35 offset | 39,5 mm |
| Installation advice |
Direct mounting
Busbar |
| Operating temperature range, max. | 120 °C |
| Standards | IEC 60947-7-1 |
| Rated cross-section | 2,5 mm² |
| Rated voltage | 400 V |
| Rated current | 24 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 1,33 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 0,77 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_64078) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1814670000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1814670000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000001 |
| ETIM 7.0 | EC000001 |
| ETIM 8.0 | EC000001 |
| ETIM 9.0 | EC000001 |
| ECLASS 9.0 | 27-14-11-46 |
| ECLASS 9.1 | 27-14-11-46 |
| ECLASS 10.0 | 27-14-11-46 |
| ECLASS 11.0 | 27-14-11-46 |
| ECLASS 12.0 | 27-14-11-46 |
| ECLASS 13.0 | 27-25-01-16 |
| ECLASS 14.0 | 27-25-01-16 |
| Approvals |  |
| ROHS | Conform |
