Egenskaber
| Version | Cross-connector (terminal), Plugged, orange, 24 A, Number of poles: 10, Pitch in mm (P): 5.10, Insulated: Yes, Width: 48.7 mm |
| Order No. | 1527690000 |

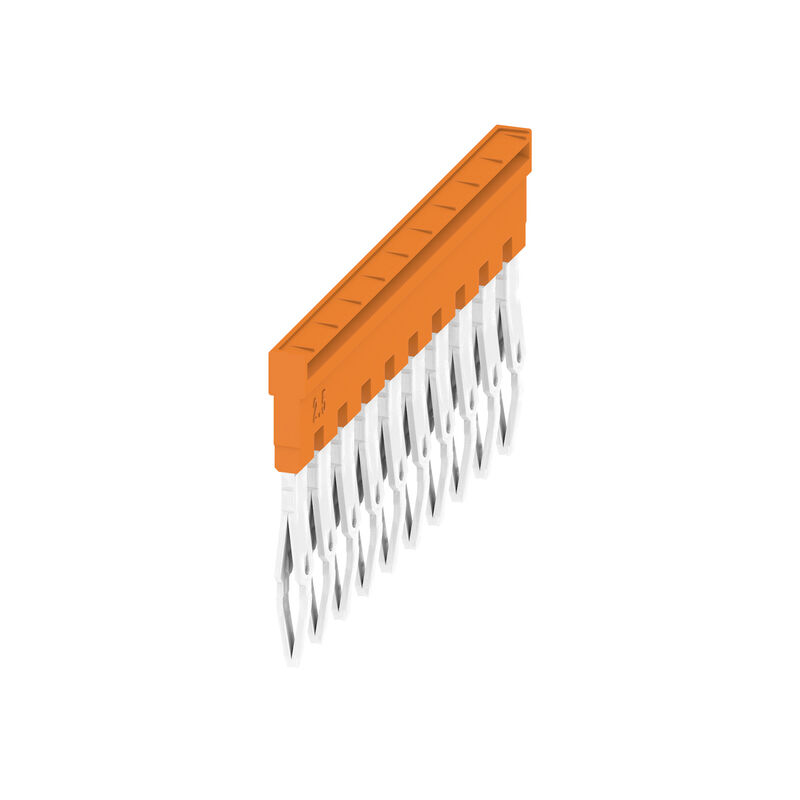

| Type | ZQV 2.5N/10 |
| GTIN (EAN) | 4050118447989 |
| Qty. | 20 Styk |
| Depth | 24,7 mm |
| Depth (inches) | 0,972 inch |
| Height | 2,8 mm |
| Height (inches) | 0,11 inch |
| Width | 48,7 mm |
| Width (inches) | 1,917 inch |
| Net weight | 5,85 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | orange |
| UL 94 flammability rating | V-0 |
| Explosion-tested version | Yes |
| Type of fixing | Plugged |
| Type of mounting | Direct mounting |
| Pitch in mm (P) | 5,1 mm |
| Number of poles | 10 |
| Rated voltage | 400 V |
| Rated current | 24 A |
| Product information | Due to stability and temperature reasons It is only possible to break out 60% of contact elements The usage of cross connectors reduces the rated voltage to 400VThe voltage reduced to 25V if cut cross connection with blank cut edges are used |
