Egenskaber

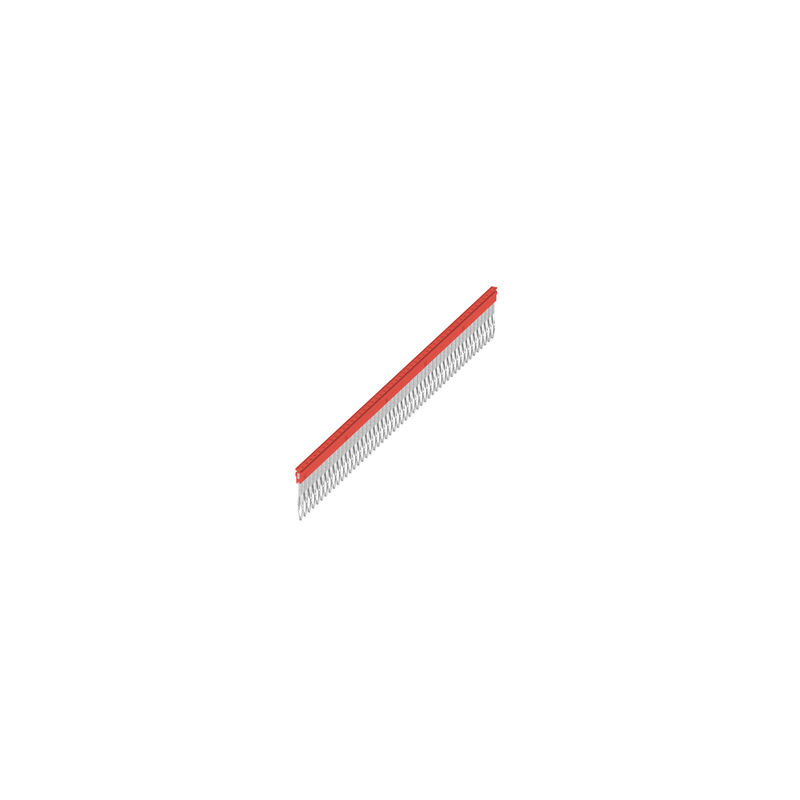

| Version | Cross-connector (terminal), Plugged, red, 24 A, Number of poles: 50, Pitch in mm (P): 5.10, Insulated: Yes, Width: 255 mm |
| Order No. | 2109000000 |
| Type | ZQV 2.5N/50 RD |
| GTIN (EAN) | 4050118486001 |
| Qty. | 5 Styk |
| Depth | 24,7 mm |
| Depth (inches) | 0,972 inch |
| Height | 2,8 mm |
| Height (inches) | 0,11 inch |
| Width | 255 mm |
| Width (inches) | 10,039 inch |
| Net weight | 29,91 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | red |
| UL 94 flammability rating | V-0 |
| Explosion-tested version | No |
| Type of fixing | Plugged |
| Type of mounting | Direct mounting |
| Pitch in mm (P) | 5,1 mm |
| Number of poles | 50 |
| Rated voltage | 400 V |
| Rated current | 24 A |
| Product information | Due to stability and temperature reasons It is only possible to break out 60% of contact elements The usage of cross connectors reduces the rated voltage to 400VThe voltage reduced to 25V if cut cross connection with blank cut edges are used |
