ZQV 2.5N/8 RD

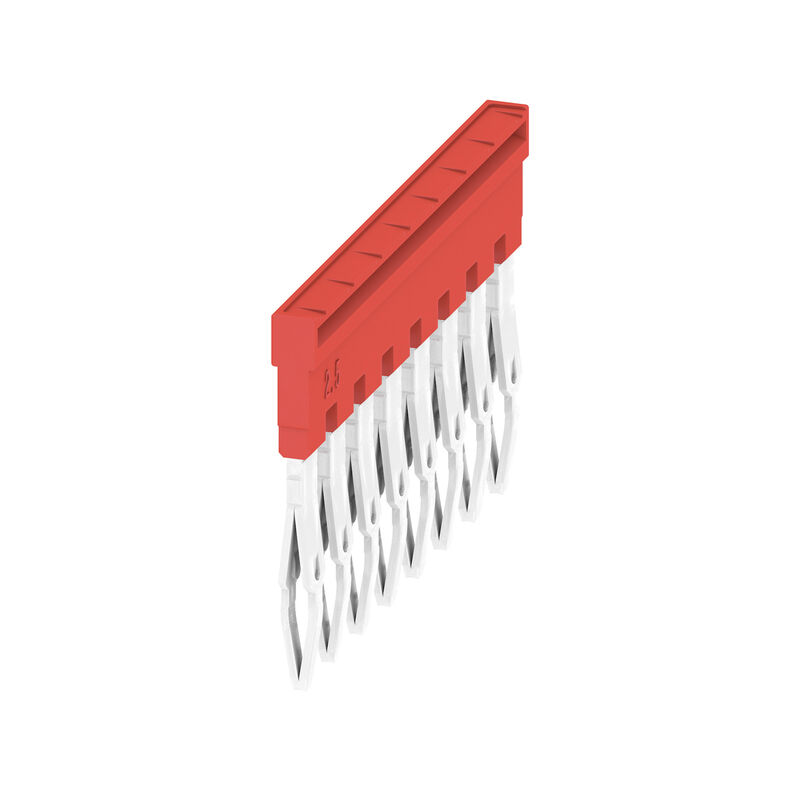

Product image

ZQV 2.5N/8 RD

Cross-connector (terminal), Plugged, red, 24 A, Number of poles: 8, Pitch in mm (P): 5.10, Insulated: Yes, Width: 38.5 mm

Tuotteen tunnus 2108870000
Lataa tietosivu Tekninen tuki Tuotelataukset
On lisävaruste 451 Samankaltaiset tuotteet 458
Tanúsítványok General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Additional technical data Dimensions General Bemessungsdaten Important note Classifications

Tanúsítványok

ROHS
Megfelel

General ordering data

Version
Cross-connector (terminal), Plugged, red, 24 A, Number of poles: 8, Pitch in mm (P): 5.10, Insulated: Yes, Width: 38.5 mm
Order No.
2108870000
Type
ZQV 2.5N/8 RD
GTIN (EAN)
4050118448481
Qty.
20 items

Dimensions and weights

Depth
24,7 mm
Depth (inches)
0,972 inch
Height
2,8 mm
Height (inches)
0,11 inch
Width
38,5 mm
Ширина (в дюймах)
1,516 inch
Net weight
4,64 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-60 °C…85 °C
Температура при длительном использовании, мин.
−60 °C
Varaktig driftstemperatur, max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Pas de SVHC au-dessus de 0,1 % en poids
Product Carbon Footprint
  • Cradle to gate:
    0.171 kg CO2 eq.

Material data

Basic material
Wemid
Colour
красный
UL 94 flammability rating
V-0

Additional technical data

Explosion-tested version
Yes
Type of fixing
Plugged
Type of mounting
Direct mounting

Dimensions

Pitch in mm (P)
5,1 mm

General

Number of poles
8

Bemessungsdaten

Rated voltage
400 V
Nominal current
24 A

Important note

Product information
Due to stability and temperature reasons It is only possible to break out 60% of contact elements. The usage of cross connectors reduces the rated voltage to 400 V.The voltage reduced to 25 V if cut cross connection with blank cut edges are used.

Classifications

ETIM 8.0
EC000489
ETIM 9.0
EC000489
ETIM 10.0
EC000489
ECLASS 14.0
27-25-03-03
ECLASS 15.0
27-25-03-03
