Egenskaber
| Version | HDC enclosures, Size: 8, Protection degree: IP66 (in plugged condition), IP68 (in plugged condition), Plug housing, Clamping yoke connection, Standard, Size of cable entries: M 32 |
| Order No. | 1082860000 |
| Type | HDC IP68 24B TOS 1M32 |
| GTIN (EAN) | 4032248846177 |
| Qty. | 1 Styk |

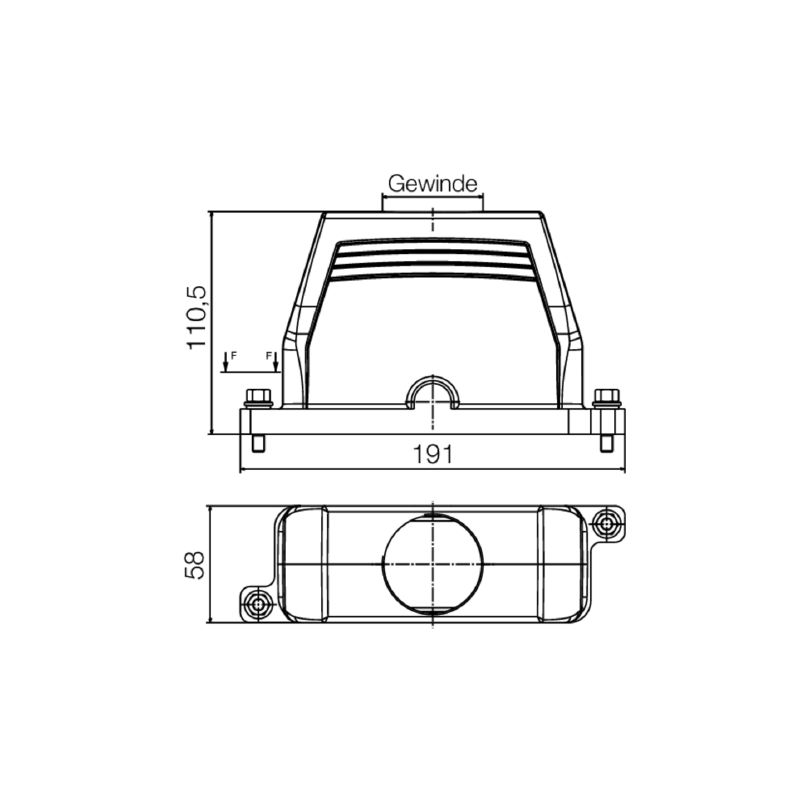

| Height | 110,5 mm |
| Height (inches) | 4,35 inch |
| Width | 58 mm |
| Width (inches) | 2,283 inch |
| Net weight | 578,16 g |
| Limit temperature | -50 °C ... 125 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Chemical resistance |
|
| Cable entry | w. thread |
| Height of housing B | 110,5 mm |
| Total length housing | 191 mm |
| EMC housings | Yes |
| Housing main material | diecast aluminium |
| Material of locking element | Stainless steel, rust-proof |
| Protection degree |
IP66 (in plugged condition)
IP68 (in plugged condition) |
| Surface finish | Powder coating |
| Tightening torque | 6,5 Nm |
| BG | 8 |
| Cable entry | w. thread |
| Clamp version | Clamping yoke connection |
| Colour (RAL) |
RAL 9011
RAL 9005 |
| Design | Standard |
| Design of housing | Plug housing |
| Design of locking system | Clamping yoke connection |
| Internal thread | M 32 |
| Number of cable entry on top | 1 |
| Number of cable entry sideways | 0 |
| Size | 8 |
| Size of cable entries | M 32 |
| Suitable for ModuPlug® | Yes |
| Tightening torque | 6,5 Nm |
| Top part/bottom part/lid | upper part |
| Type | Plug |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_79382) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1082860000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1082860000) |
| Product Change Notification |
[20220214 Technical change to HDC housings](https://mdcop.weidmueller.com/mediadelivery/asset/900_252005)
[20220214 Technische Änderung bei HDC-Gehäusen](https://mdcop.weidmueller.com/mediadelivery/asset/900_252006) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC000437 |
| ETIM 8.0 | EC000437 |
| ETIM 9.0 | EC000437 |
| ECLASS 9.0 | 27-44-02-02 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-02 |
| ECLASS 11.0 | 27-44-02-02 |
| ECLASS 12.0 | 27-44-02-02 |
| ECLASS 13.0 | 27-44-02-02 |
| ECLASS 14.0 | 27-44-02-02 |
| Approvals |   |
| ROHS | Conform |
