Eigenschaften
| Ausfuehrung | Anschlussdose, FreeCon, SCRJ, Kupplung, IP65 |
| Best.-Nr. | 1318150000 |
| Art | IE-CD-V14MSCRJ-MM-C-MA |
| GTIN (EAN) | 4050118123982 |
| VPE | 1 Stück |

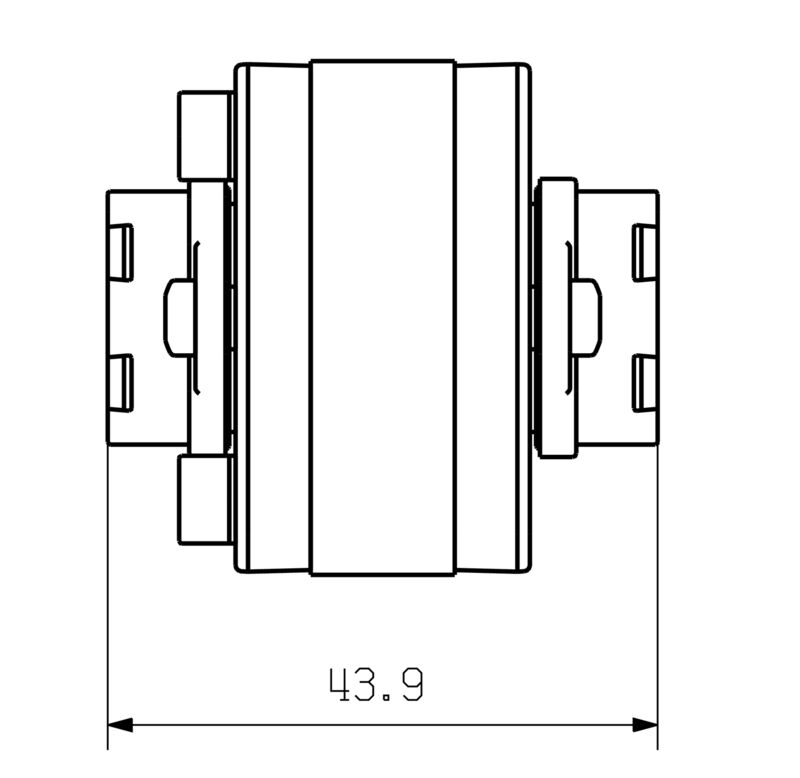

| Tiefe | 43,9 mm |
| Tiefe (inch) | 1,728 inch |

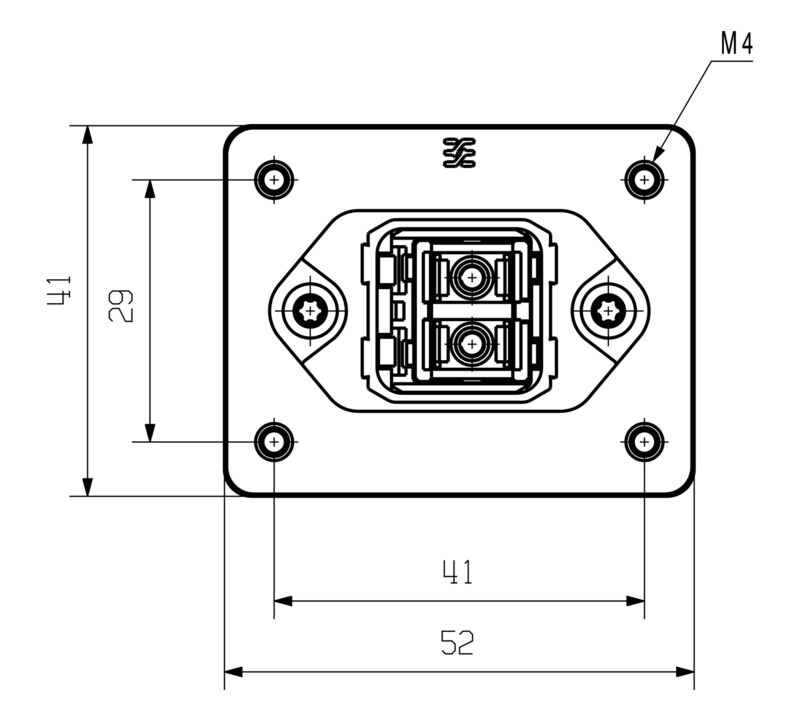

| Höhe | 52 mm |
| Höhe (inch) | 2,047 inch |
| Breite | 41 mm |
| Breite (inch) | 1,614 inch |
| Nettogewicht | 224,56 g |
| Betriebstemperatur | -40 °C...70 °C |
| RoHS-Konformitätsstatus | Konform ohne Ausnahme |
| REACH SVHC | No SVHC above 0.1 wt% |
| Farbe | silber |
| Gehäusebasismaterial |
Alu-Profil
Deckel: Zinkdruckguss, lackiert |

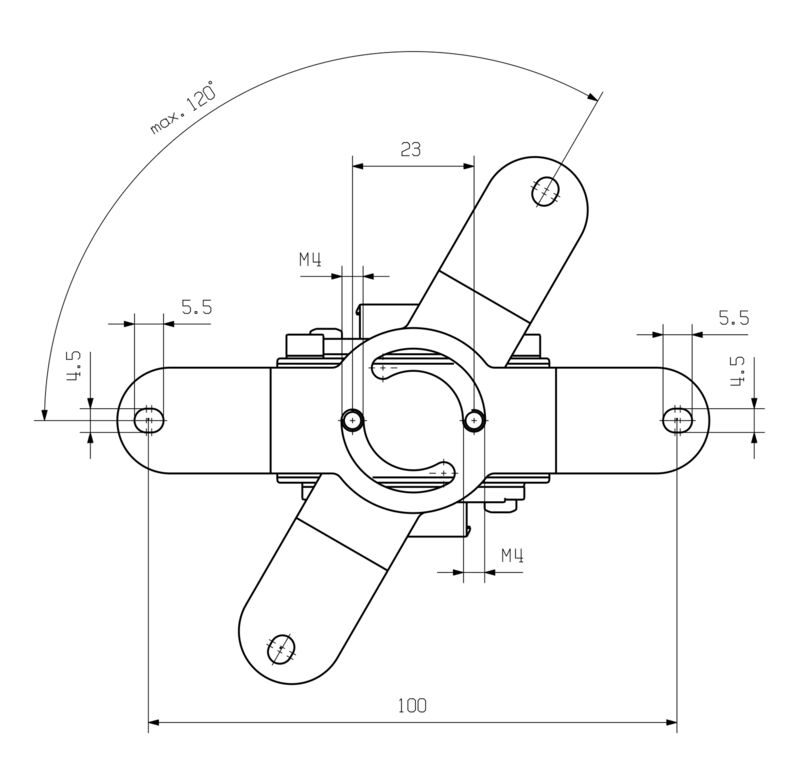

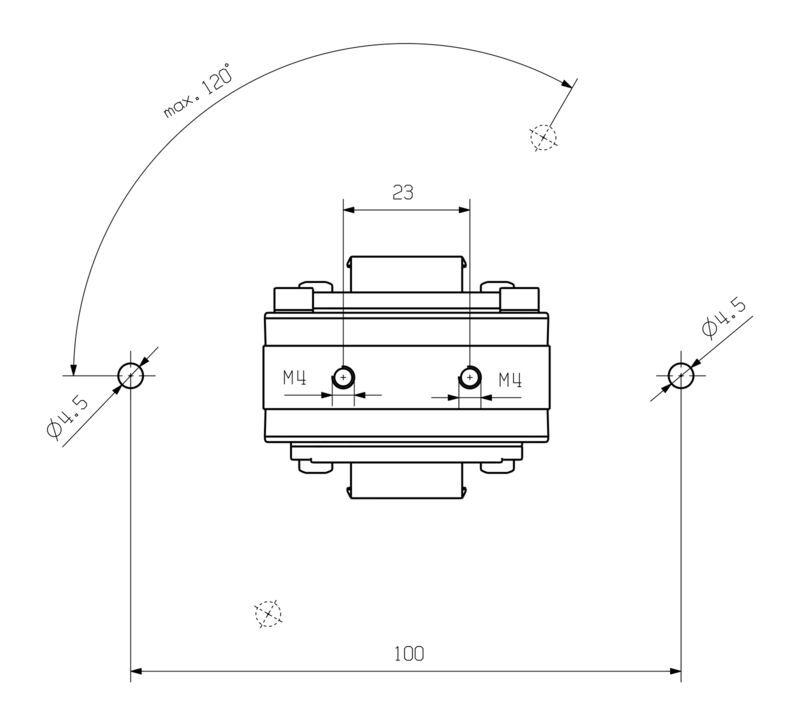

| Montageart | Schraubmontage |
| Schutzart | IP65 |
| Steckverbinder Norm |
IEC 61076-3-117 Var. 14
IEC 61754-24 |
| Zertifikat-Nr. (cULus) | E316369 |
| Einfügungsdämpfung | < 0,2 dB |
| Zulassung / Zertifikat / Konformitätsdokument | [PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
| Engineering-Daten | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_318193) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1318150000) |
| Anwenderdokumentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Kataloge | [Catalogues in PDF-format](LINK/Catalog.html) |
| Broschüren |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 7.0 | EC002597 |
| ETIM 8.0 | EC002597 |
| ETIM 9.0 | EC002597 |
| ECLASS 9.1 | 27-44-03-18 |
| ECLASS 10.0 | 27-44-03-18 |
| ECLASS 11.0 | 27-44-03-18 |
| ECLASS 12.0 | 27-44-03-18 |
| ECLASS 13.0 | 27-44-03-18 |
| ECLASS 14.0 | 27-44-03-18 |
| Zulassungen |  |
| ROHS | Konform |
| UL File Number Search | [UL Webseite](LINK/UL_search.html) |
| Zertifikat-Nr. (cULus) | E316369 |
